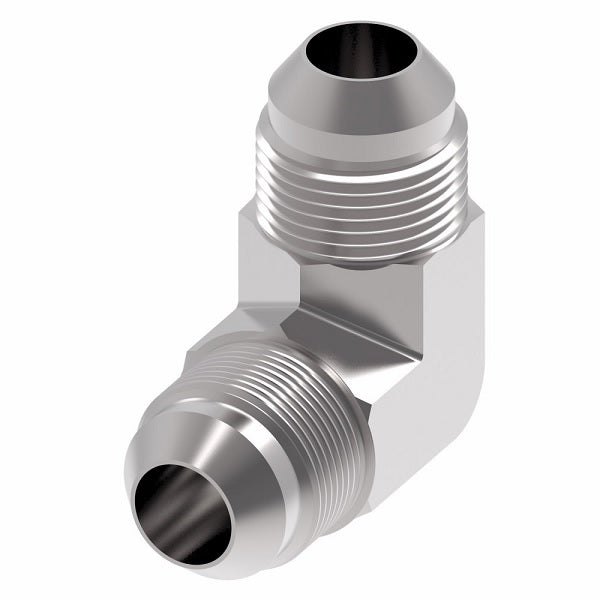

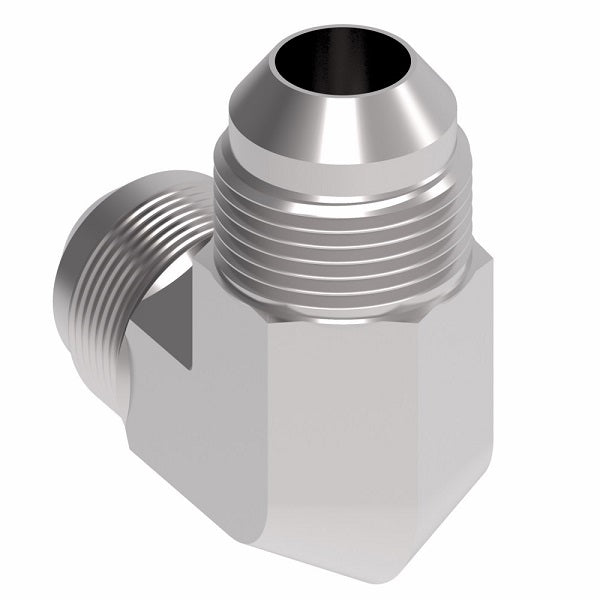

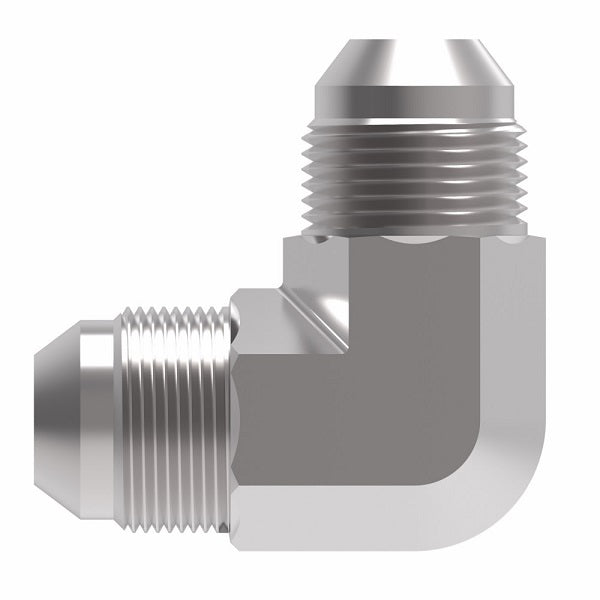

2039-16-16S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare | Steel

2039-16-16S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare | Steel

Name: 2039-16-16S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 2039-16-16S Danfoss
Price: 19.99 USD
Availability: InStock

$19.99 - $19.99

$19.99

$19.99 - $19.99

$19.99

Aeroquip® by Danfoss
Male 37° JIC Flare Adapter
Male 37° JIC Flare x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2039-16-16S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1in Male JIC, 1in Male JIC
Material(s):	Steel

Specifications:
Ref. SAE 070201


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
2039-4-4S	0.25"	7/16-20	7/16-20	0.89"	0.89"
2039-5-5S	0.31"	1/2-20	1/2-20	0.95"	0.95"
2039-6-6S	0.38"	9/16-18	9/16-18	1.06"	1.06"
2039-8-6S	0.38"	3/4-16	9/16-16	1.25"	1.14"
2039-8-8S	0.50"	3/4-16	3/4-16	1.25"	1.25"
2039-10-10S	0.63"	7/8-14	7/8-14	1.45"	1.45"
2039-12-12S	0.75"	1-1/16-12	1-1/16-12	1.66"	1.66"
2039-16-12S	0.75"	1-5/16-12	1-1/16-12	1.81"	1.76"
2039-16-16S	1.00"	1-5/16-12	1-5/16-12	1.81"	1.81"
2039-20-20S	1.25"	1-5/8-12	1-5/8-12	2.06"	2.06"
2039-24-24S	1.50"	1-7/8-12	1-7/8-12	2.33"	2.33"
2039-32-32S	2.00"	2-1/2-12	2-1/2-12	3.06"	3.06"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
