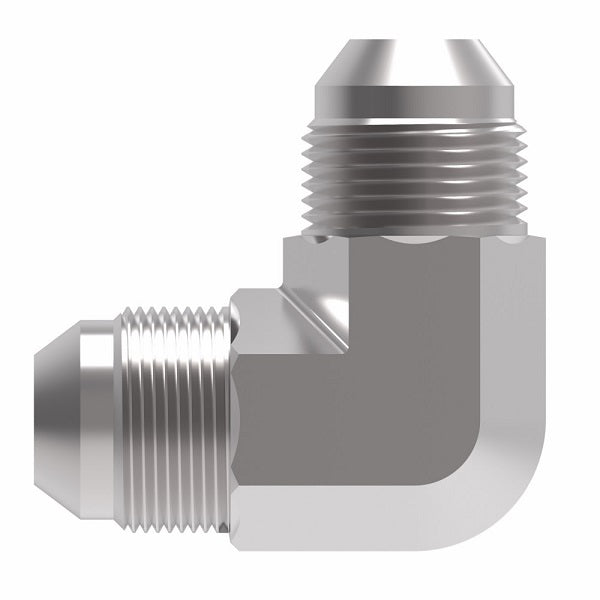

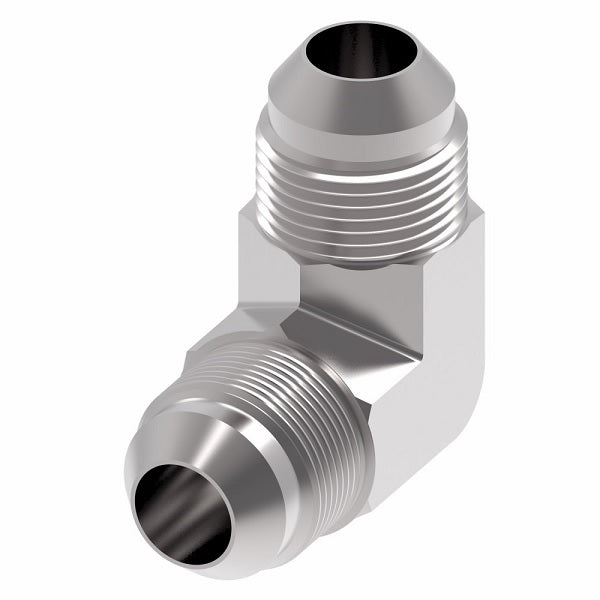

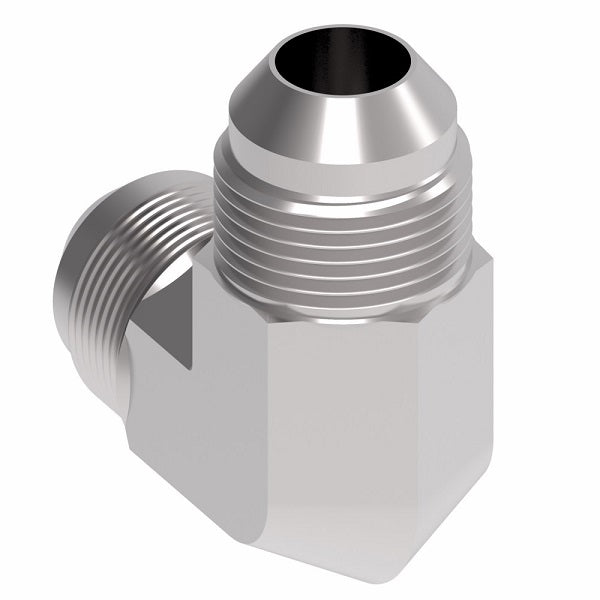

2039-5-5S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -05 Male 37° JIC Flare x -05 Male 37° JIC Flare | Steel
2039-5-5S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -05 Male 37° JIC Flare x -05 Male 37° JIC Flare | Steel
2039-5-5S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -05 Male 37° JIC Flare x -05 Male 37° JIC Flare | Steel
2039-5-5S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -05 Male 37° JIC Flare x -05 Male 37° JIC Flare | Steel

2039-5-5S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -05 Male 37° JIC Flare x -05 Male 37° JIC Flare | Steel

$16.26 - $16.26
$16.26
$16.26 - $16.26
$16.26

Aeroquip® by Danfoss
Male 37° JIC Flare Adapter
Male 37° JIC Flare x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2039-5-5S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/16in Male JIC, 5/16in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070201
Part Number
Steel 		Tube O.D. Thread T1 Thread T2 A B
2039-4-4S 0.25" 7/16-20 7/16-20 0.89" 0.89"
2039-5-5S 0.31" 1/2-20 1/2-20 0.95" 0.95"
2039-6-6S 0.38" 9/16-18 9/16-18 1.06" 1.06"
2039-8-6S 0.38" 3/4-16 9/16-16 1.25" 1.14"
2039-8-8S 0.50" 3/4-16 3/4-16 1.25" 1.25"
2039-10-10S 0.63" 7/8-14 7/8-14 1.45" 1.45"
2039-12-12S 0.75" 1-1/16-12 1-1/16-12 1.66" 1.66"
2039-16-12S 0.75" 1-5/16-12 1-1/16-12 1.81" 1.76"
2039-16-16S 1.00" 1-5/16-12 1-5/16-12 1.81" 1.81"
2039-20-20S 1.25" 1-5/8-12 1-5/8-12 2.06" 2.06"
2039-24-24S 1.50" 1-7/8-12 1-7/8-12 2.33" 2.33"
2039-32-32S 2.00" 2-1/2-12 2-1/2-12 3.06" 3.06"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
