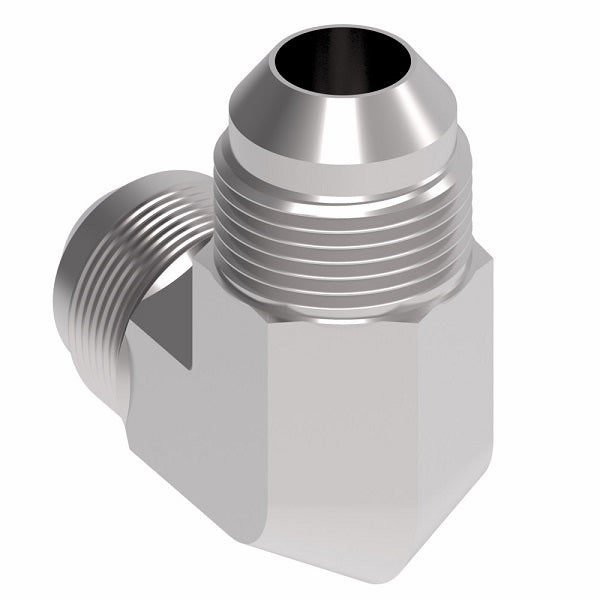

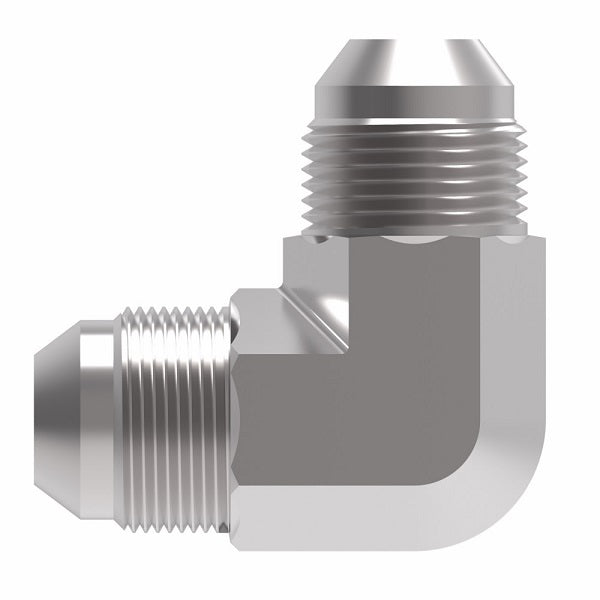

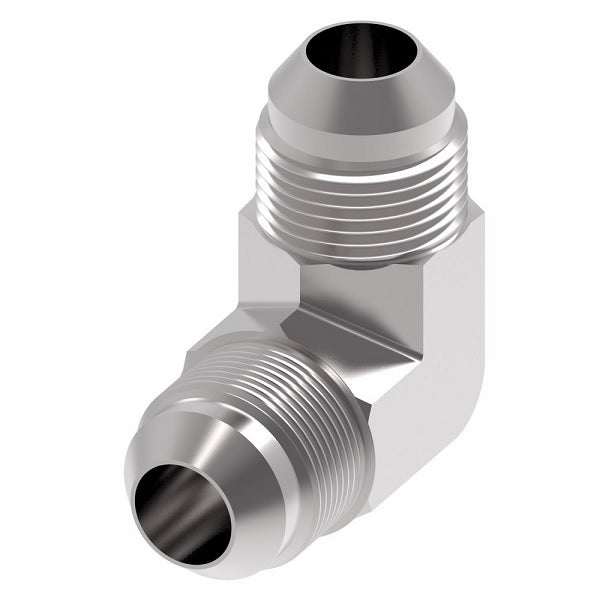

2039-24-24S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -24 Male 37° JIC Flare x -24 Male 37° JIC Flare | Steel

2039-24-24S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -24 Male 37° JIC Flare x -24 Male 37° JIC Flare | Steel

Name: 2039-24-24S Aeroquip by Danfoss | Male 37° JIC Flare/ Male 37° JIC Flare 90° Elbow Adapter | -24 Male 37° JIC Flare x -24 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 2039-24-24S Danfoss
Price: 68.29 USD
Availability: InStock

$68.29 - $68.29

$68.29

$68.29 - $68.29

$68.29

Aeroquip® by Danfoss
Male 37° JIC Flare Adapter
Male 37° JIC Flare x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2039-24-24S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Male JIC, 1-1/2in Male JIC
Material(s):	Steel

Specifications:
Ref. SAE 070201


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
2039-4-4S	0.25"	7/16-20	7/16-20	0.89"	0.89"
2039-5-5S	0.31"	1/2-20	1/2-20	0.95"	0.95"
2039-6-6S	0.38"	9/16-18	9/16-18	1.06"	1.06"
2039-8-6S	0.38"	3/4-16	9/16-16	1.25"	1.14"
2039-8-8S	0.50"	3/4-16	3/4-16	1.25"	1.25"
2039-10-10S	0.63"	7/8-14	7/8-14	1.45"	1.45"
2039-12-12S	0.75"	1-1/16-12	1-1/16-12	1.66"	1.66"
2039-16-12S	0.75"	1-5/16-12	1-1/16-12	1.81"	1.76"
2039-16-16S	1.00"	1-5/16-12	1-5/16-12	1.81"	1.81"
2039-20-20S	1.25"	1-5/8-12	1-5/8-12	2.06"	2.06"
2039-24-24S	1.50"	1-7/8-12	1-7/8-12	2.33"	2.33"
2039-32-32S	2.00"	2-1/2-12	2-1/2-12	3.06"	3.06"
