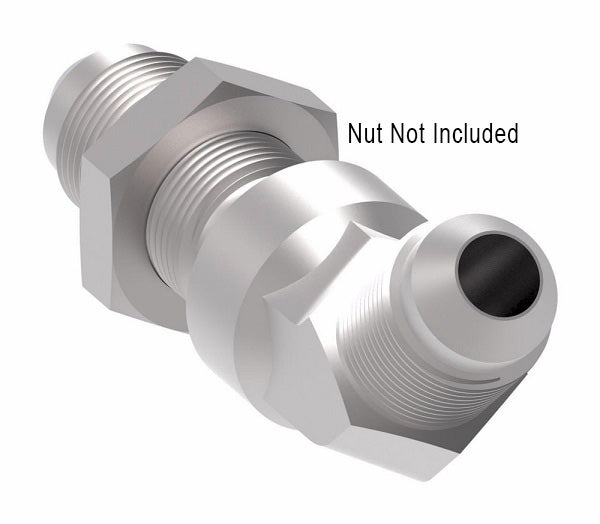

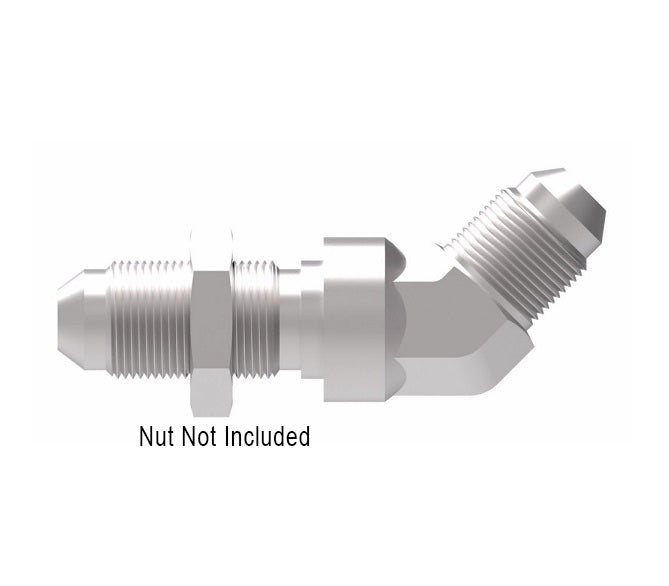

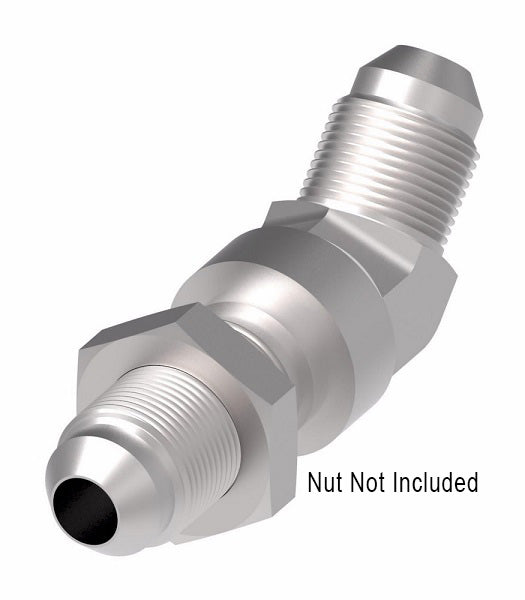

2042-1-4-4S Aeroquip by Danfoss | 37° Flare Bulkhead/37° Flare 45° Elbow Adapter (without Nut) | -04 Male 37° JIC Flare Bulkhead x -04 Male 37° JIC Flare | Steel
2042-1-4-4S Aeroquip by Danfoss | 37° Flare Bulkhead/37° Flare 45° Elbow Adapter (without Nut) | -04 Male 37° JIC Flare Bulkhead x -04 Male 37° JIC Flare | Steel
2042-1-4-4S Aeroquip by Danfoss | 37° Flare Bulkhead/37° Flare 45° Elbow Adapter (without Nut) | -04 Male 37° JIC Flare Bulkhead x -04 Male 37° JIC Flare | Steel
2042-1-4-4S Aeroquip by Danfoss | 37° Flare Bulkhead/37° Flare 45° Elbow Adapter (without Nut) | -04 Male 37° JIC Flare Bulkhead x -04 Male 37° JIC Flare | Steel

2042-1-4-4S Aeroquip by Danfoss | 37° Flare Bulkhead/37° Flare 45° Elbow Adapter (without Nut) | -04 Male 37° JIC Flare Bulkhead x -04 Male 37° JIC Flare | Steel

$9.34 - $9.34
$9.34
$9.34 - $9.34
$9.34

Aeroquip® by Danfoss
37° Flare Bulkhead/37° Flare Adapter
Male 37° JIC Flare Bulkhead x Male 37° JIC Flare
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2042-1-4-4S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Male JIC, 1/4in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070801
Part Number
Steel		 Part Number
Steel
without Nut		 Tube O.D. Thread T1 Thread T2 A B
2042-4-4S 2042-1-4-4S 0.25" 7/16-20 7/16-20 1.53" 0.72"
2042-5-5S 2042-1-5-5S 0.31" 1/2-20 1/2-20 1.66" 0.77"
2042-6-6S 2042-1-6-6S 0.38" 9/16-18 9/16-18 1.67" 0.83"
2042-8-8S 2042-1-8-8S 0.50" 3/4-16 3/4-16 1.94" 0.98"
2042-10-10S 2042-1-10-10S 0.63" 7/8-14 7/8-14 2.17" 1.11"
2042-12-12S 2042-1-12-12S 0.75" 1-1/16-12 1-1/16-12 - -
2042-16-16S - 1.00" 1-5/16-12 1-5/16-12 - -
2042-20-20S - 1.25" 1-5/8-12 1-5/8-12 2.53" 1.69"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
