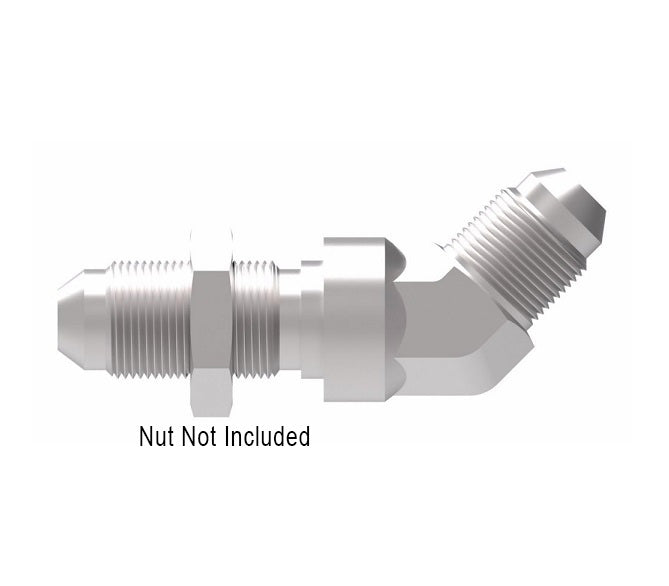

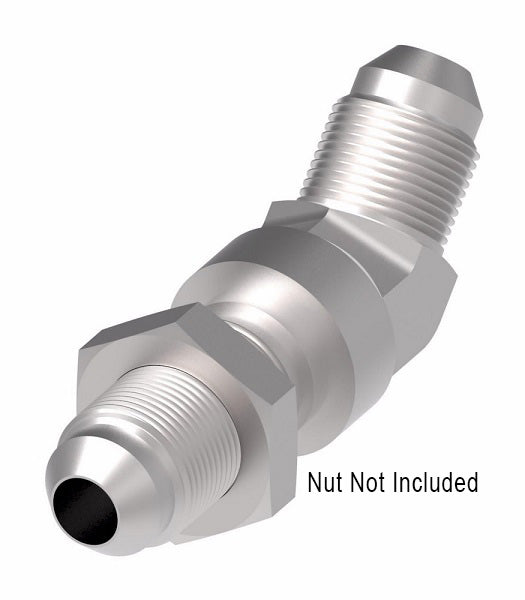

2042-1-5-5S Aeroquip by Danfoss | 37° Flare Bulkhead/37° Flare 45° Elbow Adapter (without Nut) | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel
2042-1-5-5S Aeroquip by Danfoss | 37° Flare Bulkhead/37° Flare 45° Elbow Adapter (without Nut) | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel
2042-1-5-5S Aeroquip by Danfoss | 37° Flare Bulkhead/37° Flare 45° Elbow Adapter (without Nut) | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel
2042-1-5-5S Aeroquip by Danfoss | 37° Flare Bulkhead/37° Flare 45° Elbow Adapter (without Nut) | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel

2042-1-5-5S Aeroquip by Danfoss | 37° Flare Bulkhead/37° Flare 45° Elbow Adapter (without Nut) | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel

$22.55 - $22.55
$22.55
$22.55 - $22.55
$22.55

Aeroquip® by Danfoss
37° Flare Bulkhead/37° Flare Adapter
Male 37° JIC Flare Bulkhead x Male 37° JIC Flare
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2042-1-5-5S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 5/16in Male JIC, 5/16in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070801
Part Number
Steel		 Part Number
Steel
without Nut		 Tube O.D. Thread T1 Thread T2 A B
2042-4-4S 2042-1-4-4S 0.25" 7/16-20 7/16-20 1.53" 0.72"
2042-5-5S 2042-1-5-5S 0.31" 1/2-20 1/2-20 1.66" 0.77"
2042-6-6S 2042-1-6-6S 0.38" 9/16-18 9/16-18 1.67" 0.83"
2042-8-8S 2042-1-8-8S 0.50" 3/4-16 3/4-16 1.94" 0.98"
2042-10-10S 2042-1-10-10S 0.63" 7/8-14 7/8-14 2.17" 1.11"
2042-12-12S 2042-1-12-12S 0.75" 1-1/16-12 1-1/16-12 - -
2042-16-16S - 1.00" 1-5/16-12 1-5/16-12 - -
2042-20-20S - 1.25" 1-5/8-12 1-5/8-12 2.53" 1.69"
