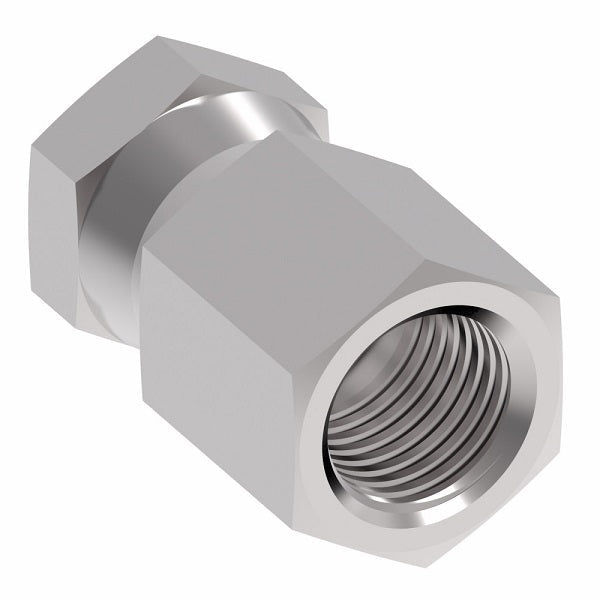

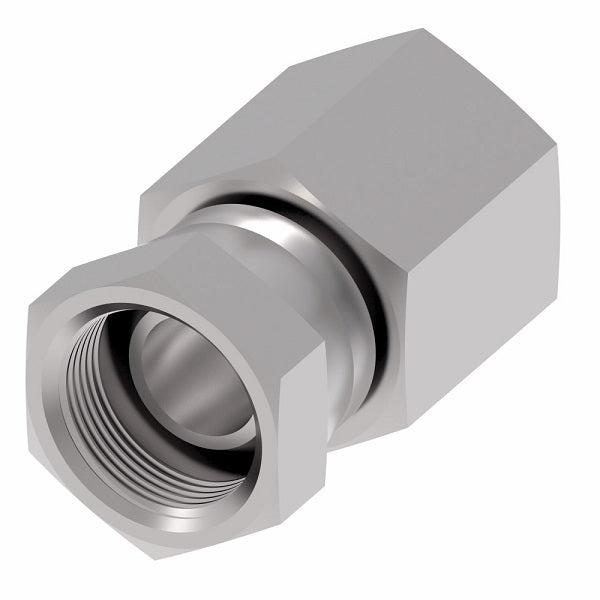

2046-6-4S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -06 Female NPSM x -04 Female NPTF | Steel

2046-6-4S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -06 Female NPSM x -04 Female NPTF | Steel

Name: 2046-6-4S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -06 Female NPSM x -04 Female NPTF | Steel
Brand: Danfoss/Eaton
SKU: 2046-6-4S Danfoss
Price: 47.25 USD
Availability: InStock

$47.25 - $47.25

$47.25

$47.25 - $47.25

$47.25

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter
Female NPSM x Female NPTF
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 2046-6-4S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female NPSM, 1/4in Female NPTF
Material(s):	Steel
Special Properties:	Swivel

Specifications:
Ref. SAE 140131


Steel Part Number	Thread P1	Thread P2	A
2046-2-2S	1/8-27	1/8-27	0.94"
2046-2-4S	1/8-27	1/4-18	1.06"
2046-4-4S	1/4-18	1/4-18	1.30"
2046-4-6S	1/4-18	3/8-18	1.31"
2046-6-4S	3/8-18	1/4-18	-
2046-6-6S	3/8-18	3/8-18	1.33"
2046-6-8S	3/8-18	1/2-14	1.45"
2046-8-6S	1/2-14	3/8-18	-
2046-8-8S	1/2-14	1/2-14	1.56"
2046-12-12S	3/4-14	3/4-14	1.77"
2046-12-16S	3/4-14	1-11-1/2	2.04"
2046-16-16S	1-11-1/2	1-11-1/2	2.06"
2046-20-20S	1-1/4-11-1/2	1-1/4-11-1/2	2.06"
2046-24-24S	1-1/2-11-1/2	1-1/2-11-1/2	2.18"
2046-32-32S	2-11-1/2	2-11-1/2	2.30"
