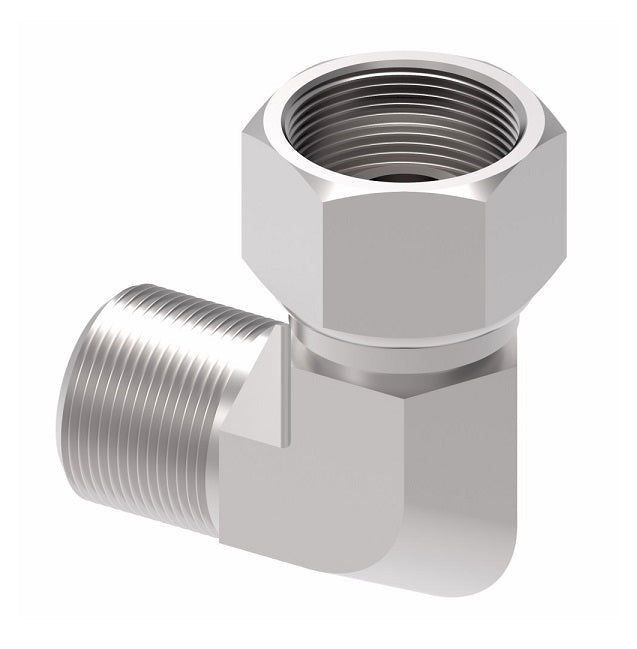

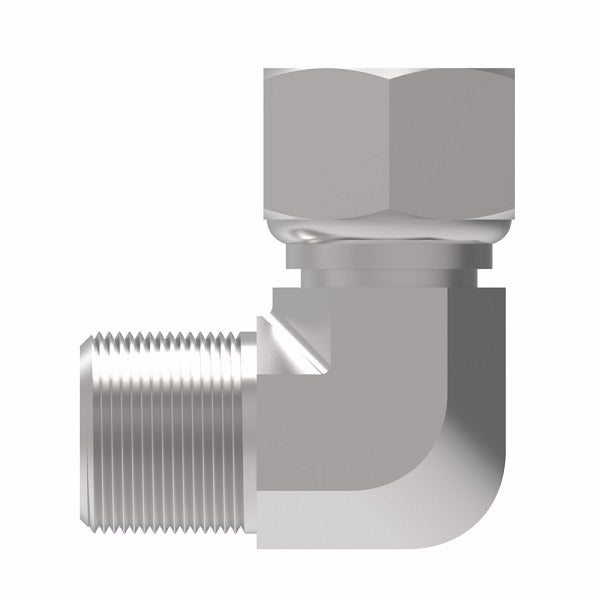

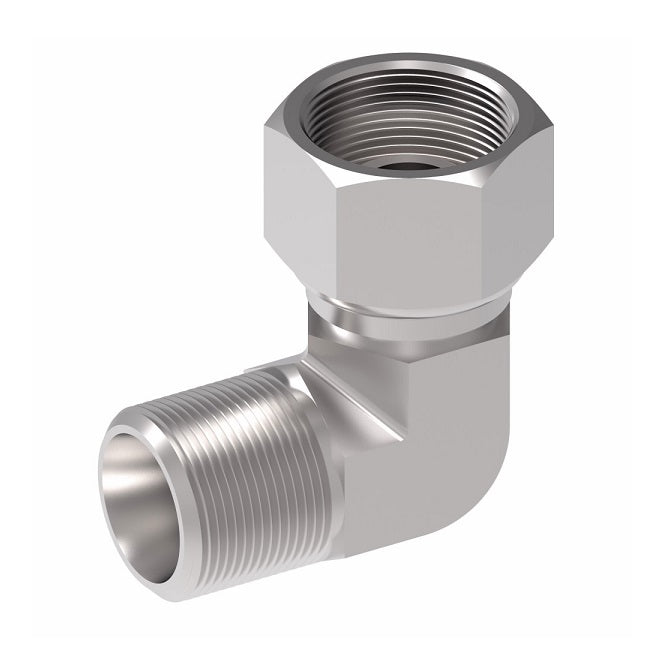

2047-16-16S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 90° Elbow Adapter | -16 Female NPSM x -16 Male NPTF | Steel
2047-16-16S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 90° Elbow Adapter | -16 Female NPSM x -16 Male NPTF | Steel
2047-16-16S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 90° Elbow Adapter | -16 Female NPSM x -16 Male NPTF | Steel
2047-16-16S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 90° Elbow Adapter | -16 Female NPSM x -16 Male NPTF | Steel

2047-16-16S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 90° Elbow Adapter | -16 Female NPSM x -16 Male NPTF | Steel

$32.01 - $32.01
$32.01
$32.01 - $32.01
$32.01

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/External Pipe Adapter
Female NPSM x Male NPTF
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2047-16-16S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female NPSM, 1in Male NPTF
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 140230
Steel Part Number Thread P1 Thread P2 A B
2047-2-2S 1/8-27 1/8-27 0.71" 1.03"
2047-2-4S 1/8-27 1/4-18 - -
2047-4-2S 1/4-18 1/8-27 - -
2047-4-4S 1/4-18 1/4-18 0.91" 1.28"
2047-4-6S 1/4-18 3/8-18 1.09" 1.53"
2047-4-8S 1/4-18 1/2-14 1.03" 1.84"
2047-6-4S 3/8-18 1/4-18 0.99" 1.22"
2047-6-6S 3/8-18 3/8-18 1.09" 1.53"
2047-6-8S 3/8-18 1/2-14 1.03" 1.84"
2047-6-12S 3/8-18 3/4-14 - -
2047-8-6S 1/2-14 3/8-18 1.08" 1.65"
2047-8-8S 1/2-14 1/2-14 1.08" 1.84"
2047-8-12S 1/2-14 3/4-14 1.24" 2.03"
2047-12-8S 3/4-14 1/2-14 1.36" 2.03"
2047-12-12S 3/4-14 3/4-14 1.36" 2.03"
2047-12-16S 3/4-14 1-11-1/2 1.51" 2.41"
2047-16-12S 1-11-1/2 3/4-14 1.53" 2.22"
2047-16-16S 1-11-1/2 1-11-1/2 1.53" 2.41"
2047-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 1.82" 2.65"
2047-24-24S 1-1/2-11-1/2 1-1/2-11-1/2 2.02" 2.84"
2047-32-32S 2-11-1/2 2-11-1/2 2.37" 3.34"
