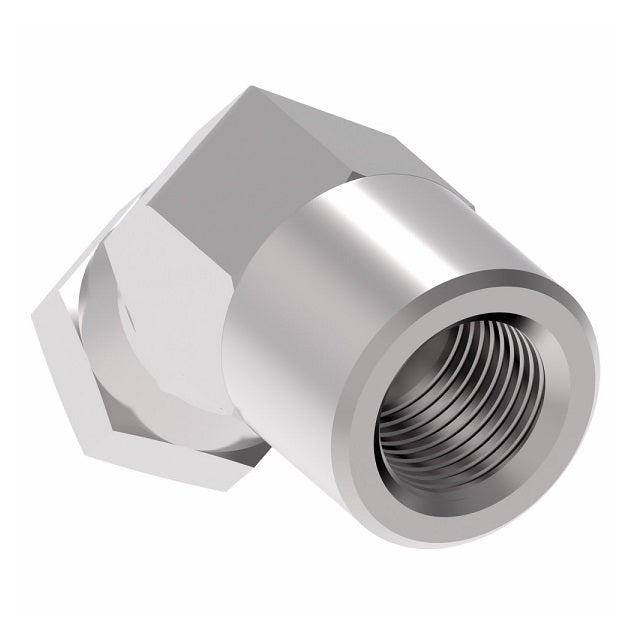

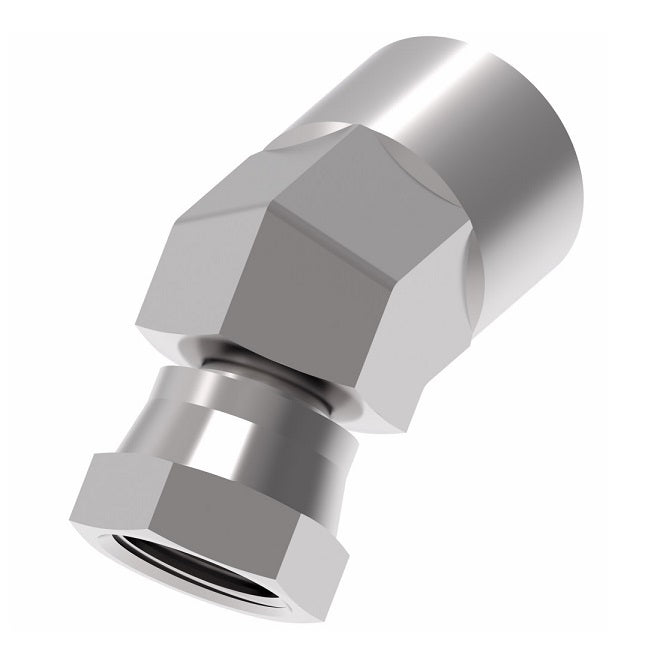

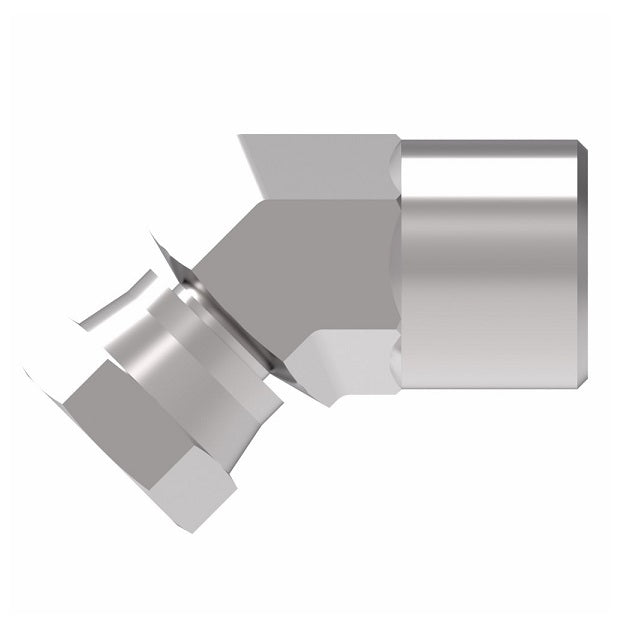

2050-12-16S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 45° Elbow Adapter | -12 Female NPSM x -16 Female NPTF | Steel

Original price $41.62 - Original price $41.62
Original price
$41.62
$41.62 - $41.62
Current price $41.62

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/Internal Pipe
Female NPSM x Female NPTF
45° Elbow

(Formerly Eaton Aeroquip)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2050-12-16S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female NPSM, 1in Female NPTF
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 140331
Steel
Part Number
Thread P1 Thread P2 A B
2050-2-2S 1/8-27 1/8-27 0.62" 0.50"
2050-4-4S 1/4-18 1/4-18 0.79" 0.97"
2050-4-6S 1/4-18 3/8-18 0.92" 1.18"
2050-6-6S 3/8-18 3/8-18 0.92" 1.18"
2050-6-8S 3/8-18 1/2-14 0.86" 1.41"
2050-8-8S 1/2-14 1/2-14 0.91" 1.41"
2050-12-12S 3/4-14 3/4-14 1.10" 1.53"
2050-12-16S 3/4-14 1-11-1/2 - -
2050-16-16S 1-11-1/2 1-11-1/2 1.26" 1.53"
2050-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 1.23" 1.44"
