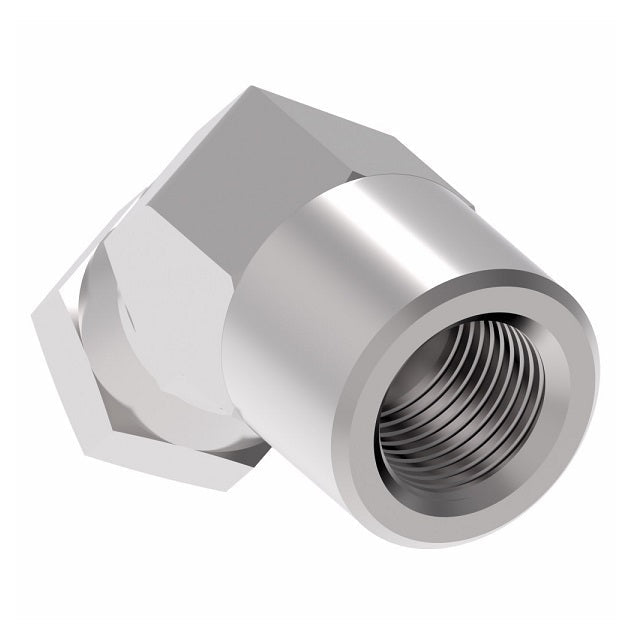

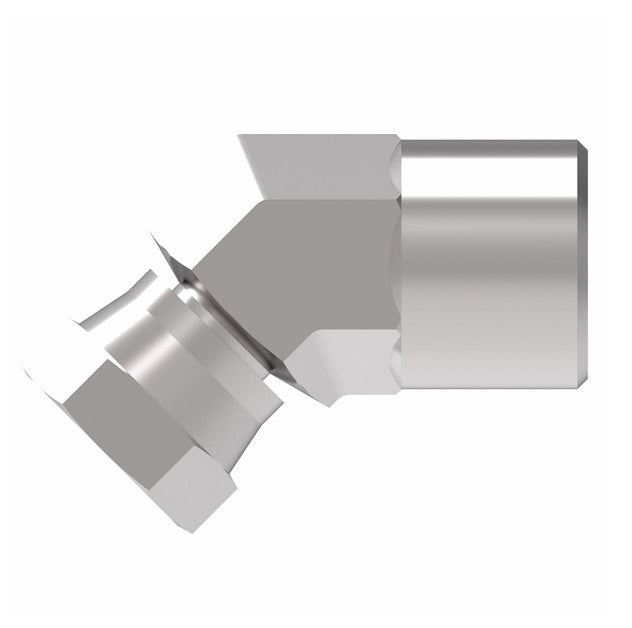

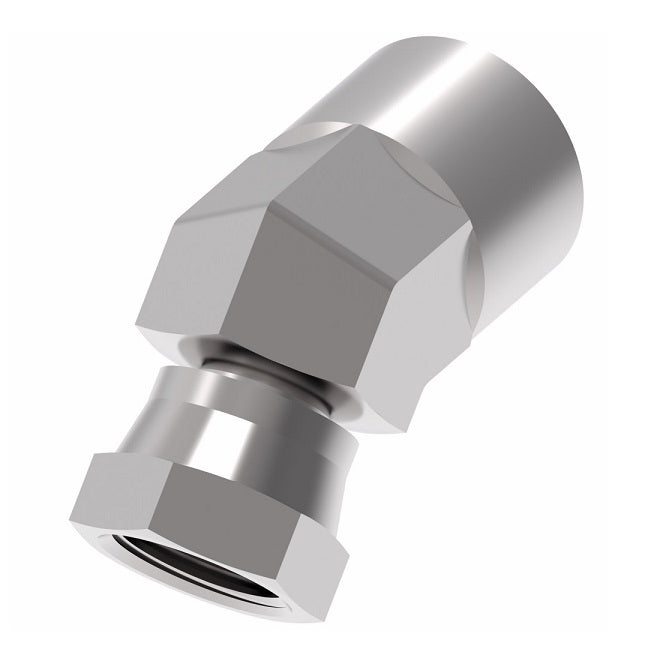

2050-6-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 45° Elbow Adapter | -06 Female NPSM x -08 Female NPTF | Steel
2050-6-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 45° Elbow Adapter | -06 Female NPSM x -08 Female NPTF | Steel
2050-6-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 45° Elbow Adapter | -06 Female NPSM x -08 Female NPTF | Steel
2050-6-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 45° Elbow Adapter | -06 Female NPSM x -08 Female NPTF | Steel

2050-6-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 45° Elbow Adapter | -06 Female NPSM x -08 Female NPTF | Steel

$22.32 - $22.32
$22.32
$22.32 - $22.32
$22.32

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/Internal Pipe
Female NPSM x Female NPTF
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2050-6-8S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female NPSM, 1/2in Female NPTF
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 140331
Steel
Part Number 		Thread P1 Thread P2 A B
2050-2-2S 1/8-27 1/8-27 0.62" 0.50"
2050-4-4S 1/4-18 1/4-18 0.79" 0.97"
2050-4-6S 1/4-18 3/8-18 0.92" 1.18"
2050-6-6S 3/8-18 3/8-18 0.92" 1.18"
2050-6-8S 3/8-18 1/2-14 0.86" 1.41"
2050-8-8S 1/2-14 1/2-14 0.91" 1.41"
2050-12-12S 3/4-14 3/4-14 1.10" 1.53"
2050-12-16S 3/4-14 1-11-1/2 - -
2050-16-16S 1-11-1/2 1-11-1/2 1.26" 1.53"
2050-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 1.23" 1.44"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
