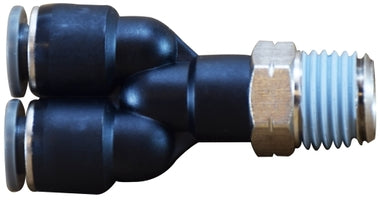

20557C (20-557C) Midland Push-In Fitting - Swivel Y Connector - 1/4" Tube OD x 1/4" Male NPT - Composite Body

20557C by Midland | Push-In Fitting | Swivel Connector | 1/4" Tube OD x 1/4" Male NPT | Y | Composite Body

Save $0.96

$8.64

$8.64 - $8.64

$8.64

$7.68

$7.68 - $7.68

$7.68

Midland Industries
Brass Fitting - Composite Body Push-in Fitting - Swivel Y Connector

Note: Not a live swivel - swivels for installation only.

The latest generation of composite material is used in the body construction in addition to brass on threaded components, and stainless steel on the tube gripper.

Inventory @ Manufacturers Warehouse: 27 Units

Quantity

Specifications for Variant SKU: 20557C Midland
Shape (Orientation):	Y
Ends Configuration:	1/4in Push-to-Connect, 1/4in Male NPT, 1/4in Push-to-Connect
Material(s):	Composite, Brass
Seal Material(s):	NBR 70

Fluid Admitted:	Air	Working Pressure Range:	0-150 PSI (10 BAR)
Min. Burst Pressure:	340 PSI (23 BAR)	Working Temperature Range:	0°F ~160°F
Tolerance:	+/- .02 on all dimensions.

Materials of Construcion
1	Body	Composite Polyacetal (Hemopolymer, Copolymer)
2	Body	Brass
3	Tube Release	Acetal Resin
4	Retainer	Brass
5	Gripper Ring	Stainless Steel
6	Spacer	Brass
7	O-Ring	NBR 70
8	Threads	Brass with White Sealant

Crossover Series:
PQ88PS

Part Number	Tube O.D. x Male NPT	Approx. Weight (Lbs.)
20187C (20-187C)	1/4" x 1/8"	0.02
20557C (20-557C)	1/4" x 1/4"	0.02
20188C (20-188C)	3/8" x 1/4"	0.04
20189C (20-189C)	3/8" x 3/8"	0.04
20193C (20-193C)	3/8" x 1/2"	0.07
20194C (20-194C)	1/2" x 3/8"	0.06
20195C (20-195C)	1/2" x 1/2"	0.09

Dimension Data can change without notice.
