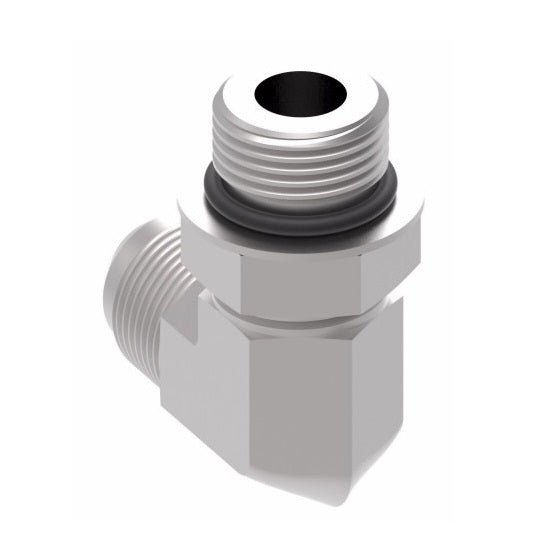

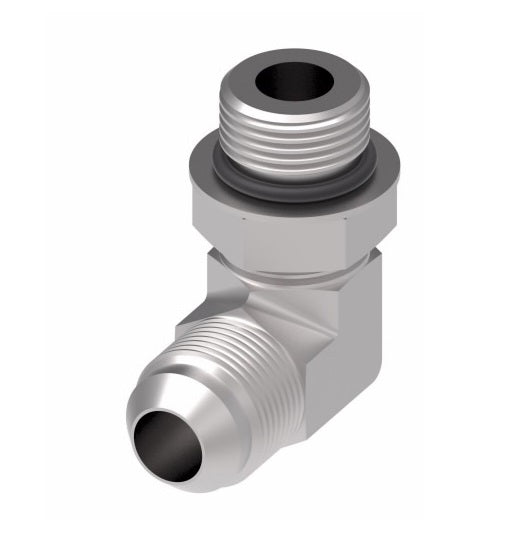

2062-10-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 90° Elbow Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel
2062-10-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 90° Elbow Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel
2062-10-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 90° Elbow Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel
2062-10-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 90° Elbow Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel

2062-10-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 90° Elbow Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel

$7.34 - $7.34
$7.34
$7.34 - $7.34
$7.34

Aeroquip® by Danfoss
SAE ORB (adj.)/37° JIC Flare 90° Elbow Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2062-10-10S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male O-Ring Boss, 5/8in Male JIC
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Specifications:
  • Ref. SAE 070220
Part Number
Steel
Buna-N O-Ring		 Part Number
Steel
Viton O-Ring 		Part Number
Steel
without O-Ring		 Tube O.D. Thread T1 Thread T2 A B
- - 2062-1-3-5S 0.31" 3/8-24 1/2-20 - -
2062-4-4S 213-2062-4-4S - 0.25" 7/16-20 7/16-20 1.03" 0.89"
2062-4-5S - - 0.31" 7/16-20 1/2-20 1.13" 0.95"
2062-4-6S - - 0.38" 7/16-20 9/16-18 1.19" 1.06"
2062-5-4S - - 0.25" 1/2-20 7/16-20 1.13" 0.95"
2062-5-5S - - 0.31" 1/2-20 1/2-20 1.13" 0.95"
2062-5-6S - - 0.38" 1/2-20 9/16-18 1.19" 1.06"
2062-6-4S - - 0.25" 9/16-18 7/16-20 1.25" 1.05"
2062-6-5S - - 0.31" 9/16-18 1/2-20 1.25" 1.05"
2062-6-6S - 2062-1-6-6S 0.38" 9/16-18 9/16-18 1.25" 1.06"
2062-6-8S - 2062-1-6-8S 0.50" 9/16-18 3/4-16 1.32" 1.25"
2062-8-6S - - 0.38" 3/4-16 9/16-18 1.45" 1.14"
2062-8-8S - 2062-1-8-8S 0.50" 3/4-16 3/4-16 1.45" 1.25"
2062-8-10S - 2062-1-8-10S 0.63" 3/4-16 7/8-14 1.54" 1.45"
2062-8-12S - - 0.75" 3/4-16 1-1/16-12 1.62" 1.66"
2062-10-6S - - 0.38" 7/8-14 9/16-18 1.70" 1.22"
2062-10-8S - - 0.50" 7/8-14 3/4-16 1.70" 1.33"
2062-10-10S 213-2062-10-10 - 0.63" 7/8-14 7/8-14 1.70" 1.45"
2062-10-12S - - 0.75" 7/8-14 1-1/16-12 1.78" 1.66"
2062-12-8S - 2062-1-12-8S 0.50" 1-1/16-12 3/4-16 1.94" 1.42"
2062-12-10S - - 0.63" 1-1/16-12 7/8-14 1.94" 1.54"
2062-12-12S 213-2062-12-12 - 0.75" 1-1/16-12 1-1/16-12 1.94" 1.66"
2062-12-16S - 2062-1-12-16S 1.00" 1-1/16-12 1-5/16-12 2.05" 1.81"
2062-12-20S - - 1.25" 1-1/16-12 1-5/8-12 2.25" 2.06"
2062-14-16S - - 1.00" 1-3/16-12 1-5/16-12 2.05" 1.81"
2062-16-8S - - 0.50" 1-5/16-12 3/4-16 2.05" 1.52
2062-16-10S - - 0.63" 1-5/16-12 7/8-14 2.05" 1.64"
2062-16-12S - - 0.75" 1-5/16-12 1-1/16-12 2.05" 1.76"
2062-16-16S 213-2062-16-16 - 1.00" 1-5/16-12 1-5/16-12 2.05" 1.81"
2062-16-20S - - 1.25" 1-5/16-12 1-5/8-12 2.25" 2.06"
2062-20-16S - - 1.00" 1-5/8-12 1-5/16-12 2.25" 2.01"
2062-20-20S 213-2062-20-20 - 1.25" 1-5/8-12 1-5/8-12 2.25" 2.06"
2062-20-24S - - 1.50" 1-5/8-12 1-7/8-12 2.39" 2.33"
2062-24-20S - - 1.25" 1-7/8-12 1-5/8-12 2.39" 2.20"
2062-24-24S - - 1.50" 1-7/8-12 1-7/8-12 2.39" 2.33"
