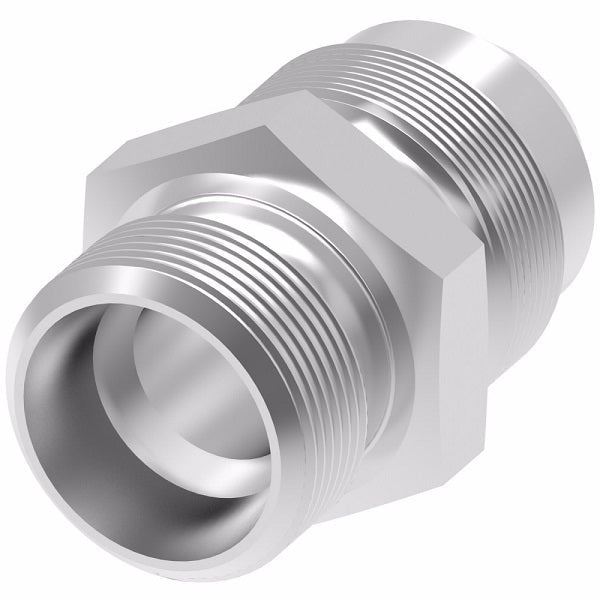

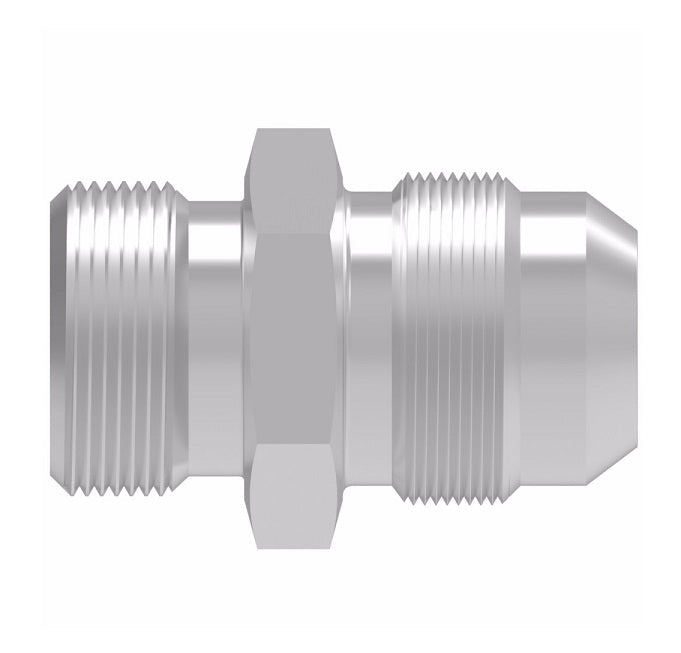

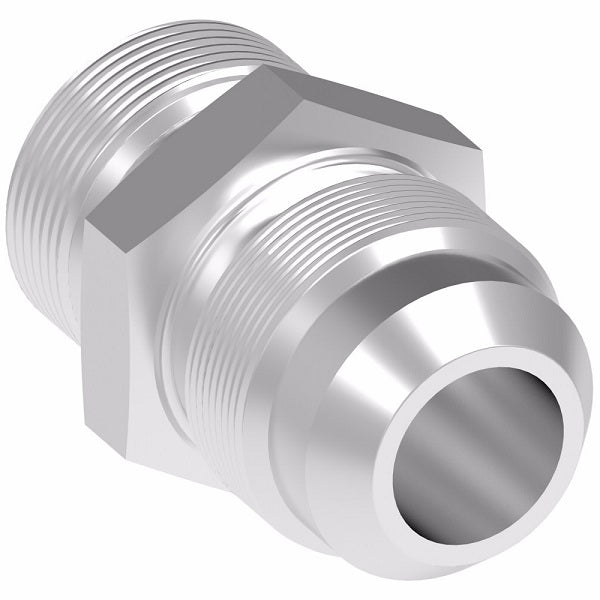

2063-10-12S Aeroquip by Danfoss | BSPP (Parallel)/Male 37° Flare Adapter | -10 Male BSPP x -12 Male 37° Flare | Steel

2063-10-12S Aeroquip by Danfoss | BSPP (Parallel)/Male 37° Flare Adapter | -10 Male BSPP x -12 Male 37° Flare | Steel

Name: 2063-10-12S Aeroquip by Danfoss | BSPP (Parallel)/Male 37° Flare Adapter | -10 Male BSPP x -12 Male 37° Flare | Steel
Brand: Danfoss/Eaton
SKU: 2063-10-12S Danfoss
Price: 38.92 USD
Availability: InStock

$38.92 - $38.92

$38.92

$38.92 - $38.92

$38.92

Aeroquip® by Danfoss
BSPP (Parallel)/Male 37° Flare Adapter
Male BSPP x Male 37° Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2063-10-12S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male BSPP, 3/4in Male JIC
Material(s):	Steel

Notes:
The BSPP male end mates with a BSPP female swivel nut. Use GG106 conversion adapters for port connections.


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A
2063-2-4S	0.25"	1/8-28	7/16-20	1.38"
2063-4-4S	0.25"	1/4-19	7/16-20	1.38"
2063-4-5S	0.31"	1/4-19	1/2-20	1.38"
2063-4-6S	0.38"	1/4-19	9/16-18	1.38"
2063-6-4S	-	3/8-18	7/16-20	1.43"
2063-6-6S	0.38"	3/8-19	9/16-18	1.43"
2063-6-8S	0.50"	3/8-19	3/4-16	1.53"
2063-8-8S	0.50"	1/2-14	3/4-16	1.63"
2063-8-10S	0.63"	1/2-14	7/8-14	1.73"
2063-10-12S	0.75"	5/8-14	1-1/16-12	1.94"
2063-12-10S	0.63"	3/4-14	7/8-14	1.88"
2063-12-12S	0.75"	3/4-14	1-1/16-12	1.99"
2063-16-16S	1.00"	1-11	1-5/16-12	2.09"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
