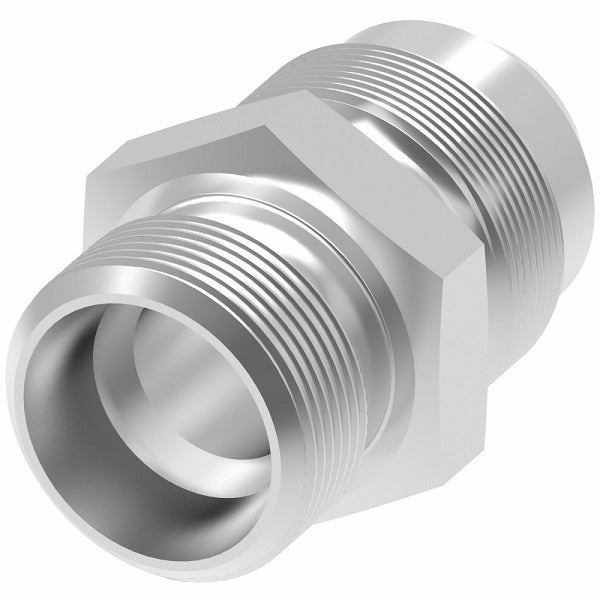

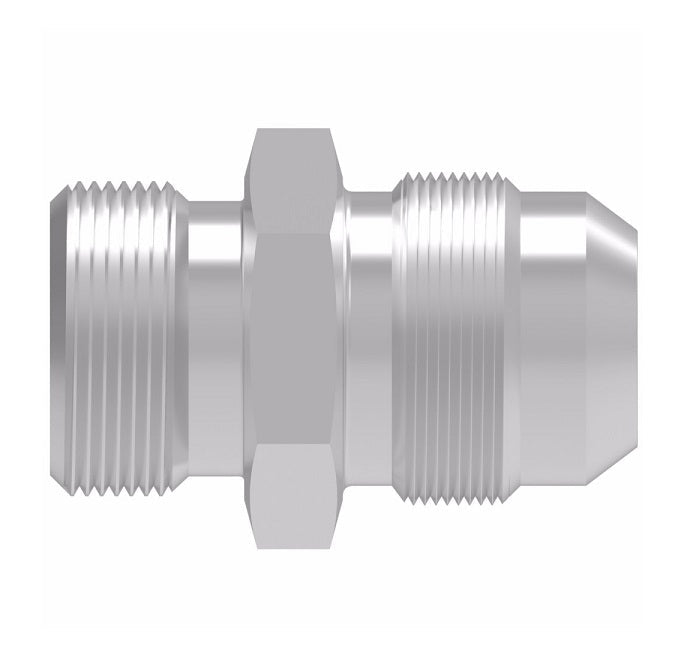

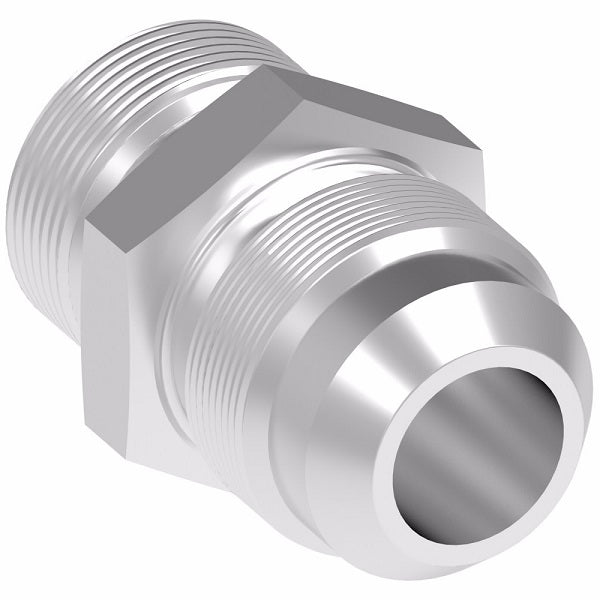

2063-8-8S Aeroquip by Danfoss | BSPP (Parallel)/Male 37° Flare Adapter | -08 Male BSPP x -08 Male 37° Flare | Steel

2063-8-8S Aeroquip by Danfoss | BSPP (Parallel)/Male 37° Flare Adapter | -08 Male BSPP x -08 Male 37° Flare | Steel

Name: 2063-8-8S Aeroquip by Danfoss | BSPP (Parallel)/Male 37° Flare Adapter | -08 Male BSPP x -08 Male 37° Flare | Steel
Brand: Danfoss/Eaton
SKU: 2063-8-8S Danfoss
Price: 23.5 USD
Availability: InStock

$23.50 - $23.50

$23.50

$23.50 - $23.50

$23.50

Aeroquip® by Danfoss
BSPP (Parallel)/Male 37° Flare Adapter
Male BSPP x Male 37° Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2063-8-8S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male BSPP, 1/2in Male JIC
Material(s):	Steel

Notes:
The BSPP male end mates with a BSPP female swivel nut. Use GG106 conversion adapters for port connections.


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A
2063-2-4S	0.25"	1/8-28	7/16-20	1.38"
2063-4-4S	0.25"	1/4-19	7/16-20	1.38"
2063-4-5S	0.31"	1/4-19	1/2-20	1.38"
2063-4-6S	0.38"	1/4-19	9/16-18	1.38"
2063-6-4S	-	3/8-18	7/16-20	1.43"
2063-6-6S	0.38"	3/8-19	9/16-18	1.43"
2063-6-8S	0.50"	3/8-19	3/4-16	1.53"
2063-8-8S	0.50"	1/2-14	3/4-16	1.63"
2063-8-10S	0.63"	1/2-14	7/8-14	1.73"
2063-10-12S	0.75"	5/8-14	1-1/16-12	1.94"
2063-12-10S	0.63"	3/4-14	7/8-14	1.88"
2063-12-12S	0.75"	3/4-14	1-1/16-12	1.99"
2063-16-16S	1.00"	1-11	1-5/16-12	2.09"
