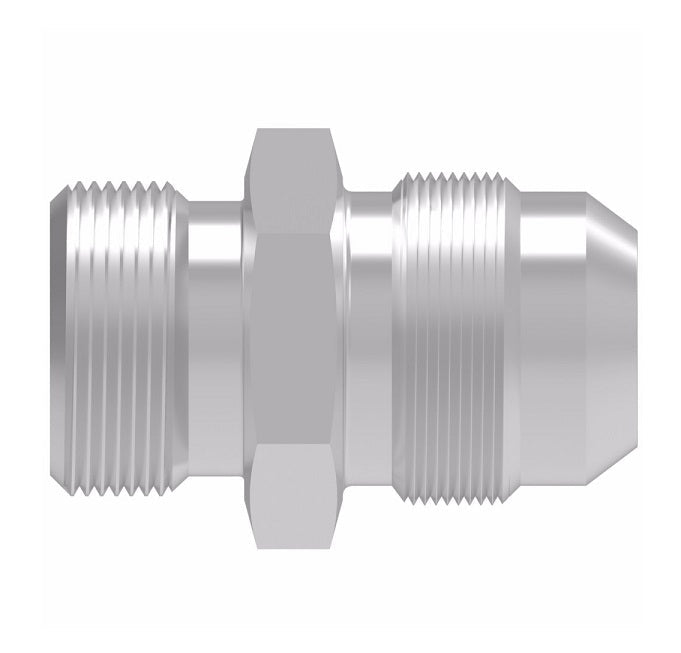

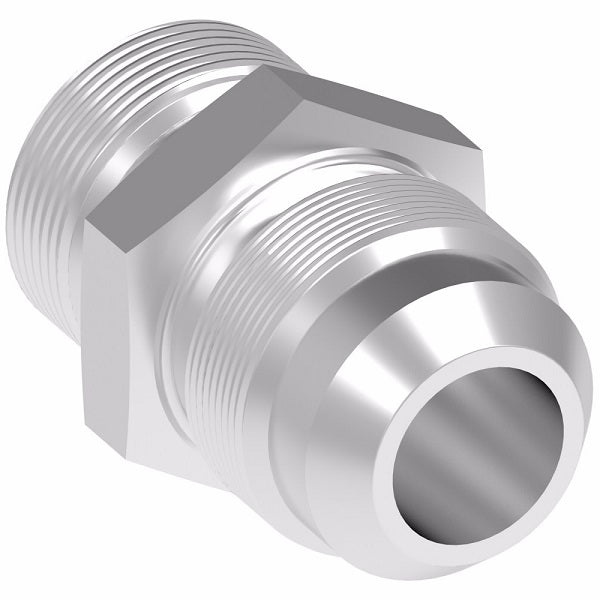

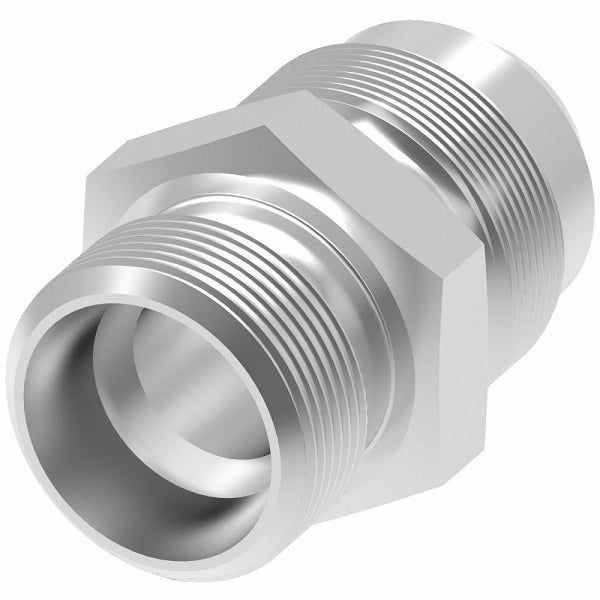

2063-4-5S Aeroquip by Danfoss | BSPP (Parallel)/Male 37° Flare Adapter | -04 Male BSPP x -05 Male 37° Flare | Steel
2063-4-5S Aeroquip by Danfoss | BSPP (Parallel)/Male 37° Flare Adapter | -04 Male BSPP x -05 Male 37° Flare | Steel
2063-4-5S Aeroquip by Danfoss | BSPP (Parallel)/Male 37° Flare Adapter | -04 Male BSPP x -05 Male 37° Flare | Steel
2063-4-5S Aeroquip by Danfoss | BSPP (Parallel)/Male 37° Flare Adapter | -04 Male BSPP x -05 Male 37° Flare | Steel

2063-4-5S Aeroquip by Danfoss | BSPP (Parallel)/Male 37° Flare Adapter | -04 Male BSPP x -05 Male 37° Flare | Steel

$59.02 - $59.02
$59.02
$59.02 - $59.02
$59.02

Aeroquip® by Danfoss
BSPP (Parallel)/Male 37° Flare Adapter
Male BSPP x Male 37° Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2063-4-5S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male BSPP, 5/16in Male JIC
Material(s): Steel
Notes:
  • The BSPP male end mates with a BSPP female swivel nut.
  • Use GG106 conversion adapters for port connections.
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A
2063-2-4S 0.25" 1/8-28 7/16-20 1.38"
2063-4-4S 0.25" 1/4-19 7/16-20 1.38"
2063-4-5S 0.31" 1/4-19 1/2-20 1.38"
2063-4-6S 0.38" 1/4-19 9/16-18 1.38"
2063-6-4S - 3/8-18 7/16-20 1.43"
2063-6-6S 0.38" 3/8-19 9/16-18 1.43"
2063-6-8S 0.50" 3/8-19 3/4-16 1.53"
2063-8-8S 0.50" 1/2-14 3/4-16 1.63"
2063-8-10S 0.63" 1/2-14 7/8-14 1.73"
2063-10-12S 0.75" 5/8-14 1-1/16-12 1.94"
2063-12-10S 0.63" 3/4-14 7/8-14 1.88"
2063-12-12S 0.75" 3/4-14 1-1/16-12 1.99"
2063-16-16S 1.00" 1-11 1-5/16-12 2.09"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
