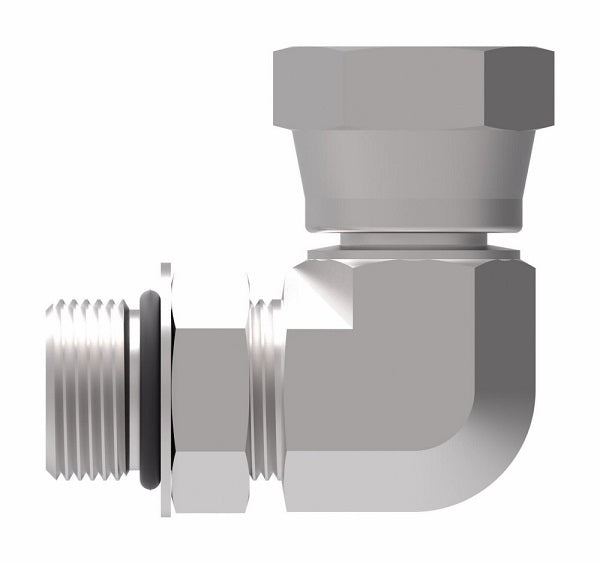

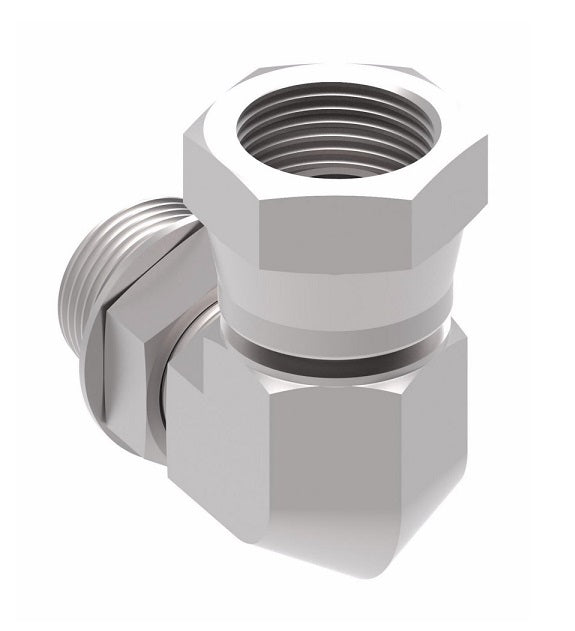

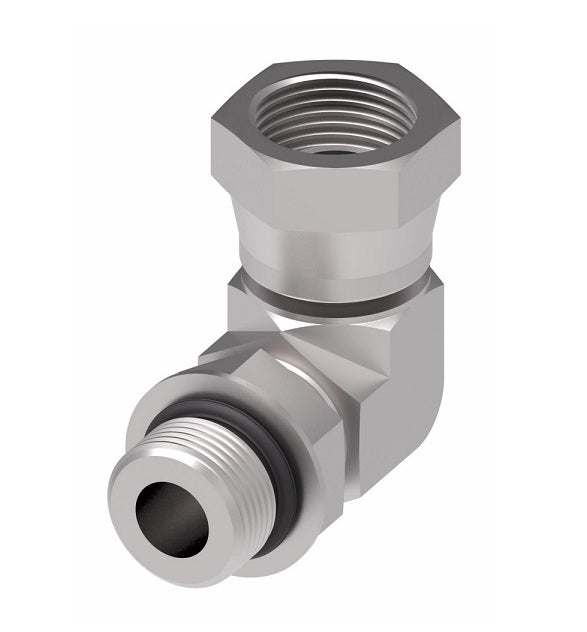

2068-20-20S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 90° Elbow Adapter | -20 Female NPSM x -20 Male SAE O-Ring Boss | Steel
2068-20-20S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 90° Elbow Adapter | -20 Female NPSM x -20 Male SAE O-Ring Boss | Steel
2068-20-20S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 90° Elbow Adapter | -20 Female NPSM x -20 Male SAE O-Ring Boss | Steel
2068-20-20S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 90° Elbow Adapter | -20 Female NPSM x -20 Male SAE O-Ring Boss | Steel

2068-20-20S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 90° Elbow Adapter | -20 Female NPSM x -20 Male SAE O-Ring Boss | Steel

$110.36 - $110.36
$110.36
$110.36 - $110.36
$110.36

Aeroquip® by Danfoss
Internal Pipe NPSM Swivel/SAE ORB (adj.) Adapter
Female NPSM x Male SAE O-Ring Boss
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2068-20-20S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female NPSM, 1-1/4in Male O-Ring Boss
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Thread P Thread T A B
2068-4-4S 1/4-18 7/16-20 0.91" 1.16"
2068-4-6S 1/4-18 9/16-18 0.91" 1.22"
2068-6-4S 3/8-18 7/16-20 - -
2068-6-6S 3/8-18 9/16-18 1.09" 1.35"
2068-6-8S 3/8-18 3/4-16 1.09" 1.48"
2068-6-10S 3/8-18 7/8-14 1.09" 1.67"
2068-8-6S 1/2-14 9/16-18 1.08" 1.51"
2068-8-8S 1/2-14 3/4-16 1.08" 1.51"
2068-8-10S 1/2-14 7/8-14 1.08" 1.67"
2068-8-12S 1/2-14 1-1/16-12 1.18" 1.97"
2068-12-8S 3/4-14 3/4-16 1.30" 1.65"
2068-12-10S 3/4-14 7/8-14 1.32" 1.81"
2068-12-12S 3/4-14 1-1/16-12 1.36" 1.97"
2068-12-16S 3/4-14 1-5/16-12 1.41" 2.21"
2068-16-16S 1-11-1/2 1-5/16-12 1.53" 2.12"
2068-20-16S 1-1/4-11-1/2 1-5/16-12 1.82" 2.50"
2068-20-20S 1-1/4-11-1/2 1-5/8-12 1.82" 2.50"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
