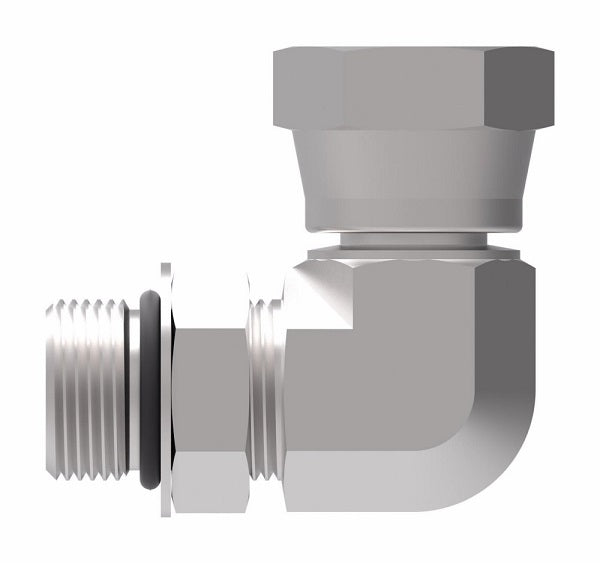

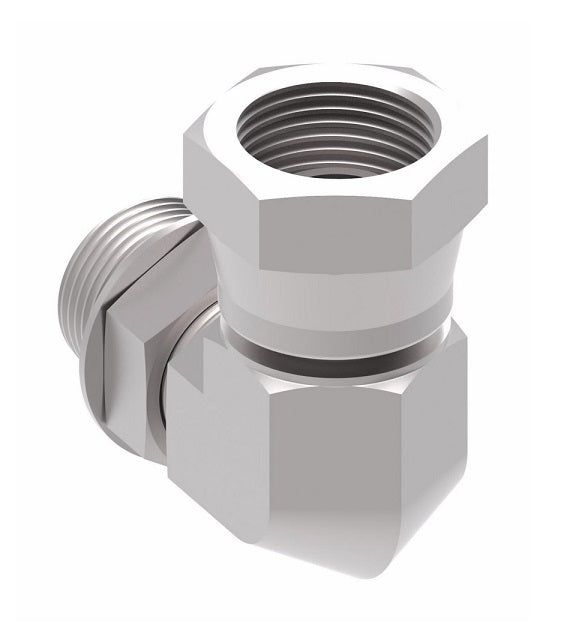

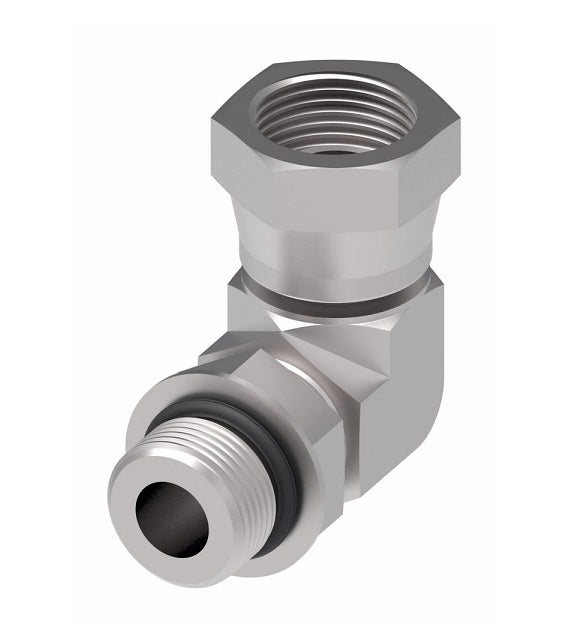

2068-6-4S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 90° Elbow Adapter | -06 Female NPSM x -04 Male SAE O-Ring Boss | Steel
2068-6-4S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 90° Elbow Adapter | -06 Female NPSM x -04 Male SAE O-Ring Boss | Steel
2068-6-4S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 90° Elbow Adapter | -06 Female NPSM x -04 Male SAE O-Ring Boss | Steel
2068-6-4S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 90° Elbow Adapter | -06 Female NPSM x -04 Male SAE O-Ring Boss | Steel

2068-6-4S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 90° Elbow Adapter | -06 Female NPSM x -04 Male SAE O-Ring Boss | Steel

$19.80 - $19.80
$19.80
$19.80 - $19.80
$19.80

Aeroquip® by Danfoss
Internal Pipe NPSM Swivel/SAE ORB (adj.) Adapter
Female NPSM x Male SAE O-Ring Boss
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2068-6-4S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female NPSM, 1/4in Male O-Ring Boss
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Thread P Thread T A B
2068-4-4S 1/4-18 7/16-20 0.91" 1.16"
2068-4-6S 1/4-18 9/16-18 0.91" 1.22"
2068-6-4S 3/8-18 7/16-20 - -
2068-6-6S 3/8-18 9/16-18 1.09" 1.35"
2068-6-8S 3/8-18 3/4-16 1.09" 1.48"
2068-6-10S 3/8-18 7/8-14 1.09" 1.67"
2068-8-6S 1/2-14 9/16-18 1.08" 1.51"
2068-8-8S 1/2-14 3/4-16 1.08" 1.51"
2068-8-10S 1/2-14 7/8-14 1.08" 1.67"
2068-8-12S 1/2-14 1-1/16-12 1.18" 1.97"
2068-12-8S 3/4-14 3/4-16 1.30" 1.65"
2068-12-10S 3/4-14 7/8-14 1.32" 1.81"
2068-12-12S 3/4-14 1-1/16-12 1.36" 1.97"
2068-12-16S 3/4-14 1-5/16-12 1.41" 2.21"
2068-16-16S 1-11-1/2 1-5/16-12 1.53" 2.12"
2068-20-16S 1-1/4-11-1/2 1-5/16-12 1.82" 2.50"
2068-20-20S 1-1/4-11-1/2 1-5/8-12 1.82" 2.50"
