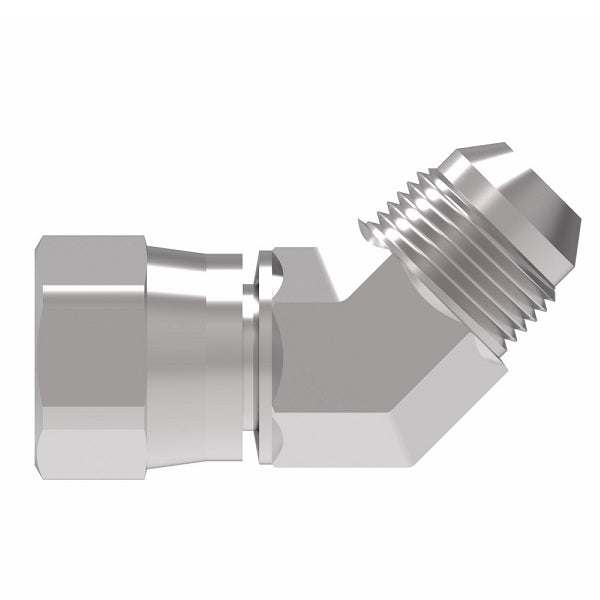

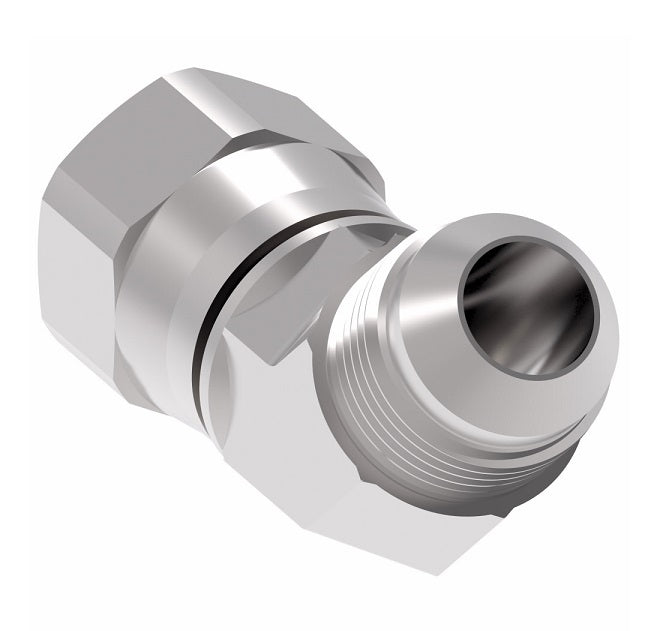

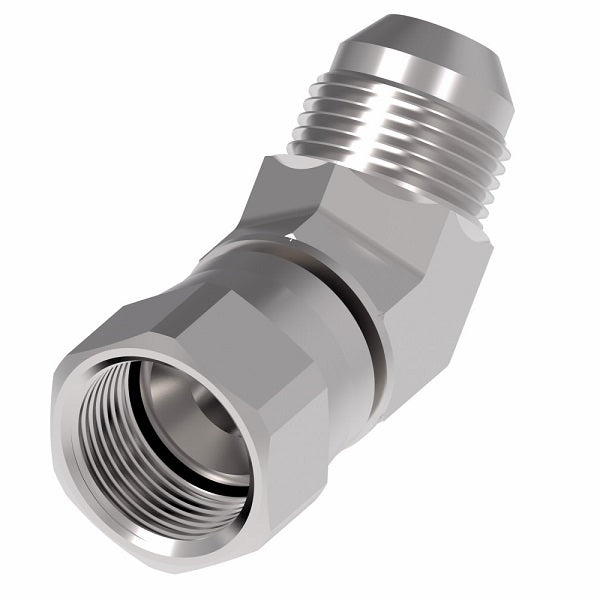

2070-24-24S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -24 Female 37° JIC Flare Swivel x -24 Male 37° JIC Flare | Steel
2070-24-24S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -24 Female 37° JIC Flare Swivel x -24 Male 37° JIC Flare | Steel
2070-24-24S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -24 Female 37° JIC Flare Swivel x -24 Male 37° JIC Flare | Steel
2070-24-24S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -24 Female 37° JIC Flare Swivel x -24 Male 37° JIC Flare | Steel

2070-24-24S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -24 Female 37° JIC Flare Swivel x -24 Male 37° JIC Flare | Steel

$210.48 - $210.48
$210.48
$210.48 - $210.48
$210.48

Aeroquip® by Danfoss
37° Flare Swivel/37° Flare Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2070-24-24S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/2in Female JIC, 1-1/2in Male JIC
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 070321
Part Number
Steel		 Tube O.D. Thread T1 Thread T2 A B
2070-4-4S 0.25" 7/16-20 7/16-20 0.60" 0.72"
2070-5-5S 0.31" 1/2-20 1/2-20 0.62" 0.77"
2070-6-6S 0.38" 9/16-18 9/16-18 0.74" 0.83"
2070-8-8S 0.50" 3/4-16 3/4-16 0.86" 0.98"
2070-10-10S 0.63" 7/8-14 7/8-14 0.94" 1.11"
2070-12-12S 0.75" 1-1/16-12 1-1/16-12 0.94" 1.28"
2070-14-14S 0.88" 1-3/16-12 1-3/16-12 1.04" 1.45"
2070-16-16S 1.00" 1-5/16-12 1-5/16-12 1.16" 1.47"
2070-20-20S 1.25" 1-5/8-12 1-5/8-12 1.40" 1.59"
2070-24-24S 1.50" 1-7/8-12 1-7/8-12 - -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
