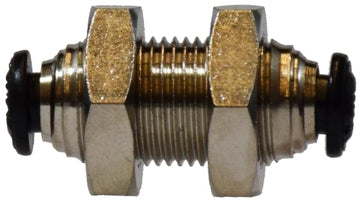

20737N (20-737N) by Midland | Push-In Fitting | Metric Bulkhead | 12mm Tube OD | Straight | Nickel Plated Brass

Save $2.34

$21.09

$21.09 - $21.09

$21.09

$18.75

$18.75 - $18.75

$18.75

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Metric Bulkhead

Inventory @ Manufacturers Warehouse: 11 Units

Quantity

Specifications for Variant SKU: 20737N Midland
Shape (Orientation):	Straight
Ends Configuration:	12mm Push-to-Connect, 12mm Push-to-Connect, Some Ends Match
Material(s):	Nickel Plated Brass

Features:
Saves time and money No stripped threads No stripped parts Reduce inventory Completely reusable Quick installation No pitch identification
Specifications:
Tolerance: +/- .02 on all dimensions Max Operating Pressure: Vacuum to 290PSI Min Temperature: -4°F Max Temperature: 176°F Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer Media: Compressed air, water, vacuum


Part Number	Tube O.D. (mm)	M	A	Hex
20731N (20-731N)	3mm	M10x1	1.014"	0.546"
20732N (20-732N)	4mm	MI2x1	1.229"	0.663"
20733N (20-733N)	5mm	M14x1	1.287"	0.663"
20734N (20-734N)	6mm	M14x1	1.365"	0.663"
20735N (20-735N)	8mm	M16x1	1.443"	0.741"
20736N (20-736N)	10mm	M20x1	1.677"	0.936"
20737N (20-737N)	12mm	M22x1	1.872"	1.014"

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
