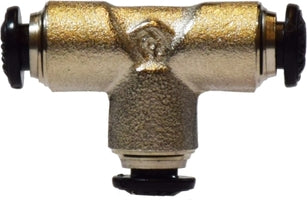

20741N by Midland | Push-In Fitting | Metric Union | 3mm Tube OD | Tee | Nickel Plated Brass

Save $7.25

$18.13

$18.13 - $18.13

$18.13

$10.88

$10.88 - $10.88

$10.88

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Metric Union Tee

Specifications for Variant SKU: 20741N Midland
Shape (Orientation):	Tee
Ends Configuration:	3mm Push-to-Connect, 3mm Push-to-Connect, 3mm Push-to-Connect, Some Ends Match
Material(s):	Nickel Plated Brass

Features:
Saves time and money No stripped threads No stripped parts Reduce inventory Completely reusable Quick installation No pitch identification
Specifications:
Tolerance: +/- .02 on all dimensions Max Operating Pressure: Vacuum to 290PSI Min Temperature: -4°F Max Temperature: 176°F Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer Media: Compressed air, water, vacuum

Component Parts and Materials:
Body	Brass - Nickel Plated
Thrust Ring	Acetalic Resin/ Glass filled Nylon
Sleeve	Brass - Nickel Plated
Gripper Collet	Stainless Steel
Safety Ring	PA66
Lip Seal (1/8" O-Ring Seal)	NBR 70
Thread Seal	NBR 70


Part Number	Tube O.D. (mm)	A	B	Body Size
20741N	3mm	1.326"	0.663"	0.351"
20610N	4mm	1.326"	0.663"	0.351"
20742N	5mm	1.560"	0.780"	0.429"
20611N	6mm	1.638"	0.819"	0.429"
20612N	8mm	1.755"	0.878"	0.507"
20613N	10mm	2.067"	1.034"	0.624"
20614N	12mm	2.379"	1.190"	0.741"
20743N	14mm	2.379"	2.535"	0.741"

Dimension data can change without notice.
