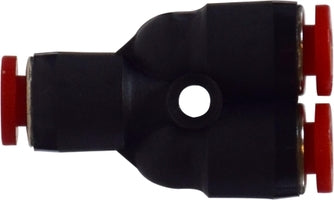

20813 (20-813) Midland Metric Push-In Fitting - Union Wye - 4mm Tube OD - Composite Body

20813 by Midland | Metric Push-In Fitting | Union | 4mm Tube OD | Y | Composite Body

Save $2.05

$18.43

$18.43 - $18.43

$18.43

$16.38

$16.38 - $16.38

$16.38

Midland Industries
Brass Fitting - Composite Body Push-in Fitting - Union Wye

The latest generation of composite material is used in the body construction in addition to nickel-plated brass on threaded components and stainless steel on the tube gripper.

Inventory @ Manufacturers Warehouse: 114 Units

Quantity

Specifications for Variant SKU: 20813 Midland
Shape (Orientation):	Y
Ends Configuration:	4mm Push-to-Connect, 4mm Push-to-Connect, 4mm Push-to-Connect, Some Ends Match
Material(s):	Plastic, Brass
Seal Material(s):	NBR

SPECIFICATIONS

Pressure Operating Range:	0 to 220 PSI (15 bar)	Vacuum Operating Range:	0 to 29hg (-.99 bar)
Temperature:	-50 F to + 1750 F (-200 C to + 800 C)	Media:	Compressed air, Non-toxic fluids (water)

Materials of Construcion
1	Body	Composite
2	Body	Nickel Plated Brass
3	Tube Release	Acetal Resin
4	Retainer	Nickel Plated Brass
5	Gripper Ring	Stainless Steel
6	Spacer	Composite
7	Thread Packing	NBR 70
8	O-Ring	NBR 70
9	Thread Seal	NBR 70

Part Number	Tube O.D. (mm)
20813 (20-813)	4mm
20814 (20-814)	6mm
20815 (20-815)	8mm
20746 (20-746)	10mm

Dimension Data can change without notice.
