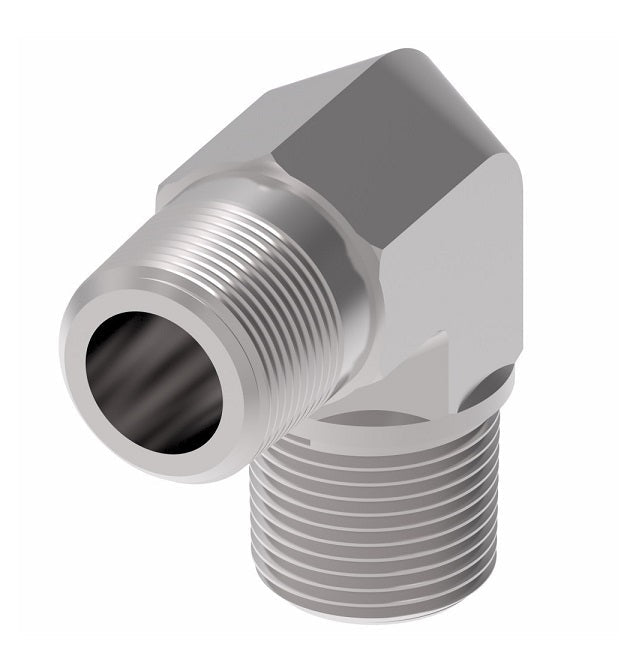

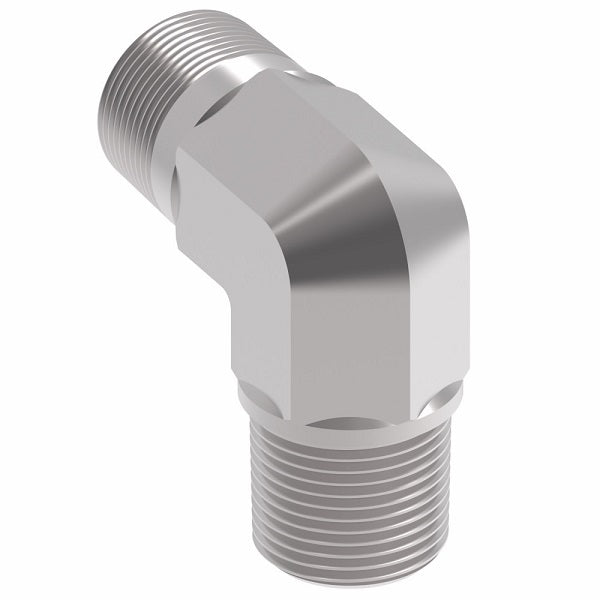

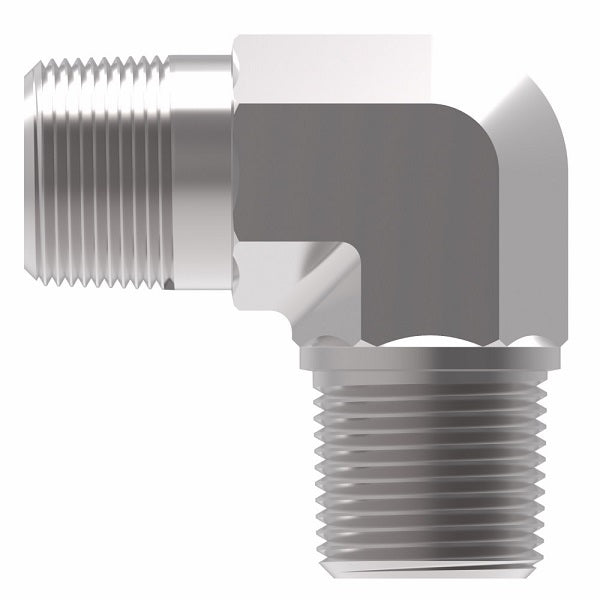

2085-2-2S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Male NPTF | Steel
2085-2-2S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Male NPTF | Steel
2085-2-2S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Male NPTF | Steel
2085-2-2S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Male NPTF | Steel

2085-2-2S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Male NPTF | Steel

$4.18 - $4.18
$4.18
$4.18 - $4.18
$4.18

Aeroquip® by Danfoss
External Pipe/Internal Pipe Adapter
Male NPTF x Male NPTF
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2085-2-2S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Male NPTF, 1/8in Male NPTF
Specifications:
  • Ref. SAE 140237
Steel
Part Number 		Thread P1 Thread P2 A B
2085-2-2S 1/8-27 1/8-27 0.78" 0.78"
2085-4-4S 1/4-18 1/4-18 1.09" 1.09"
2088-6-4S 3/8-18 1/4-18 1.22" 1.22"
2085-6-6S 3/8-18 3/8-18 1.22" 1.22"
2088-8-6S 1/2-14 3/8-18 1.47" 1.28"
2085-8-8S 1/2-14 1/2-14 1.47" 1.47"
2085-12-8S 3/4-14 1/2-14 1.59" 1.59"
2085-12-12S 3/4-14 3/4-14 1.59" 1.59"
2085-16-12S 1-11-1/2 3/4-14 1.97" 1.78"
2085-16-16S 1-11-1/2 1-11-1/2 1.97" 1.97"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
