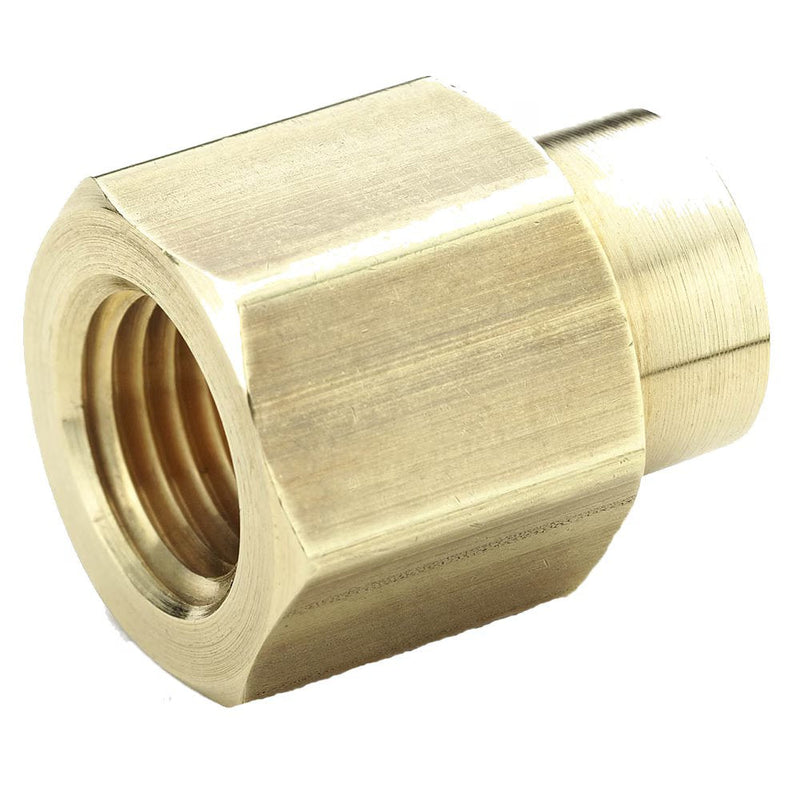

208P-8-4 by Parker | Reducer Coupling | 1/2" to 1/4" Female Pipe Thread | 1-1/16" Hex | 1.28" Length | Straight | Brass | Pack of 10

Save $13.63

$149.97

$149.97 - $149.97

$149.97

$136.34

$136.34 - $136.34

$136.34

by Parker Hannifin
Pipe Fittings:Reducer Coupling 208P

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 208P-8-4 Parker \| 10 \|
Series:	208P Series
Shape (Orientation):	Straight
Material(s):	Brass

Specification:
Product Features:	All Brass Construction Meets functional requirements of SAE J530 and SAE J531 Threads made to dryseal standards Both forgings and extrusions available
Markets:	Industrial Construction Heavy duty truck Mobile Factory/process automation
Applications:	Air Lines Water Line Cooling Lines
Temperature Range:	-65° to +250° F (-53.9° to +121.1° C)
Pressure Range:	Up to 1000 PSI (68.9 bar)


Part Number	Pipe Thread 1	Pipe Thread 2	Hex (C)	L	Flow Diameter (D)
208P-4-2	1/4"	1/8"	3/4"	.97"	.339"
208P-6-4	3/8"	1/4"	7/8"	1.16"	.339"
208P-8-4	1/2"	1/4"	1-1/16"	1.28"	.441"
208P-8-6	1/2"	3/8"	1-1/16"	1.38"	.571"
208P-12-6	3/4"	3/8"	1-3/8"	1.32"	.571"
208P-12-8	3/4"	1/8"	1-3/8"	1.50"	.703"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
