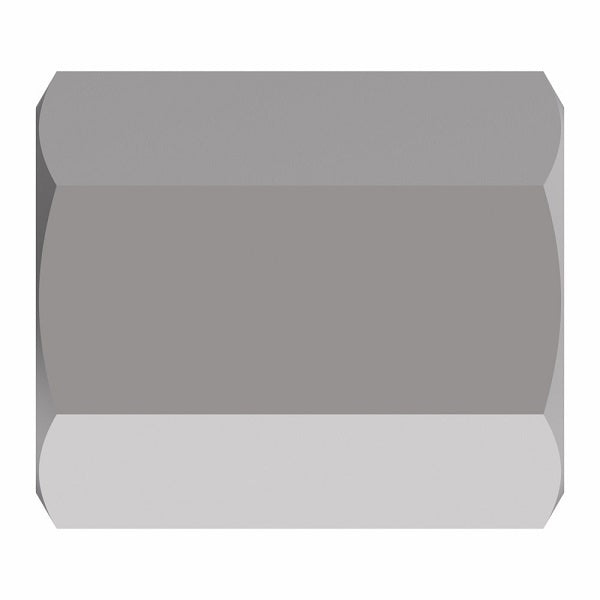

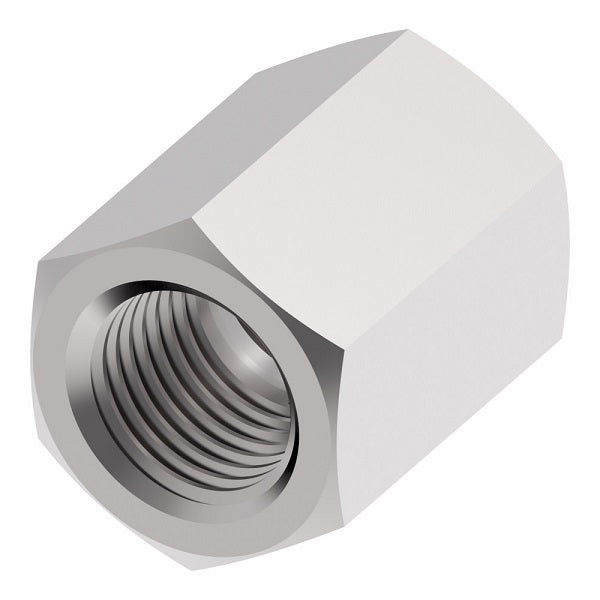

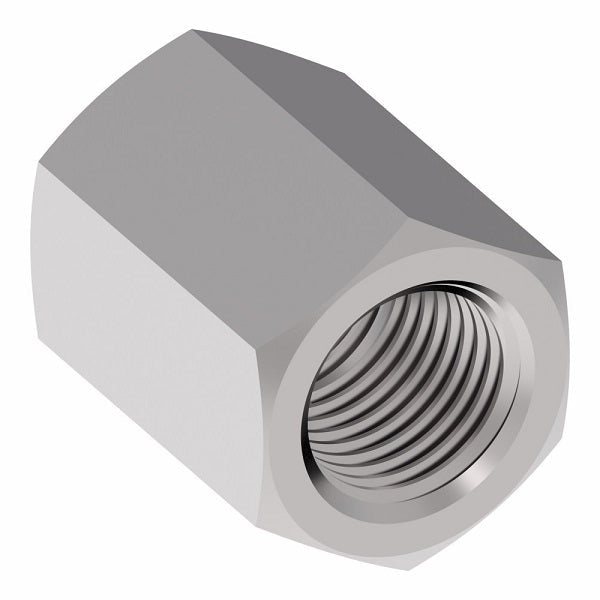

2096-4-2S Aeroquip by Danfoss | Coupling Internal Pipe Adapter | -04 Female NPTF x -02 Female NPTF | Steel

2096-4-2S Aeroquip by Danfoss | Coupling Internal Pipe Adapter | -04 Female NPTF x -02 Female NPTF | Steel

Name: 2096-4-2S Aeroquip by Danfoss | Coupling Internal Pipe Adapter | -04 Female NPTF x -02 Female NPTF | Steel
Brand: Danfoss/Eaton
SKU: 2096-4-2S Danfoss
Price: 4.92 USD
Availability: InStock

$4.92 - $4.92

$4.92

$4.92 - $4.92

$4.92

Aeroquip® by Danfoss
Coupling Internal Pipe Adapter
Female NPTF x Female NPTF
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2096-4-2S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPTF, 1/8in Female NPTF
Material(s):	Steel

Specifications:
Ref. SAE 140138


Steel Part Number	Stainless Steel Part Number	Thread P1	Thread P2	A
2096-2S	-	1/8-27	1/8-27	0.75"
2096-4-2S	259-2096-4-2	1/4-18	1/8-27	-
2096-4S	259-2096-4	1/4-18	1/4-18	1.13"
2096-6-4S	-	3/8-18	1/4-18	-
2096-6S	259-2096-6	3/8-18	3/8-18	1.13"
2096-8-4S	-	1/2-14	1/4-18	-
2096-8-6S	-	1/2-14	3/8-18	-
2096-8S	259-2096-8	1/2-14	1/2-14	1.50"
2096-12-8S	-	3/4-14	1/2-14	-
2096-12S	259-2096-12	3/4-14	3/4-14	1.53"
2096-16-12S	-	1-11-1/2	3/4-14	-
2096-16S	-	1-11-1/2	1-11-1/2	1.89"
2096-20S	259-2096-20	1-1/4-11-1/2	1-1/4-11-1/2	1.93"
2096-24S	-	1-1/2-11-1/2	1-1/2-11-1/2	1.93"
2096-32S	-	2-11-1/2	2-11-1/2	1.96"
