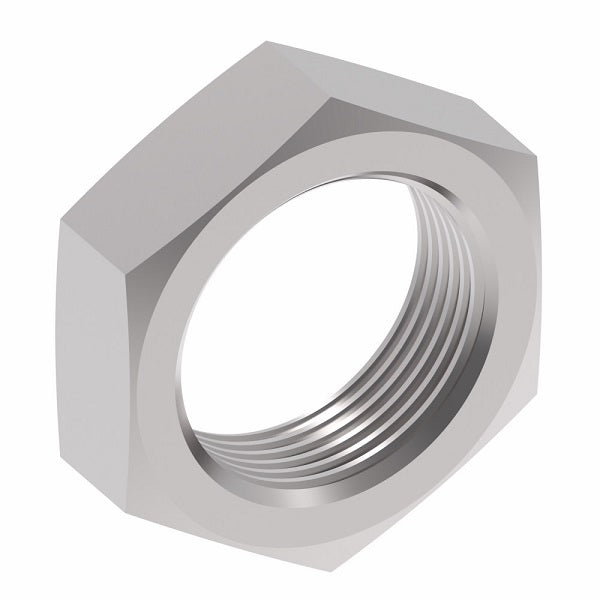

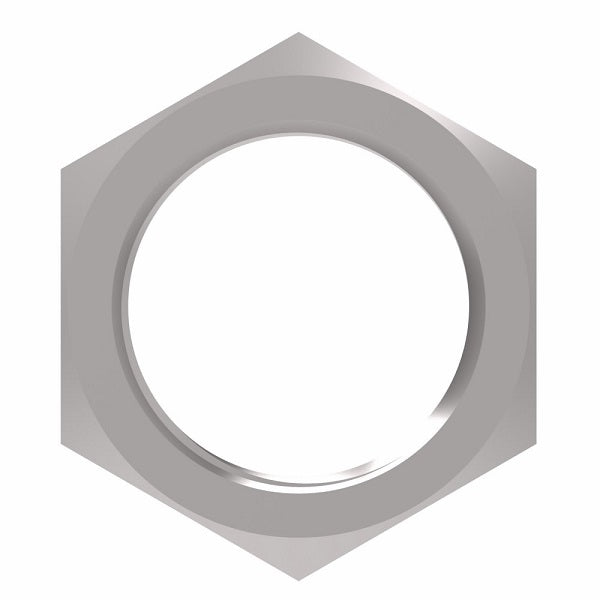

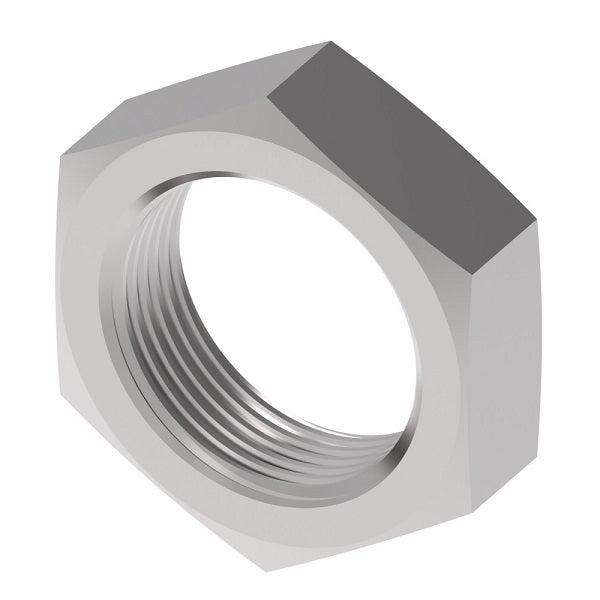

210212-24S Aeroquip by Danfoss | Bulkhead Lock Nut | -24 Size | Steel

210212-24S Aeroquip by Danfoss | Bulkhead Lock Nut | -24 Size | Steel

Name: 210212-24S Aeroquip by Danfoss | Bulkhead Lock Nut | -24 Size | Steel
Brand: Danfoss/Eaton
SKU: 210212-24S Danfoss
Price: 10.14 USD
Availability: InStock

$10.14 - $10.14

$10.14

$10.14 - $10.14

$10.14

Aeroquip® by Danfoss
Bulkhead Lock Nut

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 210212-24S Danfoss
Shape (Orientation):	No Orientation
Material(s):	Steel

Specifications:
Ref. SAE 070118


Part Number Steel	Part Number Stainless Steel	Tube O.D.	Thread T	A	B
210212-3S	-	0.19"	3/8-24	-	-
210212-4S	-	0.25"	7/16-20	0.25"	0.69"
210212-5S	-	0.31"	1/2-20	0.25"	0.75"
210212-6S	259-210212-6S	0.38"	9/16-18	0.27"	0.81"
210212-8S	259-210212-8S	0.50"	3/4-16	0.31"	1.00"
210212-10S	-	0.63"	7/8-14	0.36"	1.12"
210212-12S	259-210212-12S	0.75"	1-1/16-12	0.41"	1.38"
210212-16S	-	1.00"	1-5/16-12	0.41"	1.62"
210212-20S	-	1.25"	1-5/8-12	0.41"	1.88"
210212-24S	-	1.50"	1-7/8-12	0.41"	2.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
