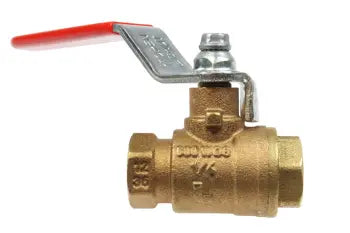

21104F by Coilhose | Ball Valve | 1/4" Size | 430 PSI | Brass

21104F by Coilhose | Ball Valve | 1/4" Size | 430 PSI | Brass

Save $7.59 Save $7.59
$18.98
$18.98 - $18.98
$18.98
$11.39
$11.39 - $11.39
$11.39
Coilhose Pneumatics - Ball Valves
Specifications for Variant SKU: 21104F Coilhose
Material(s): Brass
Overview:
  • Coilhose's full flow ball valves provide a minimum pressure drop due to the full port design. All internal passages are "in line" with the piping and are larger than pipe ports in the fully open position. These ball valves can handle a full range of liquids and gases from -45° F to 375° F. Refer to material specification of internal components in order to determine the type of chemicals and gases which can be safely used with the valves. Ball valves are rated to 850 PSI working pressure depending on the temperatures and the size of the valve. Refer to temperature curves plotted over pressure verses size of valve charts.

Handle: Die Cast Aluminum Valve Body: Forged Brass
Ball: Hard Chrome-Plated Forged Seals: Brass Teflon (P.T.F.E.)
Stem: Brass

Model Size WorkingPressurePSI-WOG** Dimensions
A B C D E
21104F 1/4" 430 1.8" 1.0" 1.6" 3.1" 0.4"
21106F 3/8" 430 1.8" 1.0" 1.6" 3.1" 0.4"
21108F 1/2" 290 2.2" 1.2" 1.7" 3.1" 0.6"
21112F 3/4" 290 2.7" 1.7" 2.0" 4.3" 0.8"
21116F 1" 260 3.1" 1.9" 2.1" 4.3" 1.0"
21120F 1-1/4" 210 3.6" 2.3" 2.4" 5.4" 1.2"
21124F 1-1/2" 210 3.9" 2.8" 3.4" 6.2" 1.6"
** WOG = Water, Oil, Gas
