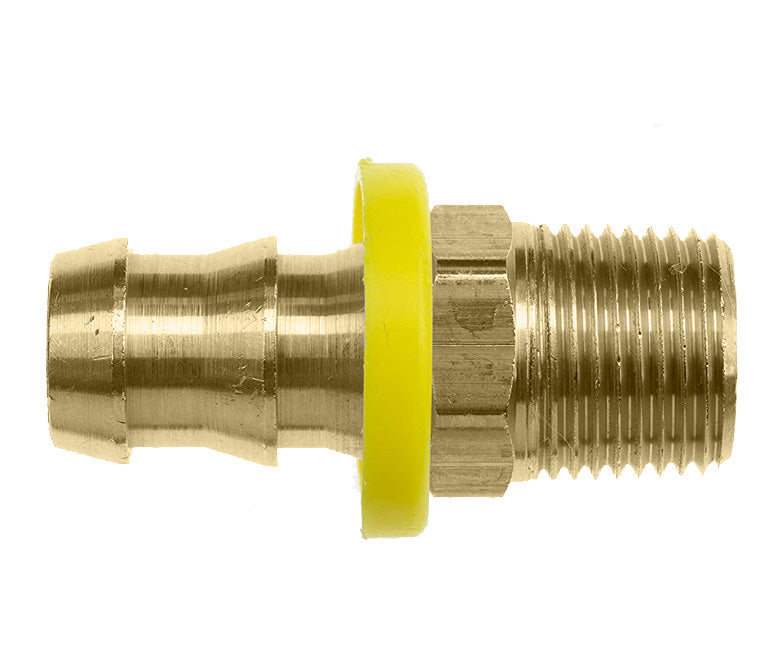

2113-08-12-B by Brennan Inc. | -08 Push Lock x -12 Male Pipe | Straight | Brass

2113-08-12-B by Brennan Inc. | -08 Push Lock x -12 Male Pipe | Straight | Brass

$6.09 - $6.09
$6.09
$6.44
$6.44 - $6.44
$6.44

Brennan Inc.
Brass Fittings: 2113 - Push Lock x Male Pipe Straight
Specifications for Variant SKU: 2113-08-12-B Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 3/4in Male NPTF
Material(s): Brass
Part Number Material H1 Hose I.D. A2NPTF L1Length LLength CHex
2113-04-02-B Brass 1/4" 1/8-27" 0.870" 1.430" 0.500"
2113-04-04-B Brass 1/4" 1/4-18" 0.866" 1.661" 0.562"
2113-04-06-B Brass 1/4" 3/8-18" 0.700" 1.430" 0.687"
2113-05-02-B Brass 5/16" 1/8-27" 0.866" 1.416" 0.500"
2113-05-04-B Brass 5/16" 1/4-18" 0.871" 1.660" 0.562"
2113-06-02-B Brass 3/8" 1/8-27" 0.964" 1.575" 0.562"
2113-06-04-B Brass 3/8" 1/4-18" 0.964" 1.750" 0.562"
2113-06-06-B Brass 3/8" 3/8-18" 0.965" 1.772" 0.688"
2113-06-08-B Brass 3/8" 1/2-14" 0.964" 2.087" 0.875"
2113-08-04-B Brass 1/2" 1/4-18" 0.964" 1.770" 0.687"
2113-08-06-B Brass 1/2" 3/8-18" 0.970" 1.760" 0.688"
2113-08-08-B Brass 1/2" 1/2-14" 1.000" 1.860" 0.875"
2113-08-12-B Brass 1/2" 3/4-14" 0.970" 1.970" 1.062"
2113-10-06-B Brass 5/8" 3/8-18" 1.450" 2.340" 0.750"
2113-10-08-B Brass 5/8" 1/2-14" 1.500" 2.550" 0.875"
2113-10-12-B Brass 5/8" 3/4-14" 1.500" 2.500" 1.062"
2113-12-08-B Brass 3/4" 1/2-14" 1.460" 2.450" 0.875"
2113-12-12-B Brass 3/4" 3/4-14" 1.400" 2.450" 1.062"
2113-16-16-B Brass - - - - -

2113-04-04-SS Stainless Steel 1/4" 1/4-18" 0.866" 1.661" 0.562"
2113-06-04-SS Stainless Steel 3/8" 1/4-18" 0.964" 1.750" 0.562"
2113-06-06-SS Stainless Steel 3/8" 3/8-18" 0.965" 1.772" 0.688"
2113-08-06-SS Stainless Steel 1/2" 3/8-18" 0.970" 1.760" 0.688"
2113-08-08-SS Stainless Steel 1/2" 1/2-14" 1.000" 1.860" 0.875"
2113-12-12-SS Stainless Steel 3/4" 3/4-14" 1.400" 2.450" 1.062"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
