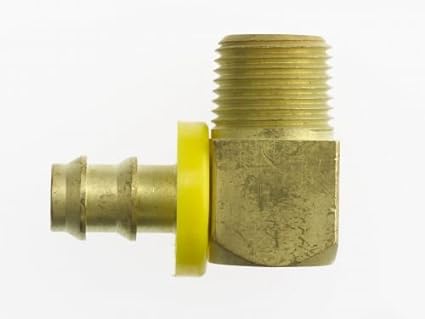

2120-04-02-B by Brennan Inc. | -04 Push Lock x -02 Male Pipe | 90° Elbow | Brass

2120-04-02-B by Brennan Inc. | -04 Push Lock x -02 Male Pipe | 90° Elbow | Brass

$6.38 - $6.38
$6.38
$6.75
$6.75 - $6.75
$6.75

Brennan Inc.
Brass Fittings: 2120 - Push Lock x Male Pipe 90° Elbow
Specifications for Variant SKU: 2120-04-02-B Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Hose Barb, 1/8in Male NPTF
Material(s): Brass
Part Number Material H1 Hose I.D. A2 NPTF LLength NLength YFlats
2120-04-02-B Brass 1/4" 1/8-27" 1.120" 0.780" 0.375"
2120-04-04-B Brass 1/4" 1/4-18" 1.010" 0.900" 0.562"
2120-06-04-B Brass 3/8" 1/4-18" 1.140" 0.908" 0.562"
2120-06-06-B Brass 3/8" 3/8-18" 1.205" 0.905" 0.688"
2120-06-08-B Brass 3/8" 1/2-14" 1.310" 1.185" 0.875"
2120-08-06-B Brass 1/2" 3/8-18" 1.387" 0.900" 0.688"
2120-08-08-B Brass 1/2" 1/2-14" 1.490" 1.180" 0.875"
2120-12-12-B Brass 3/4" 3/4-14" 2.245" 1.350" 0.870"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
