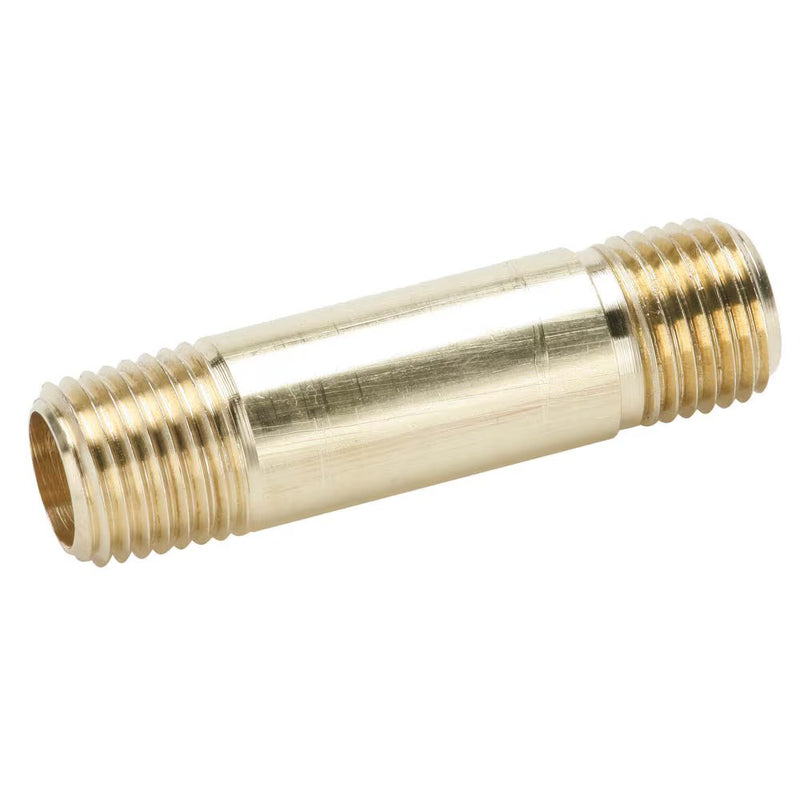

215PNL-4-20 by Parker | Nipple | 1/4" Male Pipe Thread | 2" Length | Long | Straight | Brass | Pack of 25

215PNL-4-20 by Parker | Nipple | 1/4" Male Pipe Thread | 2" Length | Long | Straight | Brass | Pack of 25

Save $8.24 Save $8.24
$90.67
$90.67 - $90.67
$90.67
$82.43
$82.43 - $82.43
$82.43

by Parker Hannifin
Pipe Fittings:Long Nipple 215PNL

Package Quantity: 25 Units

Specifications for Variant SKU: 215PNL-4-20 Parker | 25 |
Series: 215PNL Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Long
Product Features:
  • All Brass Construction
  • Meets functional requirements of SAE J530 and SAE J531
  • Threads made to dryseal standards
  • Both forgings and extrusions available
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
  • Factory/process automation
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -65° to +250° F (-53.9° to +121.1° C)
Pressure Range: Up to 1000 PSI (68.9 bar)
Part Number Pipe Thread L Flow Diameter (D)
215PNL-2-15 1/8" 1-1/2" .250"
215PNL-4-15 1/4" 1-1/2" .375"
215PNL-6-15 3/8" 1-1/2" .500"
215PNL-8-15 1/2" 1-1/2" .625"
215PNL-2-20 1/8" 2" .250"
215PNL-4-20 1/4" 2" .375"
215PNL-6-20 3/8" 2" .500"
215PNL-8-20 1/2" 2" .625"
215PNL-2-25 1/8" 2-1/2" .250"
215PNL-4-25 1/4" 2-1/2" .375"
215PNL-6-25 3/8" 2-1/2" .500"
215PNL-8-25 3/8" 2-1/2" .625"
215PNL-2-30 1/8" 3" .250"
215PNL-4-30 1/4" 3" .375"
215PNL-6-30 3/8" 3" .500"
215PNL-8-30 3/8" 3" .625"
215PNL-2-35 1/8" 3-1/2" .250"
215PNL-4-35 1/4" 3-1/2" .375"
215PNL-6-35 3/8" 3-1/2" .500"
215PNL-8-35 1/2" 3-1/2" .625"
