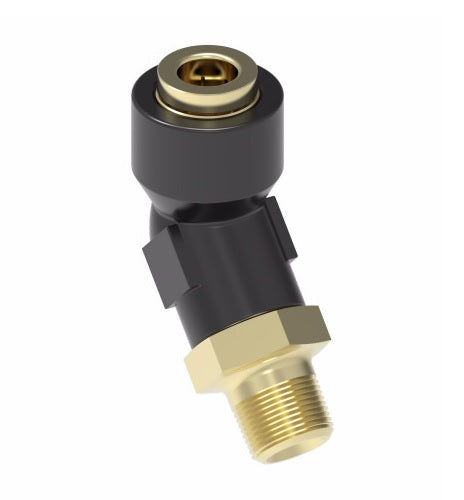

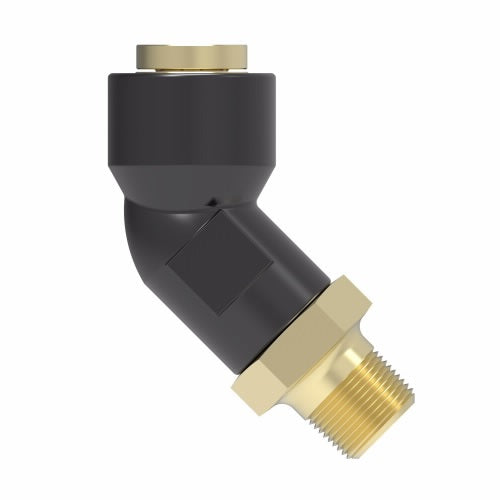

217-38606-03 by Danfoss | Quick Connect Air Brake Adapter | Q-CAB Connection to Male Pipe 45° Elbow | 3/8" Tube OD x 3/8" Male Pipe | Composite & Brass
217-38606-03 by Danfoss | Quick Connect Air Brake Adapter | Q-CAB Connection to Male Pipe 45° Elbow | 3/8" Tube OD x 3/8" Male Pipe | Composite & Brass
217-38606-03 by Danfoss | Quick Connect Air Brake Adapter | Q-CAB Connection to Male Pipe 45° Elbow | 3/8" Tube OD x 3/8" Male Pipe | Composite & Brass
217-38606-03 by Danfoss | Quick Connect Air Brake Adapter | Q-CAB Connection to Male Pipe 45° Elbow | 3/8" Tube OD x 3/8" Male Pipe | Composite & Brass

217-38606-03 by Danfoss | Quick Connect Air Brake Adapter | Q-CAB Connection to Male Pipe 45° Elbow | 3/8" Tube OD x 3/8" Male Pipe | Composite & Brass

$39.20 - $39.20
$39.20
$39.20 - $39.20
$39.20

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Q-CAB Connection to Male Pipe
Specifications for Variant SKU: 217-38606-03 Danfoss
Shape (Orientation): 45 Degree
Material(s): Composite & Brass
Seal Material(s): Ethylene Propylene
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
About:
  • The Q-CAB 217 series is made of glass filled PBT for the very best chemical and UV resistance of any composite air brake fitting in the market today. In addition, the composite Q-CAB offers the same assured sealing when used with SAE J844 Type A & B nylon tubing. The 217 series fittings are also qualified with the unique Synflex® Eclipse™ multi-layer air brake tubing - the toughest and most innovative air brake tubing in the industry.
Applications:
  • Medium and heavy duty truck, bus and mobile off-highway, air brake systems.
Features:
  • Composite body with exceptional strength for impact resistance.
  • Brass tube support for full air flow.
  • All threads meet SAE J476.
  • A molded wrench flat design makes for quick and easy assembly.
  • The same excellent quality collet used on the 1800 series connectors, is used on the 217 series composite Q-CAB.
Benefits:
  • Exceeds cold impact test requirements and has been field tested to the extremes, from the Artic to the desert.
  • Tube stays in place and allows ease of tube connection with low insertion force.
  • The composite design allows positioning of the fitting after assembly.
Tools:
  • Q-CAB Collet Service Tool: 1800-T
  • Q-CAB Tube Release Kit: 1800TRK
Brass & Composite
Part Number 		Tube O.D. Male Pipe Thread D1 M N Hex Collet Repair Kit
Part Number
217-35004-03 1/4" 1/8-27 0.19" 0.78" 1.12" 9/16" 1800KX4
217-35006-03 3/8" 1/4-18 0.28" 1.00" 1.29" 3/4" 1800KX6
217-38606-03 3/8" 3/8-18 0.41" 1.00" 1.29" 3/4" 1800KX6
217-35008-03 1/2" 3/8-18 0.41" 1.10" 1.26" 7/8" 1800KX8
217-38808-03 1/2" 1/2-14 0.53" 1.10" 1.45" 7/8" 1800KX8
217-38610-03 5/8" 3/8-18 0.41" 1.34" 1.30" 1.00" 1800KX10
217-35010-03 5/8" 1/2-14 0.53" 1.34" 1.52" 1.00" 1800KX10
