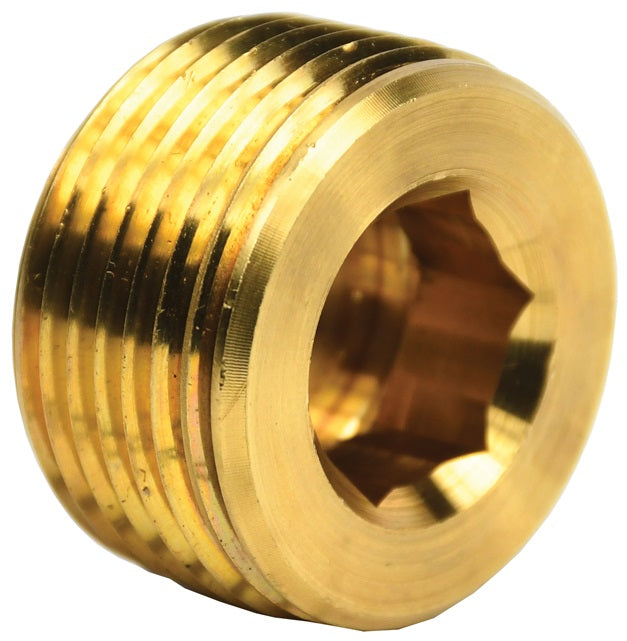

2191600C by Dixon Valve | Hex Socket Plug | 1" Male NPTF | Lead-Free Brass 260/270

2191600C by Dixon Valve | Hex Socket Plug | 1" Male NPTF | Lead-Free Brass 260/270

Save $7.23 Save $7.23
$17.35
$17.35 - $17.35
$17.35
$10.12
$10.12 - $10.12
$10.12

Dixon Valve
Pipe Fitting | Hex Socket Plug | Male NPTF

For closing and terminating the end of a pipe.

Hexagonal countersunk head for increased leverage and use with a wrench.
Specifications for Variant SKU: 2191600C Dixon
Series: 219 Series
Shape (Orientation): No Orientation
Ends Configuration: 1in Male NPTF
Material(s): 316 Stainless Steel
Special Properties: Lead Free
Specifications:
  • Lead-free per NSF/ANSI 372, Brass Alloy 270.
  • Reference SAE J531.
  • Material per SAE J463.
  • Parts are RoHS and SWDA compliant.
Safety Notes:
  • 300 PSI maximum.
  • Male NPTF threads to mate with compatible female thread - sealant may be required if mating with NPT threads.
Lead-Free Brass 260/270
Part Number		 Previous Part Number 316 Stainless Steel
Part Number
(NPT THREADS) 		Male NPTF
2190200C 219-0200 2190200S 1/8"
2190400C 219-0400 2190400SS 1/4"
2190600C 219-0600 2190600SS 3/8"
2190800C 219-0800 2190800SS 1/2"
2191200C 219-1200 2191200SS 3/4"
2191600C - 2191600SS 1"
