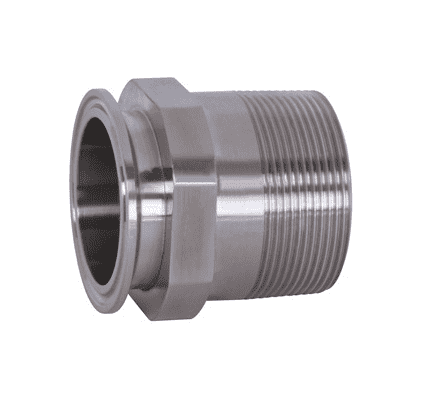

21MP-G10025 Dixon Valve 304 Stainless Steel Sanitary Clamp x Male NPT Adapter - 1" Tube OD - 1/4" NPT

21MP-G10025 Dixon Valve 304 Stainless Steel Sanitary Clamp x Male NPT Adapter - 1" Tube OD - 1/4" NPT

$40.31 - $40.31
$40.31
$40.69
$40.69 - $40.69
$40.69

Dixon Sanitary Fittings Sanitary Clamp Adapter - Clamp x Male NPT Adapter - 304 Stainless Steel
Specifications for Variant SKU: 21MP-G10025 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Sanitary Clamp End, 1/4in Male NPT
Material(s): 304 Stainless Steel
Part Number Tube OD Male NPT Size Dimensions
 Weight (Lbs.)
A B
21MP-G10025 1" 1/4" 2.160" - 1.0000
21MP-G100375 1" 3/8" 2.160" - 0.2400
21MP-G10050 1" 1/2" 2.190" .782" 0.8800
21MP-G10075 1" 3/4" 2.190" .794" 0.6100
21MP-G100 1" 1" 2.250" 0.985" 0.7300
21MP-G100125 1" 1-1/4" 2.440" 1.009" 1.1900
21MP-G100150 1" 1-1/2" 2.440" 1.025" 1.1100
21MP-G100200 1" 2" 2.630" 1.058" 2.3600
21MP-G15025 1-1/2" 1/4" 2.160" - 0.9450
21MP-G150375 1-1/2" 3/8" 2.160" 0.600" 0.7900
21MP-G15050 1-1/2" 1/2" 2.190" 0.782" 0.2500
21MP-G15075 1-1/2" 3/4" 2.190" 0.794" 0.5600
21MP-G150100 1-1/2" 1" 2.440" 0.985" 0.6200
21MP-G150125 1-1/2" 1-1/4" 2.440" 1.009" 0.5700
21MP-G150 1-1/2" 1-1/2" 2.250" 1.025" 0.8500
21MP-G150200 1-1/2" 2" 2.630" 1.058" 1.7000
21MP-G150250 1-1/2" 2-1/2" 3.280" - 1.2500
21MP-G20050 2" 1/2" 2.190" 0.782" 1.6500
21MP-G20075 2" 3/4" 2.190" 0.794" 1.7400
21MP-G200100 2" 1" 2.470" 0.985" 0.8200
21MP-G200150 2" 1-1/2" 2.630" 1.009" 0.7400
21MP-G200125 2" 1-1/4" - - 1.1650
21MP-G200 2" 2" 2.640" 1.058" 1.3100
21MP-G200250 2" 2-1/2" 3.130" - 2.3500
21MP-G200300 2" 3" 3.50" - 4.6900
21MP-G200400 2" 4" 3.50" - 1.8700
21MP-G250100 2-1/2" 1" 2.780" 0.782" 1.8500
21MP-G250150 2-1/2" 1-1/2" 2.780" 1.025" 1.8400
21MP-G250200 2-1/2" 2" 2.780" 1.058" 1.6000
21MP-G250 2-1/2" 2-1/2" 2.880" 1.571" 1.5650
21MP-G250300 2-1/2" 3" 3.690" - 4.0000
21MP-G300150 3" 1-1/2" 3.000" 1.009" 3.9200
21MP-G300200 3" 2" 3.000" 1.058" 2.9350
21MP-G300250 3" 2-1/2" 3.000" - 1.5000
21MP-G300 3" 3" 3.070" 1.634" 2.4600
21MP-G300400 3" 4" 3.500" - 6.6500
21MP-G400250 4" 2-1/2" - - 2.8800
21MP-G400300 4" 3" 3.810" - 2.8600
21MP-G400 4" 4" 3.160" 1.734" 3.4900
21MP-G600 6" 6" 4.500" - 7.9500
