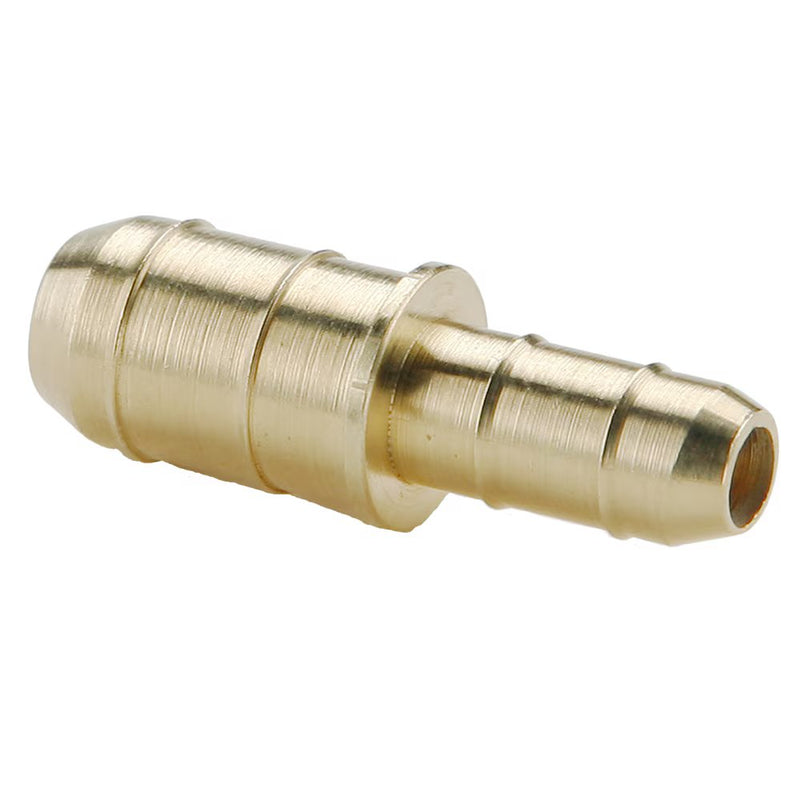

22-6-8 by Parker | Dubl-Barb® Fittings | 3/8" to 1/2" Tube OD x .250" to .375" Tube ID | 1.06" Length | Straight | Brass | Pack of 25

Save $9.08

$99.87

$99.87 - $99.87

$99.87

$90.79

$90.79 - $90.79

$90.79

by Parker Hannifin
Dubl-Barb® Fittings:Union Reducer 22

Package Quantity: 25 Units

Quantity

Specifications for Variant SKU: 22-6-8 Parker \| 25 \|
Brand:	Dubl-Barb®
Series:	22 Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Vibration Resistance

Specification:
Product Features:	Compact One piece No clamp required Good vibration resistance
Markets:	Pneumatic Environmental control
Applications:	Pneumatic Systems Climate Control Humidifiers Filters
Temperature Range:	See Chart Below

Pressure Range:	See Chart Below

Compatible Tubing:	Polyethylene


Part Number	Tube OD	Tube ID	L	M	N	Flow Diameter (D)
22-4-5/32	1/4" X 5/32"	.170" X .096"	.72"	.41"	.28"	.062"
22-4-6	1/4" X 3/8"	.170" X .250"	.88"	.44"	.41"	.120"
22-4-8	1/4" X 1/2"	.170" X .375"	1.06"	.56"	.41"	.120"
22-6-8	3/8" X 1/2"	.250" X .375"	1.06"	.56"	.44"	.187"
