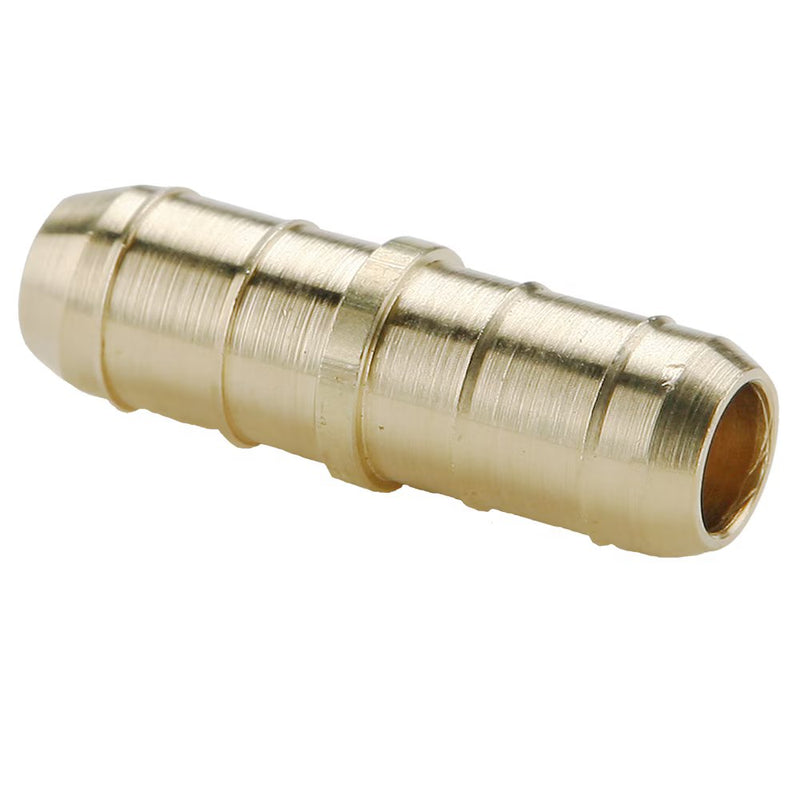

22-8 by Parker | Dubl-Barb® Fittings | 1/2" Tube OD x .375" Tube ID | 1.19" Length | Straight | Brass | Pack of 25

22-8 by Parker | Dubl-Barb® Fittings | 1/2" Tube OD x .375" Tube ID | 1.19" Length | Straight | Brass | Pack of 25

Save $9.59 Save $9.59
$105.44
$105.44 - $105.44
$105.44
$95.85
$95.85 - $95.85
$95.85

by Parker Hannifin
Dubl-Barb® Fittings:Union 22

Package Quantity: 25 Units

Specifications for Variant SKU: 22-8 Parker | 25 |
Brand: Dubl-Barb®
Series: 22 Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Vibration Resistance
Product Features:
  • Compact
  • One piece
  • No clamp required
  • Good vibration resistance
Markets:
  • Pneumatic
  • Environmental control
Applications:
  • Pneumatic Systems
  • Climate Control
  • Humidifiers
  • Filters
Specification:
Temperature Range: See Chart Below
Pressure Range: See Chart Below
Compatible Tubing:
  • Polyethylene
Part Number Tube OD Tube ID L M Flow Diameter (D)
22-5/32 5/32" X 5/32" .096" X .096" .59" .28" .062"
22-4 1/4" X 1/4" .170" X .170" .84" .41" .120"
22-6 3/8" X 3/8" .250" X .250" .94" .44" .187"
22-8 1/2" X 1/2" .375" X .375" 1.19" .56" .312"
