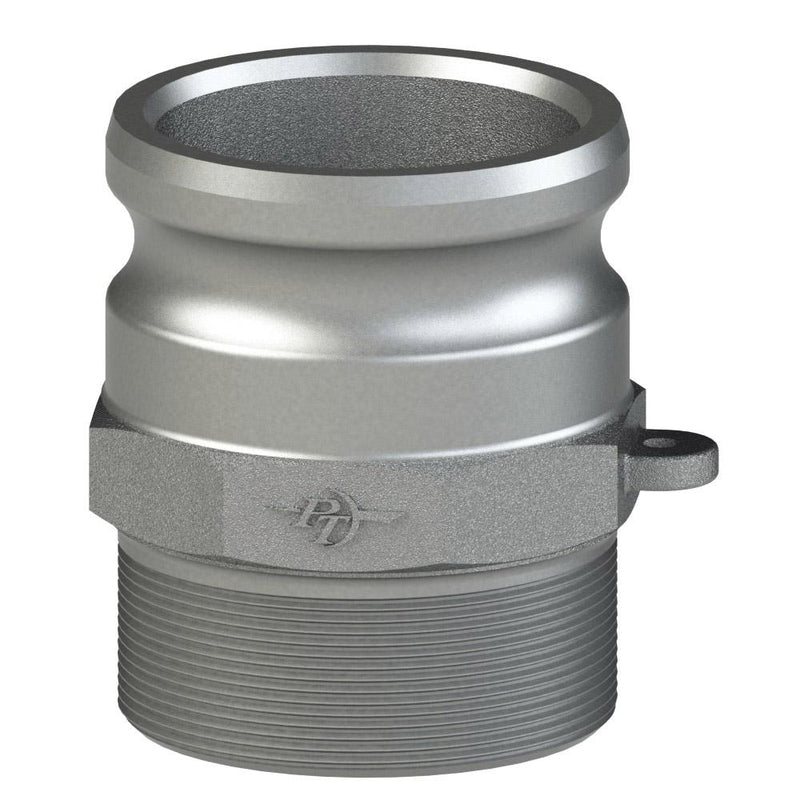

2200610 (10F) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type F | 1" Adapter x 1" Male NPT | Monel

Name: 2200610 (10F) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type F | 1" Adapter x 1" Male NPT | Monel
Brand: PT-Coupling
SKU: 2200610 PT-Coupling
Price: 106.61 USD
Availability: InStock

Save $13.33

$119.94

$119.94 - $119.94

$119.94

$106.61

$106.61 - $106.61

$106.61

PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Monel

These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.

Made in the USA

Quantity

Specifications for Variant SKU: 2200610 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type F
Ends Configuration:	1in Male Cam & Groove, 1in Male NPT
Material(s):	Monel

Features & Applications:
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid. Made in the USA


Part Name	Item #	Adapter Size	Male NPT Thread	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Max. Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
10F	2200610	1"	1"	2.89"	1.99"	0.85"	1.75"	0.34"	250 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
