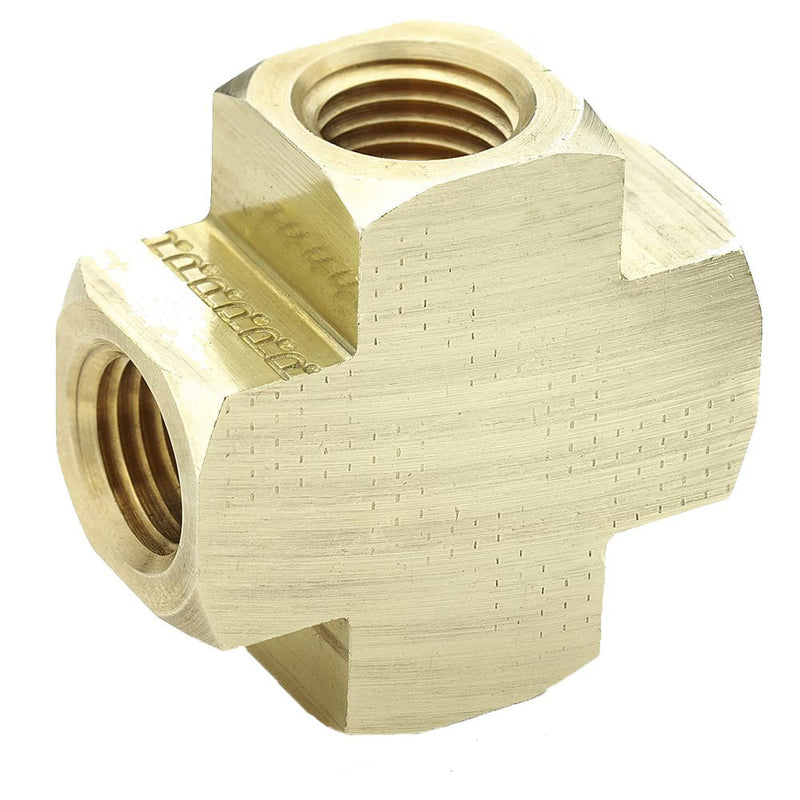

2205P-4 by Parker | 1/4" Female Pipe Thread | 1.50" Length | Cross | Brass | Pack of 10

2205P-4 by Parker | 1/4" Female Pipe Thread | 1.50" Length | Cross | Brass | Pack of 10

Save $10.67 Save $10.67
$117.38
$117.38 - $117.38
$117.38
$106.71
$106.71 - $106.71
$106.71

by Parker Hannifin
Pipe Fittings:Cross 2205P

Package Quantity: 10 Units

Specifications for Variant SKU: 2205P-4 Parker | 10 |
Series: 2205P Series
Shape (Orientation): Cross
Material(s): Brass
Product Features:
  • All Brass Construction
  • Meets functional requirements of SAE J530 and SAE J531
  • Threads made to dryseal standards
  • Both forgings and extrusions available
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
  • Factory/process automation
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -65° to +250° F (-53.9° to +121.1° C)
Pressure Range: Up to 1000 PSI (68.9 bar)
Part Number Pipe Thread M Flow Diameter (D)
2205P-2 1/8" .53" .339"
2205P-4 1/4" .75" .441"
2205P-6 3/8" .81" .571"
2205P-8 1/2" 1.07" .703"
2205P-12 3/4" 1.14" .906"
