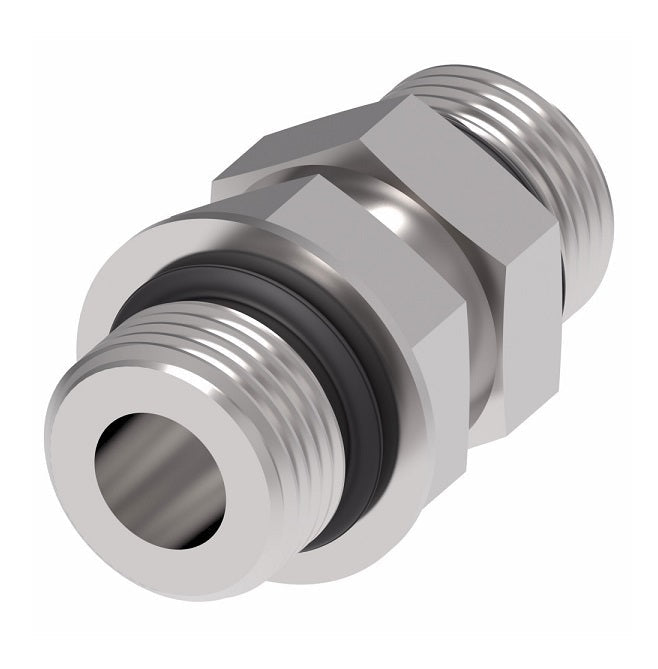

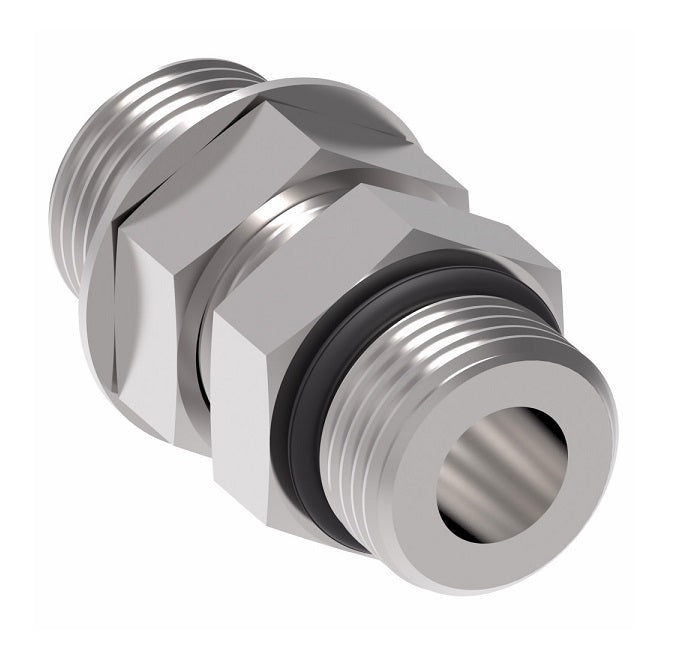

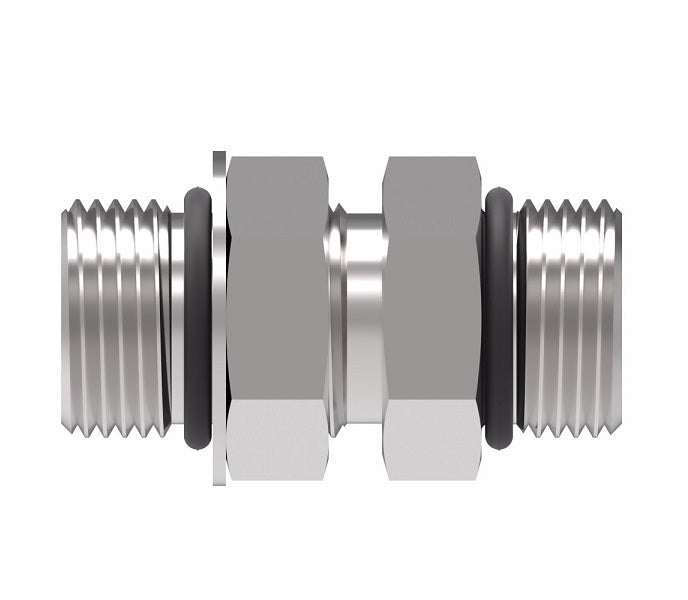

2220-16-16S Aeroquip by Danfoss | SAE O-Ring Boss/Adjustable SAE O-Ring Boss (ORB) Adapter | -16 Male SAE O-Ring Boss x -16 Male SAE O-Ring Boss | Steel

2220-16-16S Aeroquip by Danfoss | SAE O-Ring Boss/Adjustable SAE O-Ring Boss (ORB) Adapter | -16 Male SAE O-Ring Boss x -16 Male SAE O-Ring Boss | Steel

Name: 2220-16-16S Aeroquip by Danfoss | SAE O-Ring Boss/Adjustable SAE O-Ring Boss (ORB) Adapter | -16 Male SAE O-Ring Boss x -16 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: 2220-16-16S Danfoss
Price: 45.49 USD
Availability: InStock

$45.49 - $45.49

$45.49

$45.49 - $45.49

$45.49

Aeroquip® by Danfoss
SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket)

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 2220-16-16S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Male O-Ring Boss, 1in Male O-Ring Boss
Material(s):	Steel

Construction:
Buna-N O-Rings are standard.


Steel Part Number	Thread T1	A	B	D Hole	E Hex	F Hex
2220-4-4S	7/16-20	1.37"	0.38"	0.17"	0.56"	0.56"
2220-6-6S	9/16-18	1.49"	0.39"	0.30"	0.69"	0.69"
2220-8-8S	3/4-16	1.75"	0.44"	0.39"	0.88"	0.88"
2220-10-10S	7/8-14	2.04	0.50"	0.48"	1.00"	1.00"
2220-12-12S	1-1/16-12	2.13"	0.59"	0.61"	1.25"	1.25"
2220-16-16S	1-5/16-12	2.36"	0.59"	0.84"	1.50"	1.50"
2220-20-20S	1-5/8-12	2.32"	0.59"	1.08"	1.88"	1.88"
2220-24-24S	1-7/8-12	2.48"	0.59"	1.32"	2.13"	2.13"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
