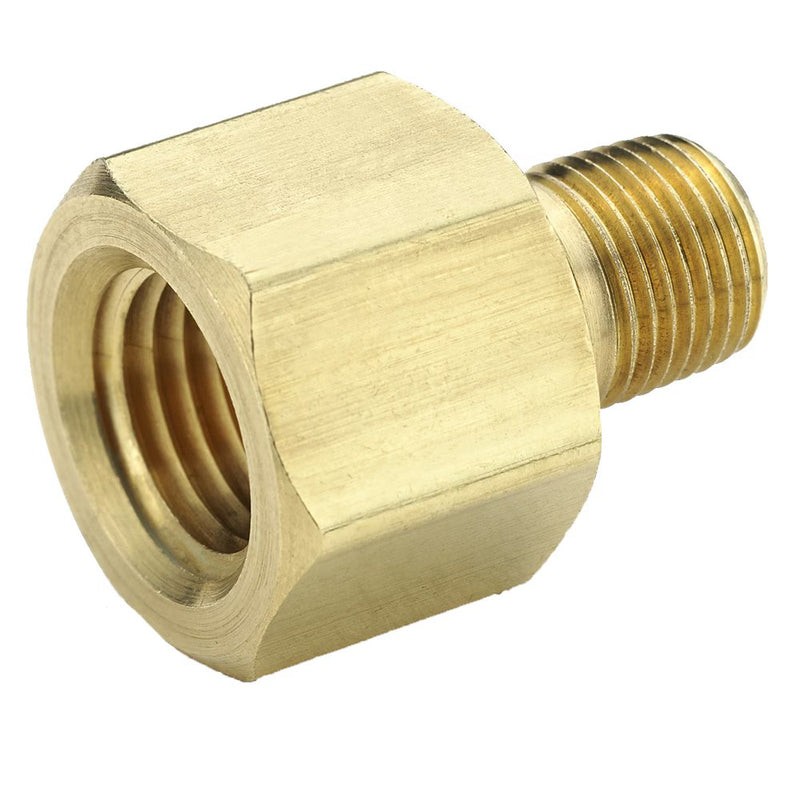

222P-4-2 by Parker | Legris Reducer | 1/4" Male NPTF Thread x 1/8" Female NPTF Thread | 3/4" Hex | 1.06" Length | Straight | Brass | Pack of 25

222P-4-2 by Parker | Legris Reducer | 1/4" Male NPTF Thread x 1/8" Female NPTF Thread | 3/4" Hex | 1.06" Length | Straight | Brass | Pack of 25

Save $50.55 Save $50.55
$126.38
$126.38 - $126.38
$126.38
$75.83
$75.83 - $75.83
$75.83

by Parker Hannifin
Brass Adapters:222P Reducer, Female/Male NPTF Thread

Package Quantity: 25 Units

Specifications for Variant SKU: 222P-4-2 Parker | 25 |
Series: 222P Series
Shape (Orientation): Straight
Material(s): Brass
Adapters and Manifolds:
Part Number 1 Pipe Thread 2 Pipe Thread Hex (C) L Flow Diameter (D)
222P-2-2 1/8" 1/8" 9/16" .88" .220"
222P-4-2 1/4" 1/8" 3/4" 1.06" .220"
222P-4-4 1/4" 1/4" 3/4" 1.25" .314"
222P-6-2 3/8" 1/8" 7/8" 1.10" .220"
222P-6-4 3/8" 1/4" 7/8" 1.25" .314"
222P-6-6 3/8" 3/8" 7/8" 1.25" .440"
222P-8-4 1/2" 1/4" 1" 1.47" .314"
222P-8-6 1/2" 3/8" 1-1/16" 1.47" .440"
222P-8-8 1/2" 1/2" 1-1/16" 1.66" .564"
222P-12-6 3/4" 3/8" 1-3/8" 1.50" .440"
222P-12-8 3/4" 1/2" 1-3/8" 1.69" .564"
222P-12-12 3/4" 3/4" 1-3/8" 1.69" .752"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
