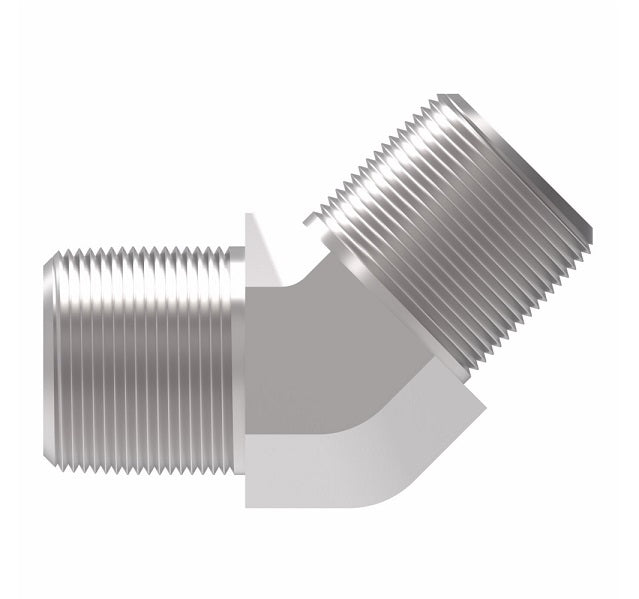

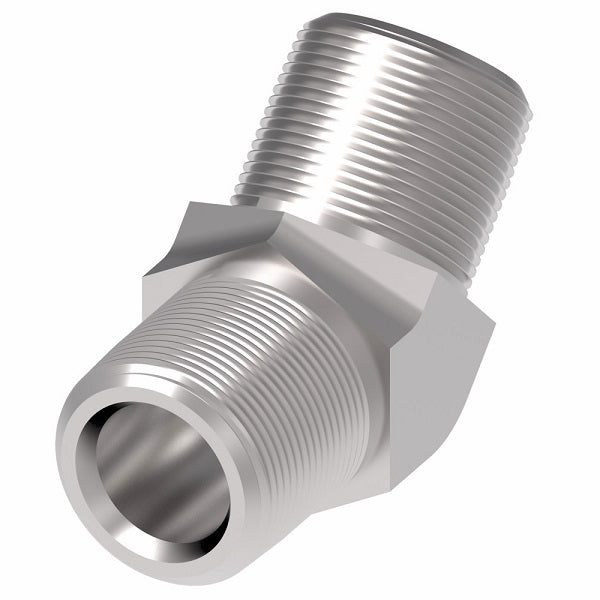

2247-4-4S Aeroquip by Danfoss | External Pipe 45° Elbow Adapter | -04 Male NPTF x -04 Male NPTF | Steel
2247-4-4S Aeroquip by Danfoss | External Pipe 45° Elbow Adapter | -04 Male NPTF x -04 Male NPTF | Steel
2247-4-4S Aeroquip by Danfoss | External Pipe 45° Elbow Adapter | -04 Male NPTF x -04 Male NPTF | Steel
2247-4-4S Aeroquip by Danfoss | External Pipe 45° Elbow Adapter | -04 Male NPTF x -04 Male NPTF | Steel

2247-4-4S Aeroquip by Danfoss | External Pipe 45° Elbow Adapter | -04 Male NPTF x -04 Male NPTF | Steel

$13.77 - $13.77
$13.77
$13.77 - $13.77
$13.77

Aeroquip® by Danfoss
External Pipe Adapter
Male NPTF x Male NPTF
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2247-4-4S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Male NPTF, 1/4in Male NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 140337
Steel
Part Number 		Thread P1 Thread P2 A B
2247-2-2S 1/8-27 1/8-27 0.67" 0.67"
2247-4-4S 1/4-18 1/4-18 0.86" 0.86"
2247-6-4S 3/8-18 1/4-18 0.95" 0.95"
2247-6-6S 3/8-18 3/8-18 0.95" 0.95"
2247-8-8S 1/2-14 1/2-14 1.13" 1.17"
2247-12-12S 3/4-14 3/4-14 1.17" 1.20"
2247-16-16S 1-11-1/2 1-11-1/2 1.20" 1.48"
2247-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 1.88" 1.54"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
