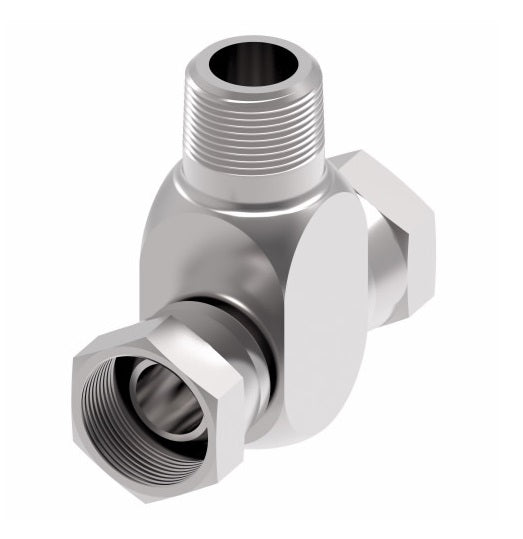

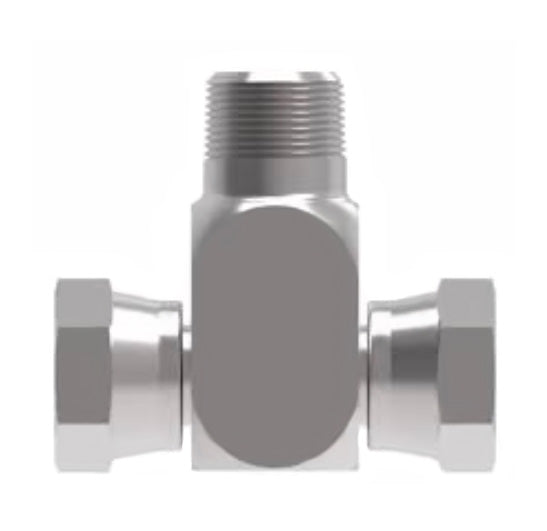

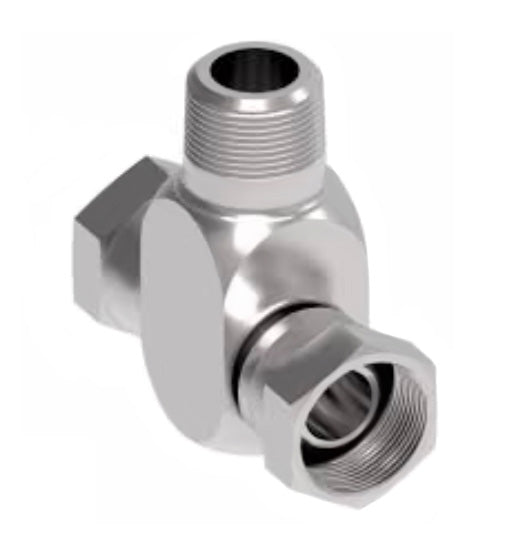

2254-6-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Branch Tee Adapter | -06 Female NPSM x -06 Female NPSM x -08 Male NPTF | Steel

Original price $51.31 - Original price $51.31
Original price
$51.31
$51.31 - $51.31
Current price $51.31

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/External Pipe Branch Tee Adapter
Female NPSM x Female NPSM x Male NPTF

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 2254-6-8S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/8in Female NPSM, 3/8in Female NPSM, 1/2in Male NPTF
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 140424
Steel Part Number Threads P1 Threads P2 A B
2254-2-2S 1/8-27 1/8-27 0.70" 0.72"
2254-4-4S 1/4-18 1/4-18 0.88" 1.09"
2254-4-6S 1/4-18 3/8-18 - -
2254-4-8S 1/4-18 1/2-14 - -
2254-6-6S 3/8-18 3/8-18 1.09" 1.53"
2254-6-8S 3/8-18 1/2-14 1.09" 1.47"
2254-8-8S 1/2-14 1/2-14 1.10" 1.47"
2254-12-12S 3/4-14 3/4-14 1.36" 2.03"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
