2332106-250 NYLOTUBE® by NewAge | Nylon-12 Semi-Rigid Grade Tubing | 0.150" ID x 1/4" OD x 0.050" Wall | Black | 250ft

2332106-250 NYLOTUBE® by NewAge | Nylon-12 Semi-Rigid Grade Tubing | 0.150" ID x 1/4" OD x 0.050" Wall | Black | 250ft

Save $102.22 Save $102.22
$255.55
$255.55 - $255.55
$255.55
$153.33
$153.33 - $153.33
$153.33

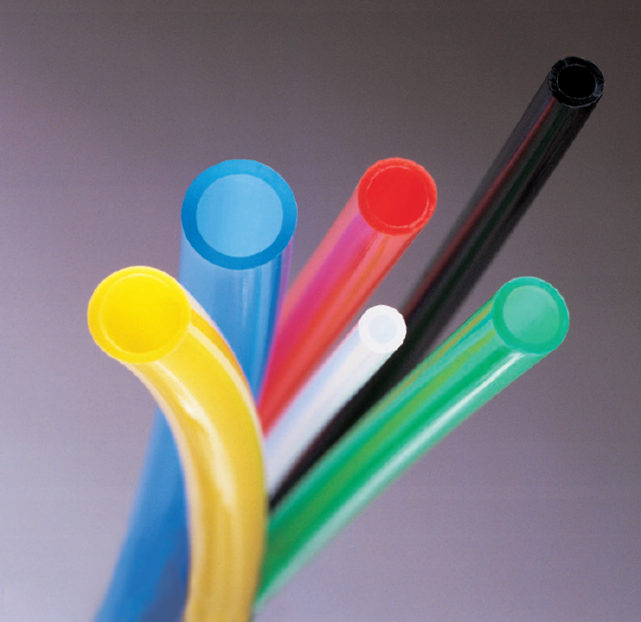

NewAge Industries - NYLOTUBE® - Nylon-12 Semi-Rigid Grade Tubing

Package Quantity: 250 FT

Specifications for Variant SKU: 2332106-250 NewAge | 250 |
Brand: Nylotube
Hose Color(s): Black
Internal Diameter: 0.15in
Outer Diameter: 0.25in
Tubing Construction: Nylon
Applicable Specs & Approvals: BPA Free, Conflict Mineral Free, Latex Free, Phthalate Free, REACH, RoHS
Application: Air Conditioning, Air Lines, Chemicals, Compressed Air, Coolant,
Dispensing Equipment, Fuel & Oil, Grease & Lubrication Lines, Hydraulics,
Instrumentation, Laboratory, Paint Supply, Refrigeration		 Tube: Nylon
Reinforcement: Unreinforced Cover: N/A
Temperature Range: 212°F Color: Black & Natural
Opacity: Opaque Specifications BPA Free, Conflict Mineral Free,
Latex Free, Phthalate Free, REACH, RoHS
Other Features:
  • Very low moisture absorption: 1.4% maximum (at 73°F)
  • Will not become brittle or swell because of water
  • Excellent resistance to flexural fatigue, tube vibration, and movement
  • Lightweight with excellent bend radii and pressure ratings
  • Resists crushing, abrasion, and cracking
  • Heat and light stabilized
  • Free of BPA, conflict minerals, phthalates and latex
  • REACH and RoHS compliant
Notes:
  • NYLOTUBE® is resistant to most solvents, alkalies, oils, greases, petroleum products, fungi, and molds. It has generally good resistance to dilute mineral and organic acids, but in cases where NYLOTUBE® is being used in critical applications or aggressive environments, in-plant tests are always recommended.
  • NYLOTUBE® is manufactured from heat and light-stabilized materials.
  • Nylon brittleness is usually caused by cycles of water absorption and depletion. NYLOTUBE® is not dependent on moisture for flexibility, so life expectancy is increased and the risk of brittleness greatly reduced.
Physical Properties**
NYLON-12 Semi-Rigid Grade Flexible Grade
Hardness, Shore A ±5 72 63
Tensile Strength, psi 7252 7252
Elongation at Break, % 200 200
Brittle Temperature -94°F -94°F
Max. Operating Temperature 230°F 158°F

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Part Number Inside Diameter
(in.)		 Outside Diameter
(in.)		 Wall Thickness
(in.)		 Length Working PSI (at 70°F) Bend Radius Colors Weight
(lbs/100ft)
2330216-500 0.075" 0.125" (1/8") 0.025" 500 ft 1000 PSI 1/4" Black 0.35 Lbs
2330265-500 0.075" 0.125" (1/8") 0.025" 500 ft 1000 PSI 1/4" Natural 0.35 Lbs
2330531-500 0.095" 0.125" (1/8") 0.015" 500 ft 400 PSI 3/8" Black 0.25 Lbs
2330580-500 0.095" 0.125" (1/8") 0.015" 500 ft 400 PSI 3/8" Natural 0.25 Lbs
2330846-250 0.086" 0.156" (5/32") 0.035" 250 ft 1120 PSI 1/4" Black 0.6 Lbs
2331210-250 0.106" 0.156" (5/32") 0.025" 250 ft 730 PSI 3/8" Natural 0.47 Lbs
2331476-250 0.107" 0.188" (3/16") 0.040" 250 ft 980 PSI 3/8" Black 0.84 Lbs
2331840-250 0.137" 0.188" (3/16") 0.025" 250 ft 530 PSI 1/2" Natural 0.58 Lbs
2332106-250 0.150" 0.250" (1/4") 0.050" 250 ft 1000 PSI 1/2" Black 1.39 Lbs
2332155-250 0.150" 0.250" (1/4") 0.050" 250 ft 1000 PSI 1/2" Natural 1.39 Lbs
2332470-100 0.190" 0.250" (1/4") 0.030" 100 ft 500 PSI 1" Natural 0.95 Lbs
2332736-100 0.182" 0.313" (5/16") 0.065" 100 ft 1165 PSI 7/8" Black 2.2 Lbs
2333100-100 0.242" 0.313" (5/16") 0.035" 100 ft 465 PSI 1-1/4" Natural 1.35 Lbs
2333366-100 0.225" 0.375" (3/8") 0.075" 100 ft 1180 PSI 1" Black 3.2 Lbs
2333415-100 0.225" 0.375" (3/8") 0.075" 100 ft 1180 PSI 1" Natural 3.2 Lbs
2333730-100 0.295" 0.375" (3/8") 0.040" 100 ft 530 PSI 1-1/2" Natural 1.92 Lbs

Use bend radius only as a guide
