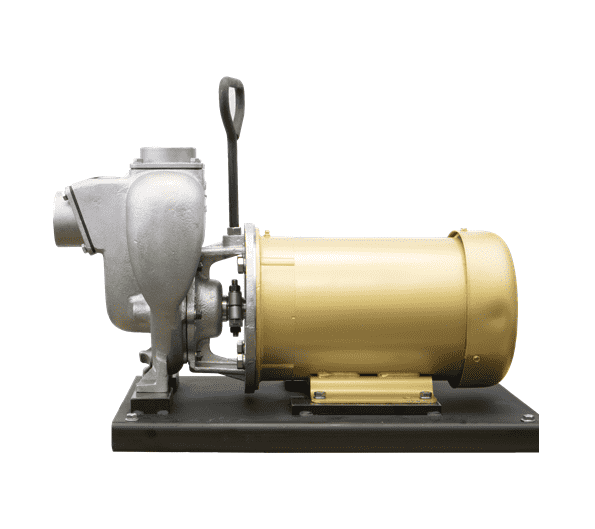

234PE5SS by Banjo | Centrifugal Pumps | 2" Pump with 5.0 HP Three Phase Electric Motor | Stainless Steel

234PE5SS by Banjo | Centrifugal Pumps | 2" Pump with 5.0 HP Three Phase Electric Motor | Stainless Steel

Save $3,422.80 Save $3,422.80
$8,557.00
$8,557.00 - $8,557.00
$8,557.00
$5,134.20
$5,134.20 - $5,134.20
$5,134.20

Banjo Self-Priming Centrifugal Pumps
2" Stainless Steel Pumps with Electric Engines & Replacement Parts
Specifications for Variant SKU: 234PE5SS Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Features:
  • Complete pump with efficient industrial electric motors
  • Stainless steel construction for rugged dependable service
  • Stainless steel shaft sleeve to protect engine shaft
  • Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber
  • Replaceable inlet and outlet flanges
  • Dynamically balanced impeller
Motor Features:
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings, locked drive end bearing
  • Heavy gauge steel frame
  • Motors wound with inverter spike resistance magnet wire
  • Mounted complete on heavy duty cast iron base plate
  • 230 V Motors
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower
2" Stainless Steel Pumps with Gas Engines
234PE5SS 2" SS Pump with 5.0 HP Three Phase Electric Motor 5.0 HP (Made to Order)
Polyethylene Suction Basket Strainer
300SBS 3" Female Thread Poly Basket N/A N/A
Replacement Parts for 234PE5SS
Item Part Number Description Quantity Required
1 17000SS Outlet Flange 1
2 17002SS Inlet Flange 1
3 17446SS C-Flange Adapter 1
4 17406 Impeller Shaft 1
5 17408SS Impeller 1
6 17009B 5/8" Impeller Nut 1
7 17010 1/2" Hex Nut 1
8 17011SS Wear Plate 1
9 17014 FKM (viton type) Outlet Gasket 1
10 17017 FKM (viton type) Gasket & Check Valve 1
11 17018 Adapter Gasket 1
12 17019 Bolt 8
13 15022 Handle 1
14 18129 Clamp Assembly with Key 1
15 17026SS Pump Housing 1
16 V10118 5/16" Lock Washer 20
17 17042 Housing Stud 6
18 V10119 Hex Nut 8
19 17449 Bolt 4
20 18058 Washer 4
21 18025SS Seal Assembly 1
22 17701 Base Plate Assembly 1
23 17704 Bolt 4
24 V20018 3/8" Lock Washer 4
25 17130SS 5/16-18 x 1.00" FHSCS, 316 SS 2
26 BEM51 Electric Motor 1
27 12777SS 1/2" Stainless Steel Plug 1
28 UV15163 O-Ring FKM (viton type) 1
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
