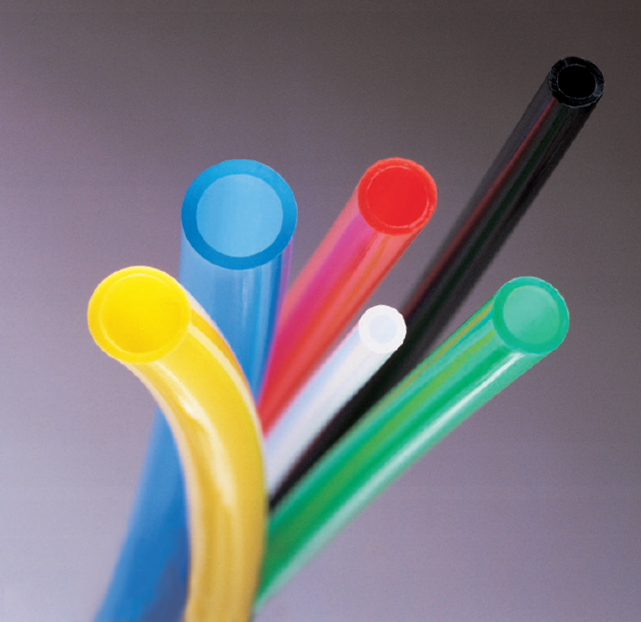

2361170-100 NYLOTUBE® by NewAge | Nylon-12 (Metric) Flexible Grade Tubing | 6mm ID x 8mm OD x 1mm Wall | Blue | 100ft

Save $39.11

$97.78

$97.78 - $97.78

$97.78

$58.67

$58.67 - $58.67

$58.67

PRODUCT DESCRIPTION

NewAge Industries - NYLOTUBE® - Nylon-12 Metric Sizes - Flexible Grade Tubing

Package Quantity: 100 FT

Specifications for Variant SKU: 2361170-100 NewAge \| 100 \|
Brand:	Nylotube
Hose Color(s):	Blue
Internal Diameter:	6mm
Outer Diameter:	8mm
Tubing Construction:	Nylon
Applicable Specs & Approvals:	BPA Free, Conflict Mineral Free, Latex Free, Phthalate Free, REACH, RoHS

SPECIFICATIONS

Other Features:
Application:	Air Conditioning, Air Lines, Chemicals, Compressed Air, Coolant, Dispensing Equipment, Fuel & Oil, Grease & Lubrication Lines, Hydraulics, Instrumentation, Laboratory, Paint Supply, Refrigeration	Tube:	Nylon
Reinforcement:	Unreinforced	Cover:	N/A
Temperature Range:	158°F	Color:	Multi
Opacity:	Opaque	Specifications	BPA Free, Conflict Mineral Free, Latex Free, Phthalate Free, REACH, RoHS
Very low moisture absorption: 1.4% maximum (at 73°F) Will not become brittle or swell because of water Excellent resistance to flexural fatigue, tube vibration, and movement Lightweight with excellent bend radii and pressure ratings Resists crushing, abrasion, and cracking Heat and light stabilized Free of BPA, conflict minerals, phthalates and latex REACH and RoHS compliant
Notes:
NYLOTUBE® is resistant to most solvents, alkalies, oils, greases, petroleum products, fungi, and molds. It has generally good resistance to dilute mineral and organic acids, but in cases where NYLOTUBE® is being used in critical applications or aggressive environments, in-plant tests are always recommended. NYLOTUBE® is manufactured from heat and light-stabilized materials. Nylon brittleness is usually caused by cycles of water absorption and depletion. NYLOTUBE® is not dependent on moisture for flexibility, so life expectancy is increased and the risk of brittleness greatly reduced.

Physical Properties**
NYLON-12	Semi-Rigid Grade	Flexible Grade
Hardness, Shore A ±5	72	63
Tensile Strength, psi	7252	7252
Elongation at Break, %	200	200
Brittle Temperature	-94°F	-94°F
Max. Operating Temperature	230°F	158°F

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Part Number	Inside Diameter (mm)	Outside Diameter (mm)	Wall Thickness (mm)	Length	Working PSI (at 70°F)	Bend Radius	Colors	Weight (lbs/100ft)
2360211-100	2.5mm	4mm	0.75mm	100 ft	480 PSI	8mm	Black	0.53 Lbs
2360225-100	2.5mm	4mm	0.75mm	100 ft	480 PSI	8mm	Blue	0.53 Lbs
2360267-100	2.5mm	4mm	0.75mm	100 ft	480 PSI	8mm	Natural	0.53 Lbs
2360295-100	2.5mm	4mm	0.75mm	100 ft	480 PSI	8mm	Red	0.53 Lbs
2360309-100	2.5mm	4mm	0.75mm	100 ft	480 PSI	8mm	Yellow	0.53 Lbs

2360841-100	4mm	6mm	1mm	100 ft	430 PSI	13mm	Black	1.06 Lbs
2360855-100	4mm	6mm	1mm	100 ft	430 PSI	13mm	Blue	1.06 Lbs
2360897-100	4mm	6mm	1mm	100 ft	430 PSI	13mm	Natural	1.06 Lbs
2360925-100	4mm	6mm	1mm	100 ft	430 PSI	13mm	Red	1.06 Lbs

2361156-100	6mm	8mm	1mm	100 ft	315 PSI	33mm	Black	1.49 Lbs
2361170-100	6mm	8mm	1mm	100 ft	315 PSI	33mm	Blue	1.49 Lbs
2361212-100	6mm	8mm	1mm	100 ft	315 PSI	33mm	Natural	1.49 Lbs
2361240-100	6mm	8mm	1mm	100 ft	315 PSI	33mm	Red	1.49 Lbs

2361471-100	8mm	10mm	1mm	100 ft	265 PSI	50mm	Black	2 Lbs
2361484-100	8mm	10mm	1mm	100 ft	265 PSI	50mm	Blue	2 Lbs
2361527-100	8mm	10mm	1mm	100 ft	265 PSI	50mm	Natural	2 Lbs

2361842-100	9mm	12mm	1.5mm	100 ft	300 PSI	45mm	Natural	3.32 Lbs

Use bend radius only as a guide
