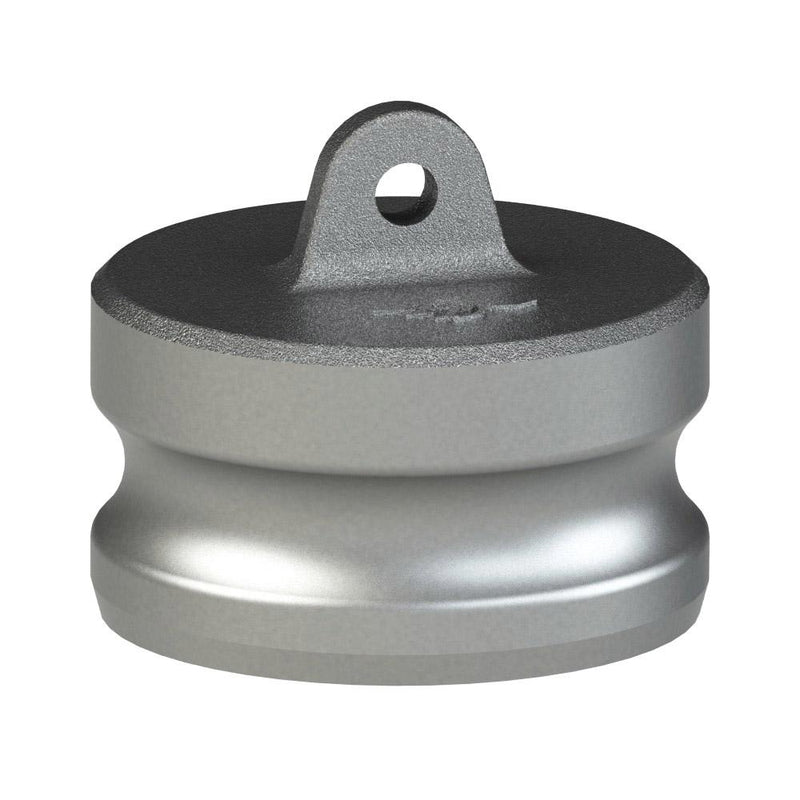

2401230 (30W) by PT-Coupling | Cam & Groove Dust Plug | Type W | 3" Adapter | Carbon Steel

2401230 (30W) by PT-Coupling | Cam & Groove Dust Plug | Type W | 3" Adapter | Carbon Steel

Save $11.78 Save $11.78
$105.99
$105.99 - $105.99
$105.99
$94.21
$94.21 - $94.21
$94.21

PT Coupling
Cam and Groove (Camlock) Dust Plug | Type W | Carbon Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 2401230 PT-Coupling
Cam Type: Type DP
Ends Configuration: 3in Male Cam & Groove
Material(s): Hard Coat Aluminum
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Couplings not interchangeable in the industry are sizes 8" through 12"
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
10W 2401210 1" 1.35" 0.96" 1.19" 250 PSI
15W 2401215 1-1/2" 2.06" 0.50" 1.48" 250 PSI
20W 2401220 2" 1.90" 0.70" 1.75" 250 PSI
30W 2401230 3" 2.03" 1.00" 1.84" 200 PSI
40W 2401240 4" 2.10" 1.00" 1.87" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
