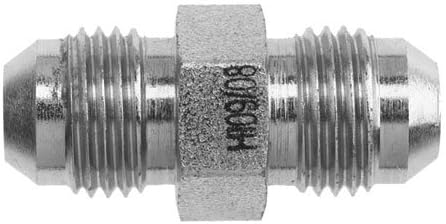

2403-10-06-SS by Brennan Inc. | -10 Male JIC x -06 Male JIC | Straight | Stainless Steel

Name: 2403-10-06-SS by Brennan Inc. | -10 Male JIC x -06 Male JIC | Straight | Stainless Steel
Brand: Brennan Inc
SKU: 2403-10-06-SS Brennan
Price: 111.12 USD
Availability: InStock

$87.57 - $87.57

$87.57

$111.12

$111.12 - $111.12

$111.12

Brennan Inc.
Tube Fittings & Adapters: 2403 - Male JIC x Male JIC Straight

Quantity

Specifications for Variant SKU: 2403-10-06-SS Brennan
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male JIC, 3/8in Male JIC, Some Ends Match
Material(s):	Stainless Steel


Part Number	Material	B1 Tube OD	B2 Tube OD	B1 SAE 37°	B2 SAE 37°	C Hex	B1 Drill	B2 Drill	L Length
2403-04-03	Steel	1/4"	3/16"	7/16-20"	3/8-24"	0.500"	0.172"	0.125"	1.30"
2403-04-04	Steel	1/4"	1/4"	7/16-20"	7/16-20"	0.500"	0.172"	0.172"	1.37"
2403-05-05	Steel	5/16"	5/16"	1/2-20"	1/2-20"	0.562"	0.234"	0.234"	1.37"
2403-06-04	Steel	3/8"	1/4"	9/16-18"	7/16-20"	0.625"	0.297"	0.172"	1.40"
2403-06-05	Steel	3/8"	5/16"	9/16-18"	1/2-20"	0.625"	0.234"	0.234"	1.40"
2403-06-06	Steel	3/8"	3/8"	9/16-18"	9/16-18"	0.625"	0.297"	0.297"	1.41"
2403-08-08	Steel	1/2"	1/2"	3/4-16"	3/4-16"	0.812"	0.391"	0.391"	1.62"
2403-10-04	Steel	5/8"	1/4"	7/8-14"	7/16-20"	0.937"	0.484"	0.172"	1.67"
2403-10-10	Steel	5/8"	5/8"	7/8-14"	7/8-14"	0.937"	0.484"	0.484"	1.88"
2403-12-06	Steel	3/4"	3/8"	1-1/16-12"	9/16-18"	1.125"	0.609"	0.297"	1.85"
2403-12-08	Steel	3/4"	1/2"	1-1/16-12"	3/4-16"	1.125"	0.609"	0.391"	1.95"
2403-12-10	Steel	3/4"	5/8"	1-1/16-12"	7/8-14"	1.125"	0.609"	0.484"	2.05"
2403-12-12	Steel	3/4"	3/4"	1-1/16-12"	1-1/16-12"	1.125"	0.609"	0.609"	2.16"
2403-14-12	Steel	7/8"	3/4"	1-3/16-12"	1-1/16-12"	1.250"	0.719"	0.609"	2.18"
2403-14-14	Steel	7/8"	7/8"	1-3/16-12"	1-3/16-12"	1.250"	0.719"	0.719"	2.21"
2403-16-06	Steel	1"	3/8"	1-5/16-12"	9/16-18"	1.375"	0.844"	0.297"	1.89"
2403-16-08	Steel	1"	1/2"	1-5/16-12"	3/4-18"	1.375"	0.844"	0.391"	2.00"
2403-16-10	Steel	1"	5/8"	1-5/16-12"	7/8-14"	1.375"	0.844"	0.484"	2.10"
2403-16-12	Steel	1"	3/4"	1-5/16-12"	1-1/16-12"	1.375"	0.844"	0.609"	2.20"
2403-16-14	Steel	1"	7/8"	1-5/16-12"	1-3/16-12"	1.375"	0.844"	0.719"	2.23"
2403-16-16	Steel	1"	1"	1-5/16-12"	1-5/16-12"	1.375"	0.844"	0.844"	2.25"
2403-20-12	Steel	1-1/4"	3/4"	1-5/8-12"	1-1/16-12"	1.688"	1.078"	0.609"	2.34"
2403-20-16	Steel	1-1/4"	1"	1-5/8-12"	1-5/16-12"	1.688"	1.078"	0.844"	2.38"
2403-20-20	Steel	1-1/4"	1-1/4"	1-5/8-12"	1-5/8-12"	1.688"	1.078"	1.078"	2.43"
2403-24-12	Steel	1-1/2"	3/4"	1-7/8-12"	1-1/16-12"	2.000"	1.312"	0.609"	2.53"
2403-24-16	Steel	1-1/2"	1"	1-7/8-12"	1-5/16-12"	2.000"	1.312"	0.844"	2.58"
2403-24-20	Steel	1-1/2"	1-1/4"	1-7/8-12"	1-5/8-12"	2.000"	1.312"	1.078"	2.62"
2403-24-24	Steel	1-1/2"	1-1/2"	1-7/8-12"	1-7/8-12"	2.000"	1.312"	1.312"	2.75"
2403-32-12	Steel	2"	3/4"	2-1/2-12"	1-1/16-12"	2.625"	1.781"	0.609"	2.93"
2403-32-16	Steel	2"	1"	2-1/2-12"	1-5/16-12"	2.625"	1.781"	0.844"	2.98"
2403-32-20	Steel	2"	1-1/4"	2-1/2-12"	1-5/16-12"	2.625"	1.781"	1.078"	3.02"
2403-32-24	Steel	2"	1-1/2"	2-1/2-12"	1-7/8-1/2"	2.625"	1.781"	1.312"	3.15"
2403-32-32	Steel	2"	2"	2-1/2-12"	2-1/2-12"	2.625"	1.781"	1.781"	3.40"
2403-40-40	Steel	2-1/2"	2-1/2"	3-12"	3-12"	3.250"	2.323"	2.323"	2.95"
2403-48-48	Steel	3"	3"	3-1/2-12"	3-1/2-12"	3.750"	2.818"	2.818"	3.40"

2403-03-03-B	Brass	3/16"	3/16"	3/8-24"	3/8-24"	0.438"	0.125"	1.25"	1.23"
2403-04-04-B	Brass	1/4"	1/4"	7/16-20"	7/16-20"	0.500"	0.172"	0.172"	1.37"
2403-05-05-B	Brass	5/16"	5/16"	1/2-20"	1/2-20"	0.562"	0.234"	0.234"	1.37"
2403-06-06-B	Brass	3/8"	3/8"	9/16-18"	9/16-18"	0.625"	0.297"	0.297"	1.41"
2403-08-08-B	Brass	1/2"	1/2"	3/4-16"	3/4-16"	0.812"	0.391"	0.391"	1.62"
2403-10-10-B	Brass	5/8"	5/8"	7/8-14"	7/8-14"	0.937"	0.484"	0.484"	1.88"
2403-12-12-B	Brass	3/4"	3/4"	1-1/16-12"	1-1/16-12"	1.125"	0.609"	0.609"	2.16"
2403-16-16-B	Brass	1"	1"	1-5/16-12"	1-5/16-12"	1.375"	0.844"	0.844"	2.25"

2403-02-02-SS	Stainless Steel	1/8"	1/8"	5/16-24"	5/16-24"	0.438"	0.062"	0.062"	1.17"
2403-03-02-SS	Stainless Steel	3/16"	3/16"	3/8-24"	5/16-24"	0.438"	0.125"	0.062"	1.20"
2403-03-03-SS	Stainless Steel	3/16"	3/16"	3/8-24"	3/8-24"	0.438"	0.125"	1.25"	1.23"
2403-04-02-SS	Stainless Steel	1/4"	1/8"	7/16-20"	5/16-24"	0.500"	0.172"	0.062"	1.27"
2403-04-03-SS	Stainless Steel	1/4"	3/16"	7/16-20"	3/8-24"	0.500"	0.172"	0.125"	1.30"
2403-04-04-SS	Stainless Steel	1/4"	1/4"	7/16-20"	7/16-20"	0.500"	0.172"	0.172"	1.37"
2403-05-04-SS	Stainless Steel	5/16"	1/4"	1/2-20"	7/16-20"	0.562"	0.172"	0.172"	1.37"
2403-05-05-SS	Stainless Steel	5/16"	5/16"	1/2-20"	1/2-20"	0.562"	0.234"	0.234"	1.37"
2403-06-04-SS	Stainless Steel	3/8"	1/4"	9/16-18"	7/16-20"	0.625"	0.297"	0.172"	1.40"
2403-06-05-SS	Stainless Steel	3/8"	5/16"	9/16-18"	1/2-20"	0.625"	0.234"	0.234"	1.40"
2403-06-06-SS	Stainless Steel	3/8"	3/8"	9/16-18"	9/16-18"	0.625"	0.297"	0.297"	1.41"
2403-08-04-SS	Stainless Steel	1/2"	1/4"	3/4-16"	7/16-20"	0.812"	0.391"	0.172"	1.51"
2403-08-06-SS	Stainless Steel	1/2"	3/8"	3/4-16"	9/16-18"	0.812"	0.391"	0.297"	1.52"
2403-08-08-SS	Stainless Steel	1/2"	1/2"	3/4-16"	3/4-16"	0.812"	0.391"	0.391"	1.62"
2403-10-04-SS	Stainless Steel	5/8"	1/4"	7/8-14"	7/16-20"	0.937"	0.484"	0.172"	1.67"
2403-10-06-SS	Stainless Steel	5/8"	3/8"	7/8-14"	9/16-18"	0.937"	0.297"	0.297"	1.68"
2403-10-08-SS	Stainless Steel	5/8"	1/2"	7/8-14"	3/4-16"	0.937"	0.484"	0.391"	1.78"
2403-10-10-SS	Stainless Steel	5/8"	5/8"	7/8-14"	7/8-14"	0.937"	0.484"	0.484"	1.88"
2403-12-06-SS	Stainless Steel	3/4"	3/8"	1-1/16-12"	9/16-18"	1.125"	0.609"	0.297"	1.85"
2403-12-08-SS	Stainless Steel	3/4"	1/2"	1-1/16-12"	3/4-16"	1.125"	0.609"	0.391"	1.95"
2403-12-10-SS	Stainless Steel	3/4"	5/8"	1-1/16-12"	7/8-14"	1.125"	0.609"	0.484"	2.05"
2403-12-12-SS	Stainless Steel	3/4"	3/4"	1-1/16-12"	1-1/16-12"	1.125"	0.609"	0.609"	2.16"
2403-16-04-SS	Stainless Steel	1"	1/4"	1-5/16-12"	7/16-20"	1.375"	0.844"	0.172"	1.89"
2403-16-08-SS	Stainless Steel	1"	1/2"	1-5/16-12"	3/4-18"	1.375"	0.844"	0.391"	2.00"
2403-16-10-SS	Stainless Steel	1"	5/8"	1-5/16-12"	7/8-14"	1.375"	0.844"	0.484"	2.10"
2403-16-12-SS	Stainless Steel	1"	3/4"	1-5/16-12"	1-1/16-12"	1.375"	0.844"	0.609"	2.20"
2403-16-16-SS	Stainless Steel	1"	1"	1-5/16-12"	1-5/16-12"	1.375"	0.844"	0.844"	2.25"
2403-20-16-SS	Stainless Steel	1-1/4"	1"	1-5/8-12"	1-5/16-12"	1.688"	1.078"	0.844"	2.38"
2403-20-20-SS	Stainless Steel	1-1/4"	1-1/4"	1-5/8-12"	1-5/8-12"	1.688"	1.078"	1.078"	2.43"
2403-24-16-SS	Stainless Steel	1-1/2"	1"	1-7/8-12"	1-5/16-12"	2.000"	1.312"	1.844"	2.58"
2403-24-20-SS	Stainless Steel	1-1/2"	1-1/4"	1-7/8-12"	1-5/8-12"	2.000"	1.312"	1.078"	2.62"
2403-24-24-SS	Stainless Steel	1-1/2"	1-1/2"	1-7/8-12"	1-7/8-12"	2.000"	1.312"	1.312"	2.75"
2403-32-24-SS	Stainless Steel	2"	1-1/2"	2-1/2-12"	1-7/8-1/2"	2.625"	1.781"	1.312"	3.15"
2403-32-32-SS	Stainless Steel	2"	2"	2-1/2-12"	2-1/2-12"	2.625"	1.781"	1.781"	3.40"
2403-40-40-SS	Stainless Steel	2-1/2"	2-1/2"	3-12"	3-12"	3.250"	2.323"	2.323"	2.95"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
