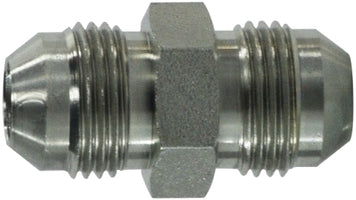

24031010 (2403-10-10) Midland Hydraulic JIC Tube Union - 7/8-14 Male JIC 37° Flare x 7/8-14 Male JIC 37° Flare - Steel

24031010 by Midland | Hydraulic JIC Tube Union | 7/8-14 Male JIC 37° Flare x 7/8-14 Male JIC 37° Flare | Steel

Save $1.93 Save $1.93
$4.83
$4.83 - $4.83
$4.83
$2.90
$2.90 - $2.90
$2.90

Midland Industries
Hydraulic Adapters: JIC Tube Union - Steel

Inventory @ Manufacturers Warehouse: 152 Units
Specifications for Variant SKU: 24031010 Midland
Shape (Orientation): Straight
Ends Configuration: 5/8in Male JIC, 5/8in Male JIC, Some Ends Match
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards, Applicable Military Standards
Specifications:
  • SAE 070101
  • MS 51501
Technical Info:
Crossover Series:
2403 2027 HTX 1204 C5305
Part Number Male JIC 37° Flare
Size (Side 1)		 Male JIC 37° Flare
Thread (Side 1)		 Male JIC 37° Flare
Size (Side 2)		 Male JIC 37° Flare
Thread (Side 2)
240322
(2403-2-2)		 1/8" 5/16-24 1/8" 5/16-24
240333
(2403-3-3)		 3/16" 3/8-24 3/16" 3/8-24
2403-04-02 1/4" 7/16-20 1/8" 5/16-24
240343 1/4" 7/16-20 3/16" 3/8-24
240344
(2403-4-4)		 1/4" 7/16-20 1/4" 7/16-20
2403-05-04 5/16" 1/2-20 1/4" 7/16-20
240355
(2403-5-5)		 5/16" 1/2-20 5/16" 1/2-20
240366
(2403-6-6)		 3/8" 9/16-18 3/8" 9/16-18
240364
(2403-6-4)		 3/8" 9/16-18 1/4" 7/16-20
240384 1/2" 3/4-16 1/4" 7/16-20
240388
(2403-8-8)		 1/2" 3/4-16 1/2" 3/4-16
2403106 5/8" 7/8-14 3/8" 9/16-18
240386
(2403-8-6)		 1/2" 3/4-16 3/8" 9/16-18
24031010
(2403-10-10)		 5/8" 7/8-14 5/8" 7/8-14
2403126 3/4" 1-1/16-12 3/8" 9/16-18
2403108
(2403-10-8)		 5/8" 7/8-14 1/2" 3/4-16
24031212
(2403-12-12)		 3/4" 1-1/16-12 3/4" 1-1/16-12
2403128
(2403-12-8)		 3/4" 1-1/16-12 1/2" 3/4-16
24031210
(2403-12-10)		 3/4" 1-1/16-12 5/8" 7/8-14
24031414
(2403-14-14)		 7/8" 1-3/16-12 7/8" 1-3/16-12
2403-16-08 1" 1-5/16-12 1/2" 3/4-16
24031616
(2403-16-16)		 1" 1-5/16-12 1" 1-5/16-12
24031612
(2403-16-12)		 1" 1-5/16-12 3/4" 1-1/16-12
24032016 1-1/4" 1-5/8-12 1" 1-5/16-12
24032020
(2403-20-20)		 1-1/4" 1-5/8-12 1-1/4" 1-5/8-12
2403-24-16 1-1/2" 1-7/8-12 1" 1-5/16-12
240324
(2403-24)		 1-1/2" 1-7/8-12 1-1/2" 1-7/8-12
240332
(2403-32)		 2" 2-1/2-12 2" 2-1/2-12
