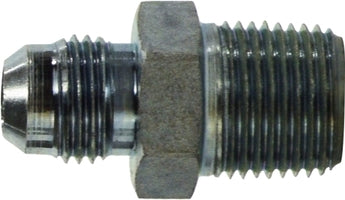

2404-20-32 by Midland | Hydraulic JIC Connector | 1-1/4" Male JIC 37° Flare x 2" Male Pipe | Steel

2404-20-32 by Midland | Hydraulic JIC Connector | 1-1/4" Male JIC 37° Flare x 2" Male Pipe | Steel

Save $18.33 Save $18.33
$45.83
$45.83 - $45.83
$45.83
$27.50
$27.50 - $27.50
$27.50

Midland Industries
Hydraulic Adapters: JIC Male Connector - Steel

Inventory @ Manufacturers Warehouse: 186 Units
Specifications for Variant SKU: 2404-20-32 Midland
Ends Configuration: 1-1/4in Male JIC, 2in Male NPT
Material(s): Steel
Specifications:
  • SAE 070102
  • MS 51500
Technical Info:
Crossover Series:
2404 2021R FTX 1202R C5205 816
Part Number Male JIC 37° Flare
Size		 Male JIC 37° Flare
(1)		 Male Pipe
(2)
240422
(2404-2-2)		 1/8" 5/16-24 1/8"
240432 3/16" 3/8-24 1/8"
240434 3/16" 3/8-24 1/4"
240442
(2404-4-2)		 1/4" 7/16-20 1/8"
240444
(2404-4-4)		 1/4" 7/16-20 1/4"
240446
(2404-4-6)		 1/4" 7/16-20 3/8"
240448
(2404-4-8)		 1/4" 7/16-20 1/2"
2404-04-12 1/4" 7/16-20 3/4"
240452 5/16" 1/2-20 1/8"
240454 5/16" 1/2-20 1/4"
240456 5/16" 1/2-20 3/8"
2404-05-08 5/16" 1/2-20 1/2"
240462
(2404-6-2)		 3/8" 9/16-18 1/8"
240464
(2404-6-4)		 3/8" 9/16-18 1/4"
240466
(2404-6-6)		 3/8" 9/16-18 3/8"
240468
(2404-6-8)		 3/8" 9/16-18 1/2"
2404612 3/8" 9/16-18 3/4"
2404-06-16 3/8" 9/16-18 1"
2404-08-02 1/2" 3/4-16 1/8"
240484
(2404-8-4)		 1/2" 3/4-16 1/4"
240486
(2404-8-6)		 1/2" 3/4-16 3/8"
240488
(2404-8-8)		 1/2" 3/4-16 1/2"
2404812
(2404-8-12)		 1/2" 3/4-16 3/4"
2404816
(2404-8-16)		 1/2" 3/4-16 1"
2404104 5/8" 7/8-14 1/4"
2404106 5/8" 7/8-14 3/8"
2404108
(2404-10-8)		 5/8" 7/8-14 1/2"
24041012
(2404-10-12)		 5/8" 7/8-14 3/4"
24041016 5/8" 7/8-14 1"
2404126
(2404-12-6)		 3/4" 1-1/16-12 3/8"
2404128
(2404-12-8)		 3/4" 1-1/16-12 1/2"
24041212
(2404-12-12)		 3/4" 1-1/16-12 3/4"
2404-12-24 3/4" 1-1/16-12 1-1/2"
24041412 7/8" 1-13/16-12 3/4"
2404-16-08 1" 1-5/16-12 1/2"
24041216
(2404-12-16)		 3/4" 1-1/16-12 1"
24041612
(2404-16-12)		 1" 1-5/16-12 3/4"
24041616
(2404-16-16)		 1" 1-5/16-12 1"
24041620 1" 1-5/16-12 1-1/4"
24041624 1" 1-5/16-12 1-1/2"
24042012 1-1/4" 1-5/8-12 3/4"
24042016
(2404-20-16)		 1-1/4" 1-5/8-12 1"
24042020
(2404-20-20)		 1-1/4" 1-5/8-12 1-1/4"
24042024 1-1/4" 1-5/8-12 1-1/2"
2404-20-32 1-1/4" 1-5/8-12 2"
24042416
(2404-24-16)		 1-1/2" 1-7/8-12 1"
24042420
(2404-24-20)		 1-1/2" 1-7/8-12 1-1/4"
24042424
(2404-24-24)		 1-1/2" 1-7/8-12 1-1/2"
24042432 1-1/2" 1-7/8-12 2"
24043216 2" 2-1/2-12 1"
24043220 2" 2-1/2-12 1-1/4"
24043224
(2404-32-24)		 2" 2-1/2-12 1-1/2"
24043232
(2404-32-32)		 2" 2-1/2-12 2"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
