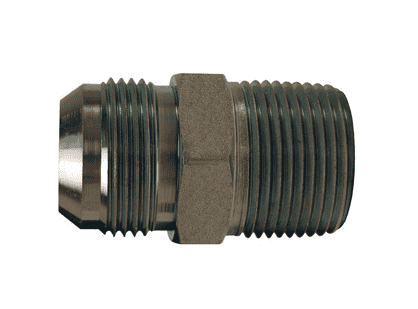

2404-8-6 Dixon Zinc Plated Steel 3/4"-16 Male 37 deg. Flare JIC x 3/8"-18 Male NPTF

2404-8-6 Dixon Valve Zinc Plated Steel 3/4"-16 Male 37 deg. Flare JIC x 3/8"-18 Male NPTF

Save $0.23 Save $0.23
$2.07
$2.07 - $2.07
$2.07
$1.84
$1.84 - $1.84
$1.84

SAE / JIC Fittings - Male 37 deg. Flare JIC x Male NPTF - Zinc Plated Steel
Specifications for Variant SKU: 2404-8-6 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Male JIC, 3/8in Male NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male 37 deg. Flare JIC Male NPTF Working Pressure Weight (Lbs.)
2404-4-2 7/16"-20 1/8"-27 4500 PSI 0.0400
2404-4-4 7/16"-20 1/4"-18 4500 PSI 0.0500
2404-4-6 7/16"-20 3/8"-18 4000 PSI 0.0800
2404-4-8 7/16"-20 1/2"-18 3000 PSI 0.1400
2404-5-2 1/2"-20 1/8"-27 4000 PSI 0.0400
2404-6-2 9/16"-18 1/8"-27 4000 PSI 0.0400
2404-6-4 9/16"-18 1/4"-18 4000 PSI 0.0600
2404-6-6 9/16"-18 3/8"-18 4000 PSI 0.0950
2404-6-8 9/16"-18 1/2"-14 3000 PSI 0.1400
2404-8-4 3/4"-16 1/4"-18 4000 PSI 0.1140
2404-8-6 3/4"-16 3/8"-18 4000 PSI 0.1105
2404-8-8 3/4"-16 1/2"-14 3000 PSI 0.1800
2404-8-12 3/4"-16 3/4"-14 2500 PSI 0.2200
2404-10-8 7/8"-14 1/2"-14 3000 PSI 0.1900
2404-10-12 7/8"-14 3/4"-14 2500 PSI 0.2300
2404-12-8 1-1/16"-12 1/2"-14 3000 PSI 0.2800
2404-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.2700
2404-12-16 1-1/16"-12 1"-11-1/2 2000 PSI 0.3800
2404-16-12 1-5/16"-12 3/4"-14 2500 PSI 0.3600
2404-16-16 1-5/16"-12 1"-11-1/2 2000 PSI 0.4000
2404-20-20 1-5/8"-12 1-1/4"-11-1/2 1150 PSI 0.7400
2404-24-24 1-7/8"-12 1-1/2"-11-1/2 1000 PSI 1.0000
2404-32-32 2-1/2"-12 2"-11-1/2 1000 PSI 1.7200
