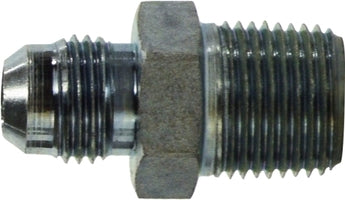

24043220 by Midland | Hydraulic JIC Connector | 2" Male JIC 37° Flare x 1-1/4" Male Pipe | Steel

Name: 24043220 by Midland | Hydraulic JIC Connector | 2" Male JIC 37° Flare x 1-1/4" Male Pipe | Steel
Brand: Midland Industries
SKU: 24043220 Midland
Price: 20.0 USD
Availability: InStock

Save $10.68

$30.68

$30.68 - $30.68

$30.68

$20.00

$20.00 - $20.00

$20.00

Midland Industries
Hydraulic Adapters: JIC Male Connector - Steel

Specifications for Variant SKU: 24043220 Midland
Ends Configuration:	2in Male JIC, 1-1/4in Male NPT
Material(s):	Steel

Specifications:
SAE 070102 MS 51500
Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
2404	2021R	FTX	1202R	C5205	816


Part Number	Male JIC 37° Flare Size	Male JIC 37° Flare (1)	Male Pipe (2)
240422 (2404-2-2)	1/8"	5/16-24	1/8"
240432	3/16"	3/8-24	1/8"
240434	3/16"	3/8-24	1/4"
240442 (2404-4-2)	1/4"	7/16-20	1/8"
240444 (2404-4-4)	1/4"	7/16-20	1/4"
240446 (2404-4-6)	1/4"	7/16-20	3/8"
240448 (2404-4-8)	1/4"	7/16-20	1/2"
2404-04-12	1/4"	7/16-20	3/4"
240452	5/16"	1/2-20	1/8"
240454	5/16"	1/2-20	1/4"
240456	5/16"	1/2-20	3/8"
2404-05-08	5/16"	1/2-20	1/2"
240462 (2404-6-2)	3/8"	9/16-18	1/8"
240464 (2404-6-4)	3/8"	9/16-18	1/4"
240466 (2404-6-6)	3/8"	9/16-18	3/8"
240468 (2404-6-8)	3/8"	9/16-18	1/2"
2404612	3/8"	9/16-18	3/4"
2404-06-16	3/8"	9/16-18	1"
2404-08-02	1/2"	3/4-16	1/8"
240484 (2404-8-4)	1/2"	3/4-16	1/4"
240486 (2404-8-6)	1/2"	3/4-16	3/8"
240488 (2404-8-8)	1/2"	3/4-16	1/2"
2404812 (2404-8-12)	1/2"	3/4-16	3/4"
2404816 (2404-8-16)	1/2"	3/4-16	1"
2404104	5/8"	7/8-14	1/4"
2404106	5/8"	7/8-14	3/8"
2404108 (2404-10-8)	5/8"	7/8-14	1/2"
24041012 (2404-10-12)	5/8"	7/8-14	3/4"
24041016	5/8"	7/8-14	1"
2404126 (2404-12-6)	3/4"	1-1/16-12	3/8"
2404128 (2404-12-8)	3/4"	1-1/16-12	1/2"
24041212 (2404-12-12)	3/4"	1-1/16-12	3/4"
2404-12-24	3/4"	1-1/16-12	1-1/2"
24041412	7/8"	1-13/16-12	3/4"
2404-16-08	1"	1-5/16-12	1/2"
24041216 (2404-12-16)	3/4"	1-1/16-12	1"
24041612 (2404-16-12)	1"	1-5/16-12	3/4"
24041616 (2404-16-16)	1"	1-5/16-12	1"
24041620	1"	1-5/16-12	1-1/4"
24041624	1"	1-5/16-12	1-1/2"
24042012	1-1/4"	1-5/8-12	3/4"
24042016 (2404-20-16)	1-1/4"	1-5/8-12	1"
24042020 (2404-20-20)	1-1/4"	1-5/8-12	1-1/4"
24042024	1-1/4"	1-5/8-12	1-1/2"
2404-20-32	1-1/4"	1-5/8-12	2"
24042416 (2404-24-16)	1-1/2"	1-7/8-12	1"
24042420 (2404-24-20)	1-1/2"	1-7/8-12	1-1/4"
24042424 (2404-24-24)	1-1/2"	1-7/8-12	1-1/2"
24042432	1-1/2"	1-7/8-12	2"
24043216	2"	2-1/2-12	1"
24043220	2"	2-1/2-12	1-1/4"
24043224 (2404-32-24)	2"	2-1/2-12	1-1/2"
24043232 (2404-32-32)	2"	2-1/2-12	2"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
