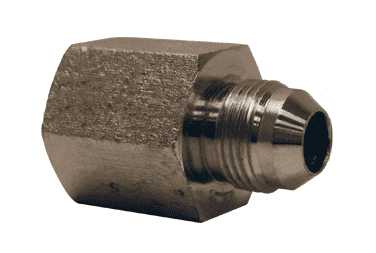

2405-16-16 Dixon Zinc Plated Steel 1-5/16"-12 Male 37 deg. Flare JIC x 1"-11-1/2 Female NPTF

2405-16-16 Dixon Valve Zinc Plated Steel 1-5/16"-12 Male 37 deg. Flare JIC x 1"-11-1/2 Female NPTF

Save $1.02 Save $1.02
$9.15
$9.15 - $9.15
$9.15
$8.13
$8.13 - $8.13
$8.13

SAE / JIC Fittings - Male 37 deg. Flare JIC x Female NPTF - Zinc Plated Steel
Specifications for Variant SKU: 2405-16-16 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Male JIC, 1in Female NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male 37 deg. Flare JIC Female NPTF Working Pressure Weight (Lbs.)
2405-4-2 7/16"-20 1/8"-27 4500 PSI 0.0400
2405-4-4 7/16"-20 1/4"-18 4500 PSI 0.0938
2405-6-4 9/16"-18 1/4"-18 4000 PSI 0.6250
2405-6-6 9/16"-18 3/8"-18 4000 PSI 0.0950
2405-6-8 9/16"-18 1/2"-14 3000 PSI 0.2500
2405-8-6 3/4"-16 3/8"-18 4000 PSI 0.1105
2405-8-8 3/4"-16 1/2"-14 3000 PSI 0.1760
2405-8-12 3/4"-16 3/4"-14 2500 PSI 0.3700
2405-10-8 7/8"-14 1/2"-14 3000 PSI 0.1890
2405-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.4300
2405-12-16 1-1/16"-12 1"-11-1/2 2000 PSI 0.6210
2405-16-16 1-5/16"-12 1"-11-1/2 2000 PSI 0.6600
2405-20-20 1-5/8"-12 1-1/4"-11-1/2 1150 PSI N/A
