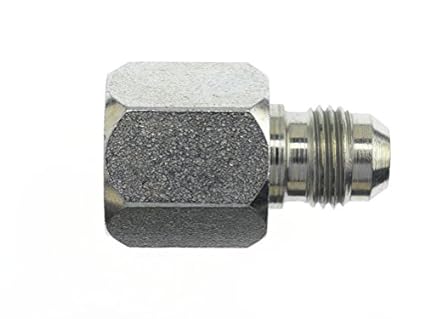

2406-06-04-2PC by Brennan Inc. | -06 Female JIC x -04 Male JIC | Straight | Reducer Nut & Insert | Steel

2406-06-04-2PC by Brennan Inc. | -06 Female JIC x -04 Male JIC | Straight | Reducer Nut & Insert | Steel

$4.34 - $4.34
$4.34
$5.51
$5.51 - $5.51
$5.51

Brennan Inc.
Tube Fittings & Adapters: 2406-2PC Female JIC x Male JIC Straight Reducer (Nut & Insert)
Specifications for Variant SKU: 2406-06-04-2PC Brennan
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIC, 1/4in Male JIC, Some Ends Match
Material(s): Steel
Part Number Material B1
Tube O.D.		 B2
Tube O.D.		 B1
SAE37°		 B2
SAE37°		 L1
Length		 C
Hex
2406-06-04-2PC Steel 3/8" 1/4" 9/16-18" 7/16-20" 0.970" 0.688"
2406-08-04-2PC Steel 1/2" 1/4" 3/4-16" 7/16-20" 1.000" 0.875"
2406-12-04-2PC Steel 3/4" 1/4" 1-1/16-12" 7/16-20" 1.090" 1.250"
2406-12-06-2PC Steel 3/4" 3/8" 1-1/16-12" 9/16-18" 1.090" 1.250"
2406-12-08-2PC Steel 3/4" 1/2" 1-1/16-12" 3/4-16" 1.190" 1.250"
2406-16-06-2PC Steel 1" 3/8" 1-5/16-12" 9/16-18" 1.220" 1.500"
2406-16-08-2PC Steel 1" 1/2" 1-5/16-12" 3/4-16" 1.270" 1.500"
2406-16-10-2PC Steel 1" 5/8" 1-5/16-12" 7/8-14" 1.380" 1.500"
2406-16-12-2PC Steel 1" 3/4" 1-5/16-12" 1-1/16-12" 1.470" 1.500"
2406-20-12-2PC Steel 1-1/4" 3/4" 1-5/8-12" 1-1/16-12" 1.530" 2.000"
2406-20-16-2PC Steel 1-1/4" 1" 1-5/8-12" 1-5/16-12" 1.590" 2.000"

2406-06-04-SS-2PC Stainless Steel 3/8" 1/4" 9/16-18" 7/16-20" 0.97" 0.688"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
